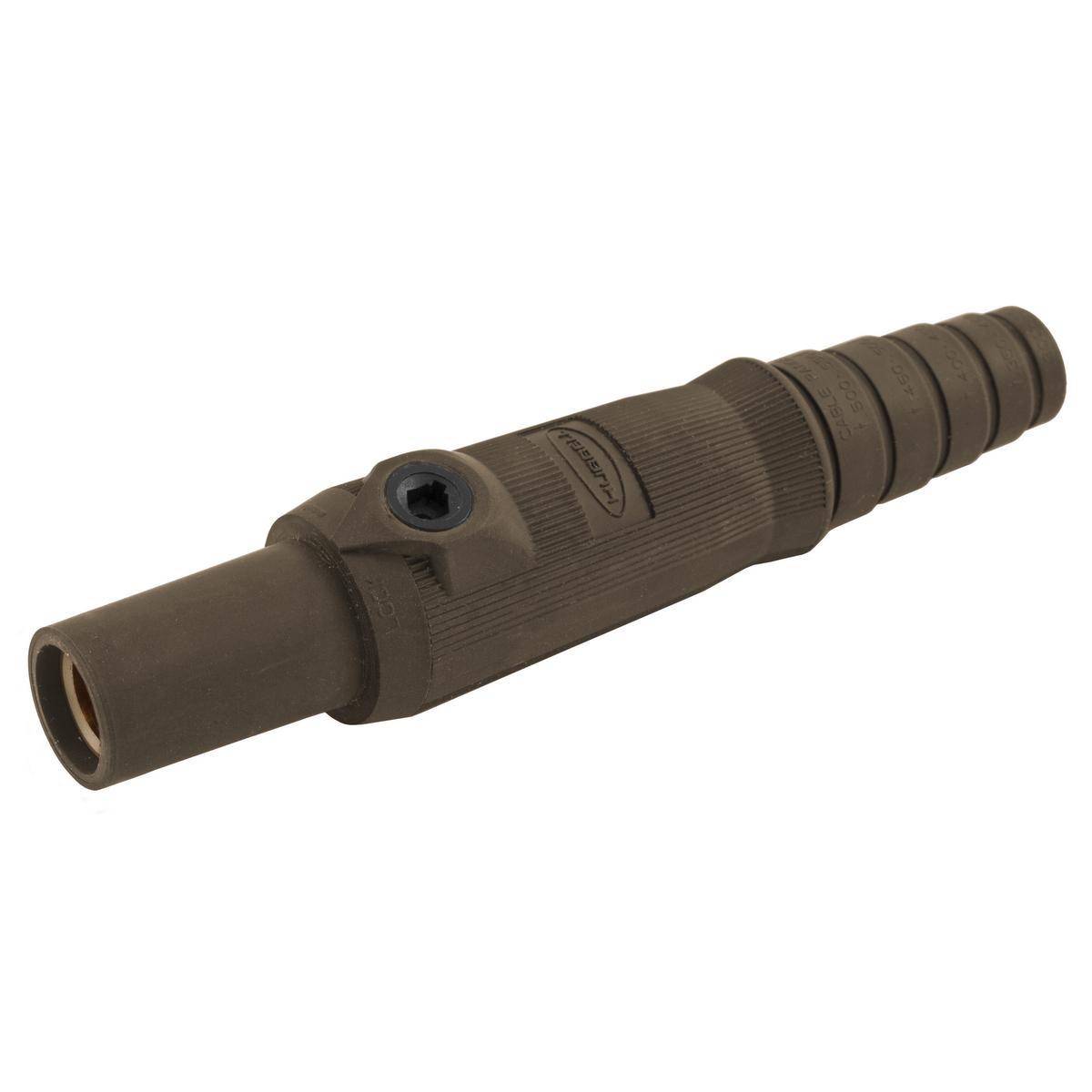

Wiring Device-Kellems HBL15FBN 15 Series Female Insulated In-Line Plug With SC/PPC Cord, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, Setscrew Connection
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL15FBN 15 Series Female Insulated In-Line Plug With SC/PPC Cord, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, Setscrew Connection

Short Description

Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 15 single pole plugs, single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. UL enclosure Types 3R, 4X and 12 rating suitable for use in almost any environment.

Wiring Device-Kellems In-Line Plug, Female Insulated, Series: 15 Series, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, Setscrew Connection, Brass Contact, Composite/TPE Housing Material, Cord/Surface Mounting, Specifications: 1-Pole, -40 to 75 deg C, Brown, 0.68 in Dia x 4.6 in L
MFG #: HBL15FBN

EECO #: HUHBL15FBN

Brand: Wiring Device-Kellems
UPC #: 783585473048
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39121402
Wire Size
8 to 2
Application
Temporary Electrical Power, Dry Locations and Indoor Applications
Mounting Type
Cord/Surface
Voltage Rating
600 VAC/250 VDC
Connection Type
Setscrew
Housing Material
Composite/TPE
Temperature Rating
-40 to 75
Type
Female Insulated
Series
15 Series
Dimensions
0.68 in Dia x 4.6 in L
Specifications
1-Pole
Amperage Rating
150
Contact Material
Brass
Features
  • Extra long non-conductive inner sleeve
  • Turn and lock symbol aids in the mating of devices
  • Easily Identifiable cable with cut off points for secure fit
Wiring_Device_Kellems_HBLMRSCBK_Catalog
Bryant_Electric_HBL15MRBL_Catalog
Wiring_Device_Kellems_HBL15MRBK_Manual
