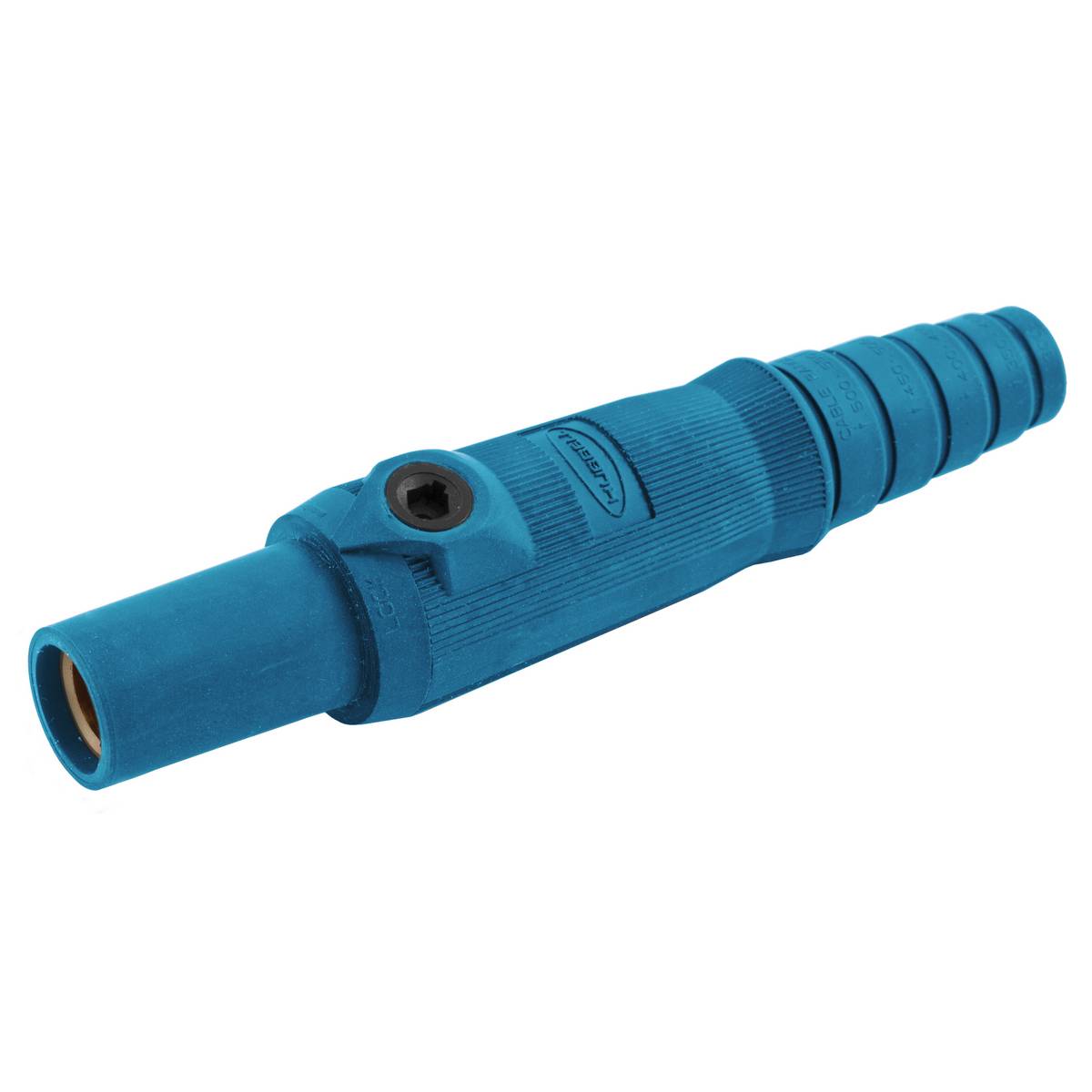

Wiring Device-Kellems HBL15FBLM2 15 Series 1-Pole Female Insulated Standard In-Line Plug With SC/PPC Cord, 150 A, 8 to 2 AWG Wire, Setscrew Connection
Share Share Print Print
Hubbell

Wiring Device-Kellems HBL15FBLM2 15 Series 1-Pole Female Insulated Standard In-Line Plug With SC/PPC Cord, 150 A, 8 to 2 AWG Wire, Setscrew Connection

Short Description

Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 15 single pole plugs, single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. UL enclosure Types 3R, 4X and 12 rating suitable for use in almost any environment.

Wiring Device-Kellems In-Line Plug, 1-Pole Female Insulated Standard, Series: 15 Series, 150 A, 8 to 2 AWG Wire, Setscrew Connection, Brass Contact, Elastomer Housing Material, Cable Mounting, Specifications: 1-Pole, 1 ph, 90000 W, -40 to 75 deg C, Blue, 0.68 in Dia x 4.6 in L
MFG #: HBL15FBLM2

EECO #: HUHBL15FBLM2

Brand: Wiring Device-Kellems
UPC #: 783585433660
Attributes
Features
Documents
Product Information
Attributes
Color
Blue
UNSPSC
39121402
Wire Size
8 to 2
Application
High Ampacity Connections, Dry Locations and Indoor Applications
Mounting Type
Cable
Connection Type
Setscrew
Housing Material
Elastomer
Temperature Rating
-40 to 75
Type
1-Pole Female Insulated Standard
Series
15 Series
Dimensions
0.68 in Dia x 4.6 in L
Specifications
1-Pole, 1 ph, 90000 W
Amperage Rating
150
Contact Material
Brass
Features
  • Extra long non-conductive inner sleeve
  • Turn and lock symbol aids in the mating of devices
  • Easily Identifiable cable with cut off points for secure fit
