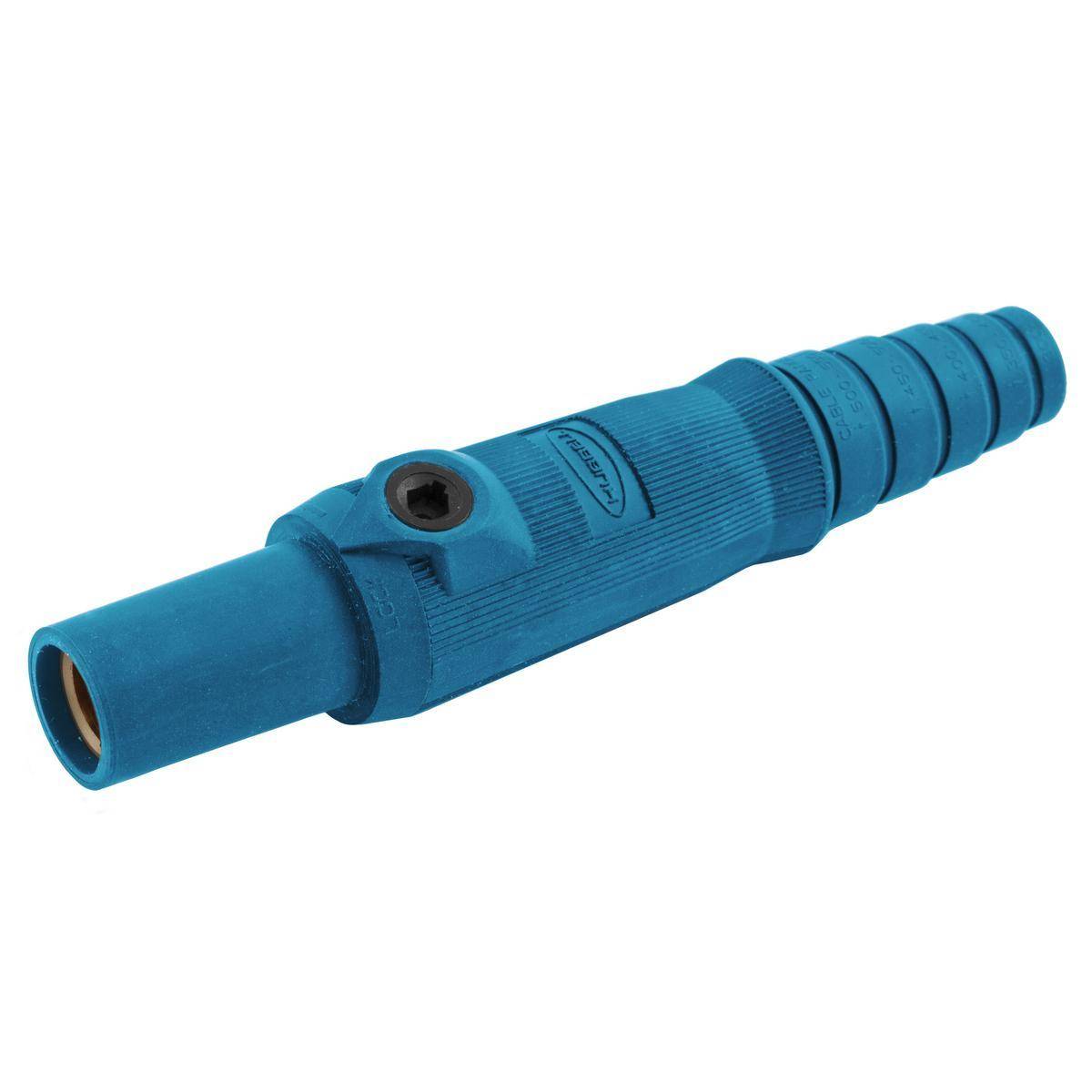

Hubbell® HBL15FBL Female Plug, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, NEMA 3R/4X/12
Hubbell® HBL15FBL Female Plug, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, NEMA 3R/4X/12
Hubbell® HBL15FBL Female Plug, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, NEMA 3R/4X/12
Hubbell® HBL15FBL Female Plug, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, NEMA 3R/4X/12
Share Share Print Print
Hubbell

Hubbell® HBL15FBL Female Plug, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, NEMA 3R/4X/12

Short Description

Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 15 single pole plugs, single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. UL enclosure Types 3R, 4X and 12 rating suitable for use in almost any environment.

Hubbell® Plug, Female, 600 VAC/250 VDC, 150 A, 8 to 2 AWG Wire, Brass Contact, TPE Housing, NEMA 3R/4X/12, 1-Pole, Blue, 4.6 in L x 0.95 in H
MFG #: HBL15FBL

EECO #: HUHBL15FBL

Brand: Hubbell
UPC #: 783585458403
Attributes
Features
Documents
Product Information
Attributes
Color
Blue
UNSPSC
39121402
Wire Size
8 to 2 AWG
Application
Temporary Electrical Power, Dry Locations and Indoor Applications
Mounting Type
Cord
Voltage Rating
600 VAC/250 VDC
Connection Type
Setscrew
Housing Material
TPE
Temperature Rating
-40 to 75
Type
Female
Series
15 Series
Dimensions
4.6 in L x 0.95 in H
Specifications
1-Pole
Amperage Rating
150
Contact Material
Brass
Features
  • Extra long non-conductive inner sleeve
  • Turn and lock symbol aids in the mating of devices
  • Easily identifiable cable with cut off points for secure fit
  • Nylon retaining screw materia
