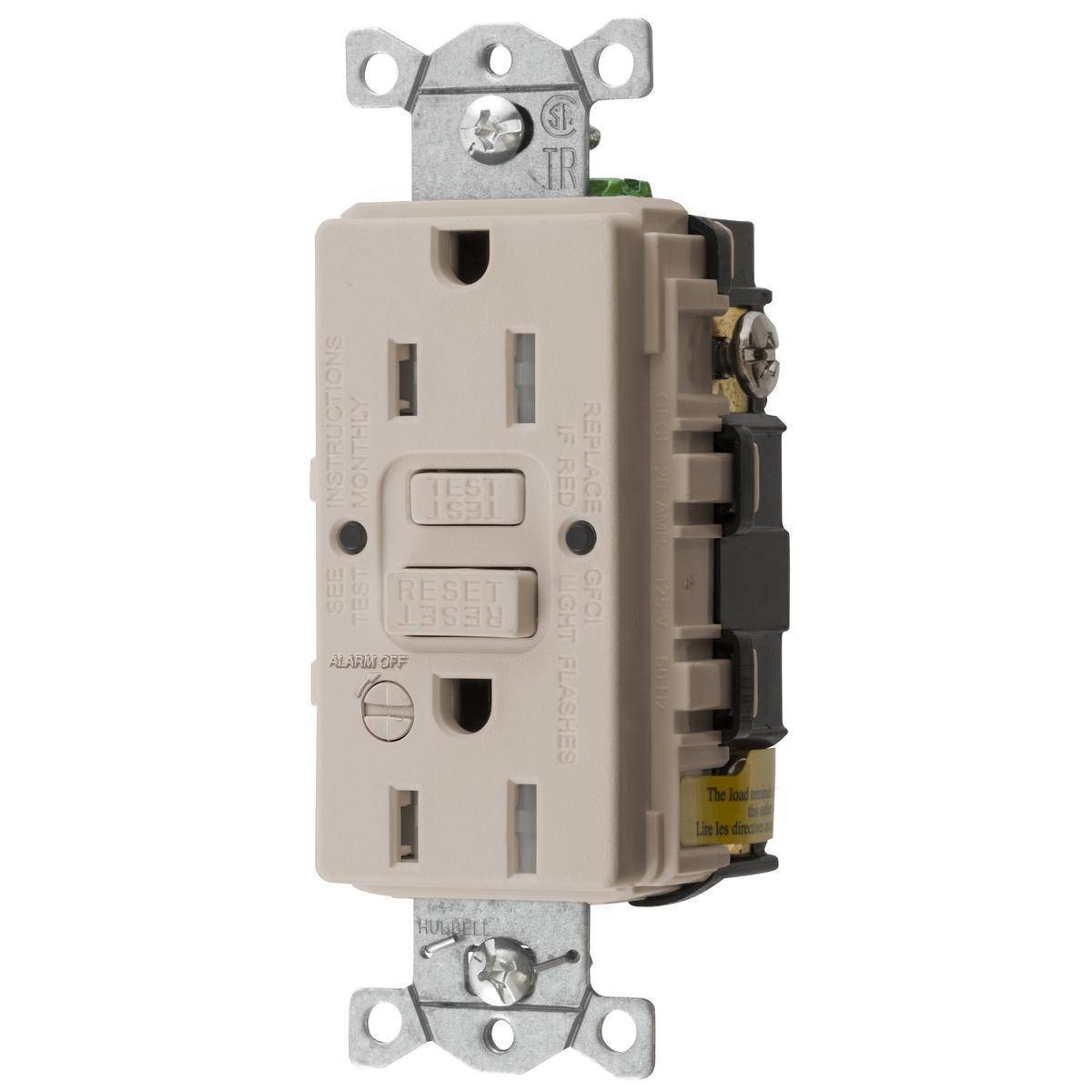

Bryant Electric CIRCUITPRO® GFTRST15LAB 1-Phase Decorator Duplex Grounding Heavy Duty Self-Test Standard Tamper Resistant GFCI Receptacle With Alarm, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond
Share Share Print Print
Hubbell

Bryant Electric CIRCUITPRO® GFTRST15LAB 1-Phase Decorator Duplex Grounding Heavy Duty Self-Test Standard Tamper Resistant GFCI Receptacle With Alarm, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond

Short Description

Bryant CIRCUITPRO® GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto monitoring is conducted continuously within every 30 s. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Bryant Electric CIRCUITPRO® GFCI Receptacle, 1-Phase Decorator Duplex Grounding Heavy Duty Self-Test Standard Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -30 to 150 deg F, Back Wire/Clamp/Screw Terminal, Composite/Thermoplastic, Light Almond, 3.75 in H x 1.75 in W x 1.47 in D Dimensions
MFG #: GFTRST15LAB

EECO #: HUGFTRST15LAB

Brand: Bryant Electric
UPC #: 883778228216
Attributes
Features
Documents
Product Information
Attributes
Color
Light Almond
UNSPSC
39121406
Material
Composite/Thermoplastic
Application
Dry Locations and Indoor Applications
Terminal Type
Back Wire/Clamp/Screw
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-30 to 150
Type
1-Phase Decorator Duplex Grounding Heavy Duty Self-Test Standard Tamper Resistant
Grade
Commercial
Dimensions
3.75 in H x 1.75 in W x 1.47 in D
Horsepower
1/2
Amperage Rating
15
Features
  • Patented CIRCUITPRO® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Patented shutter design for tamper-resistant protection
  • High impact and ultraviolet-resistant construction provides resilience in harsh environments
  • Protection against line and load reversal - no power to the face or downstream receptacles if device is miswired
  • Installation ease, lower labor cost with auto-grounding clip, captive mounting screws and single tab breakoff ears and full breakoff for OEM raised covers
  • Alarm version provides audible notification of a trip condition
