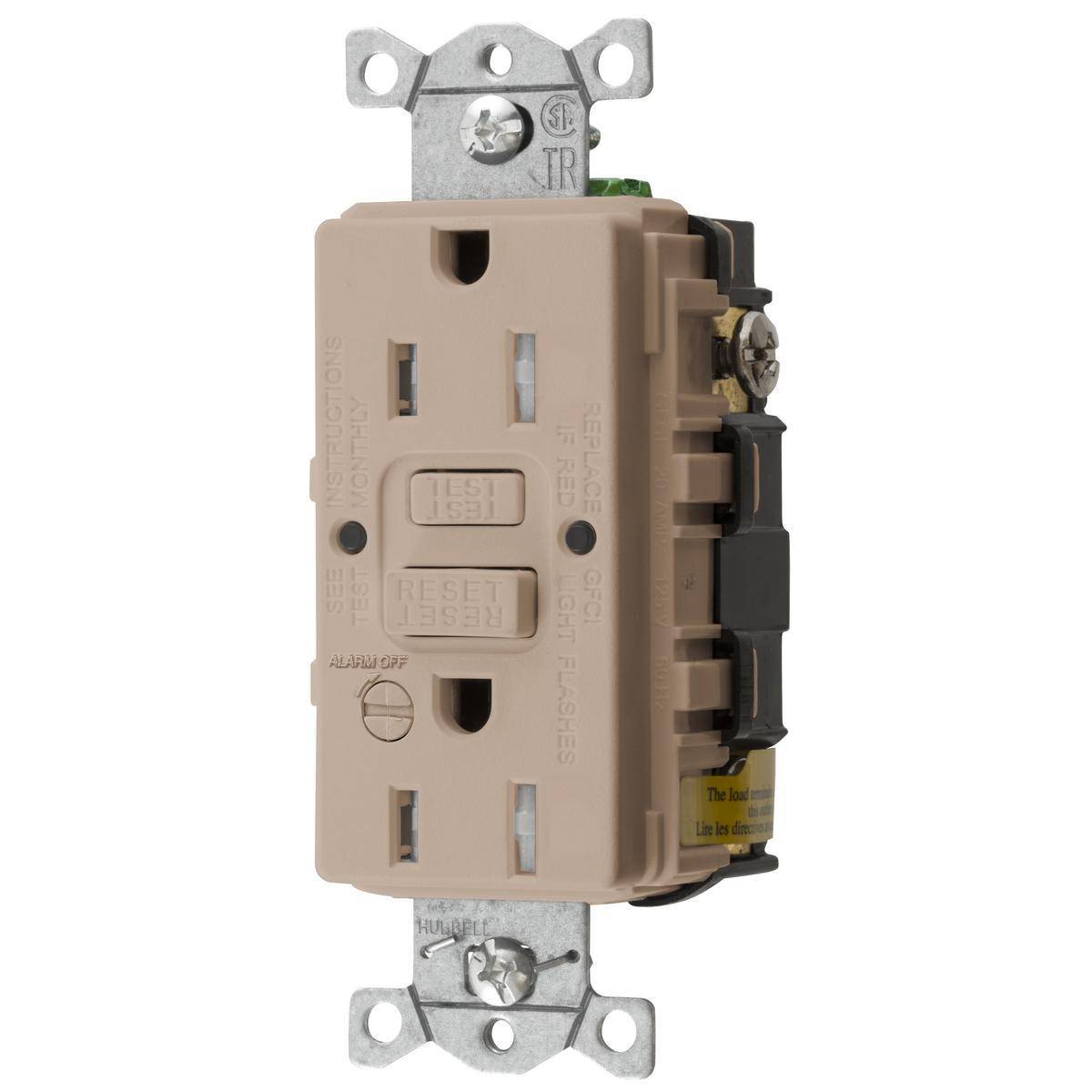

Wiring Device-Kellems AUTOGUARD® GFTRST15ALB 1-Phase Heavy Duty Standard Self-Test Tamper-Resistant Straight Blade Style Line GFCI Receptacle With Alarm, 125 VAC, 15 A, 2 Poles, 3 Wires, Almond

Short Description

Bryant CIRCUITPRO® GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto monitoring is conducted continuously within every 30 s. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Wiring Device-Kellems AUTOGUARD® Style Line GFCI Receptacle, 1-Phase Heavy Duty Standard Self-Test Tamper-Resistant Straight Blade, 125 VAC, 15 A, 1/2 hp, 60 Hz, 2 Pole, 3 Wires, NEMA 5-15R, Commercial Grade, NEMA 5-15R Enclosure, -30 to 150 deg F, Screw Terminal, Composite/Thermoplastic, Almond, 1.75 in W x 1.47 in D
MFG #: GFTRST15ALB

EECO #: HUGFTRST15ALB

Brand: Wiring Device-Kellems
UPC #: 883778228162
Attributes
Features
Documents
Product Information
Attributes
Color
Almond
UNSPSC
39121406
Material
Composite/Thermoplastic
Application
Dry Locations and Indoor Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Enclosure
NEMA 5-15R
Temperature Rating
-30 to 150
Type
1-Phase Heavy Duty Standard Self-Test Tamper-Resistant Straight Blade
Grade
Commercial
Dimensions
1.75 in W x 1.47 in D
Horsepower
1/2
Amperage Rating
15
Features
  • Patented shutter design for tamper-resistant protection
  • Patented AUTOGUARD self-test technology
  • Alarm version provides audible notification of a trip condition
