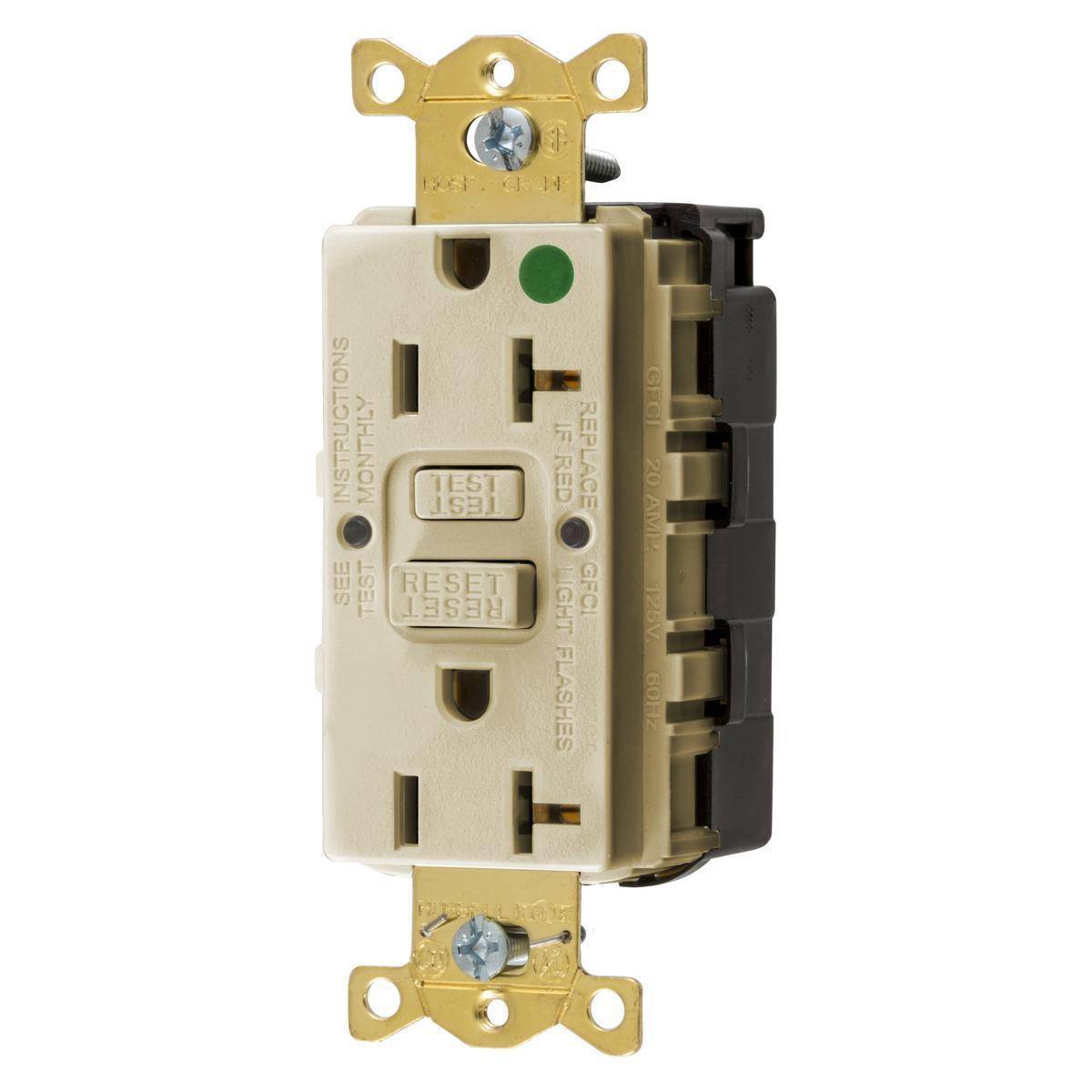

Wiring Device-Kellems GFRST83SNAPI 1-Phase Decorator Duplex Self-Test Standard Screw Mount GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Share Share Print Print
Hubbell

Wiring Device-Kellems GFRST83SNAPI 1-Phase Decorator Duplex Self-Test Standard Screw Mount GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Hubbell® AUTOGUARD GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto-monitoring is conducted continuously within every 30 seconds. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Wiring Device-Kellems, GFRST83SNAPI, GFCI Receptacle, 1-Phase Decorator Duplex Self-Test Standard Screw Mount, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Hospital Grade, -30 to 150 deg F, Connectorized Terminal, Nylon, Ivory, 3.28 x 1.77 x 1.47 in Dimensions
MFG #: GFRST83SNAPI

EECO #: HUGFRST83SNAPI

Brand: Wiring Device-Kellems
UPC #: 783585486338
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39121406
Material
Nylon
Application
Dry Locations and Indoor Applications
Terminal Type
Connectorized
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-30 to 150
Type
1-Phase Decorator Duplex Self-Test Standard Screw Mount
Grade
Commercial/Hospital
Includes
Multiple Drive Screw
Dimensions
3.28 x 1.77 x 1.47
Horsepower
1
Amperage Rating
20
Features
  • Green power indicator and red trip indicator
  • Flush, nylon face, back and side wired, multiple drive screws and self grounding staple
  • Audible SNAP, indicates solid connection
  • Self-grounding, tamper and weather resistant, snapconnect
  • Patented AUTOGUARD® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Patented shutter design for tamper resistant protection
  • Triple wipe construction
IDW_DOCUMENT_7445fe537e9be1416a232a2e6f35b654fdcff5f92fbec68daefa2d1630d7d5ac
IDW_DOCUMENT_83062832985c5a672da0af10950dee1d163d7e79056ec2e4336e7a4f139e471e
IDW_DOCUMENT_d8dd9b7546a7ddb8e242b5a1423341e3c793a6a5c195bd2dd2ec1020bdb21c82
Wiring_Device_Kellems_GFRST15SNAP_Full_Engineering_Drawing
Wiring_Device_Kellems_GFRST83SNAP_Catalog
