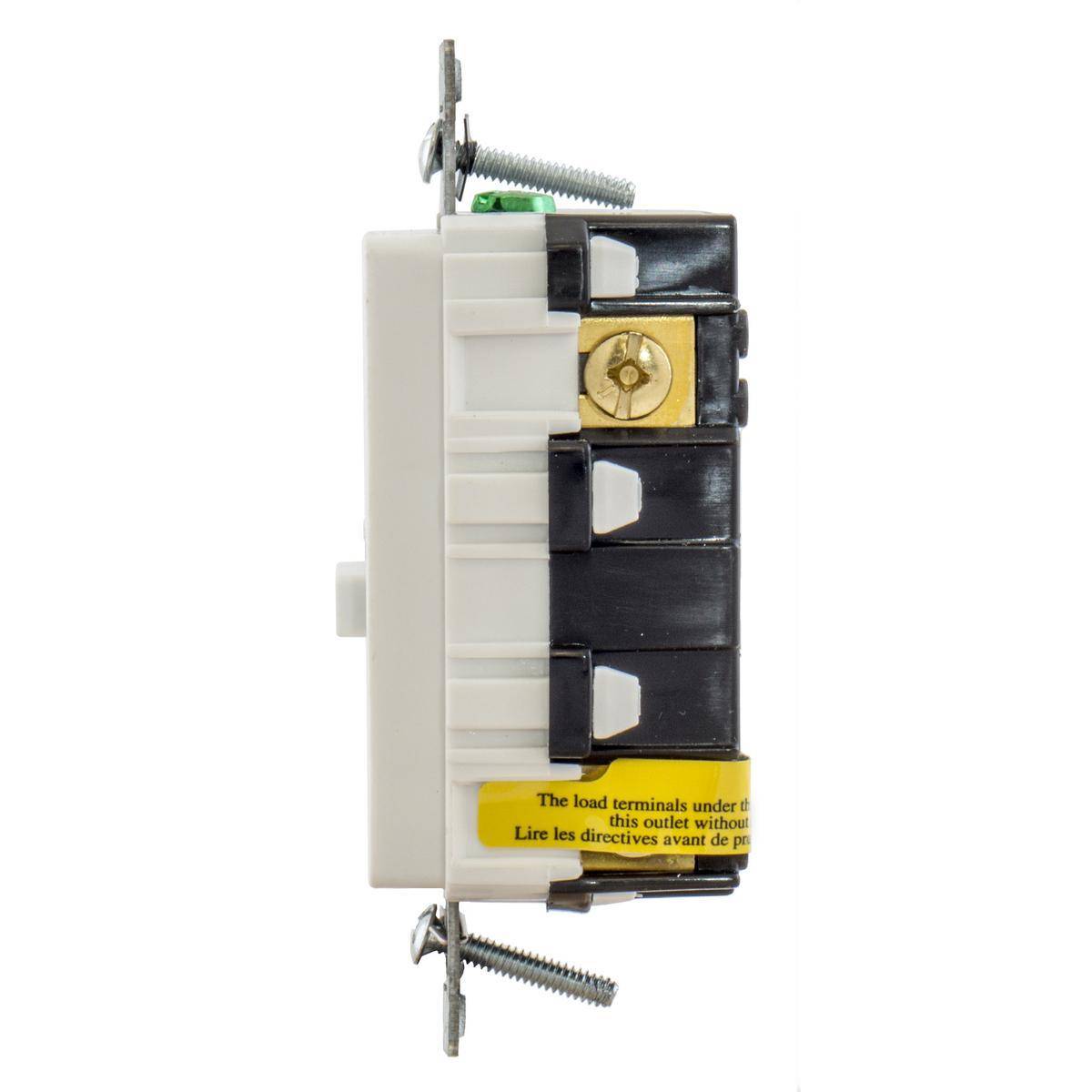

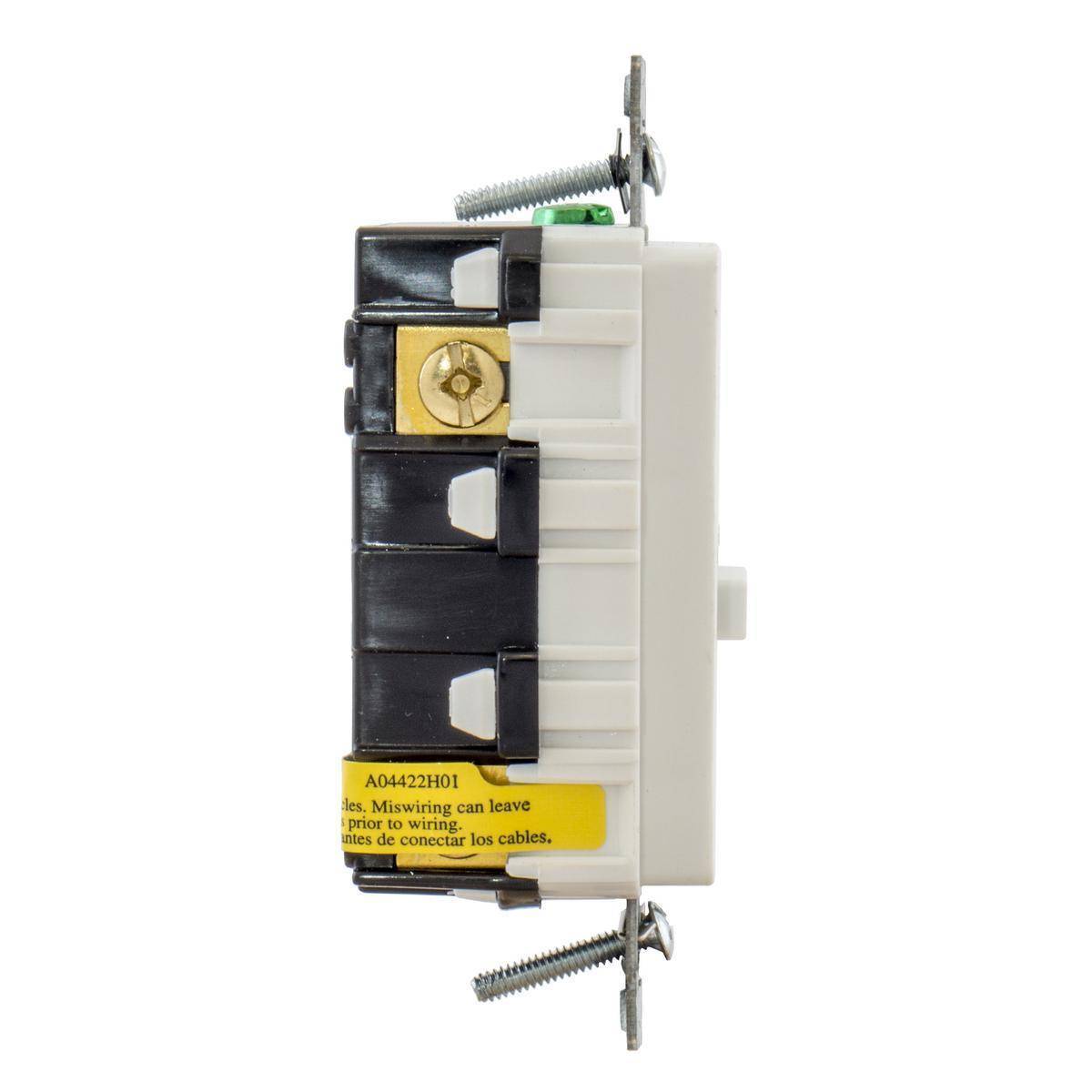

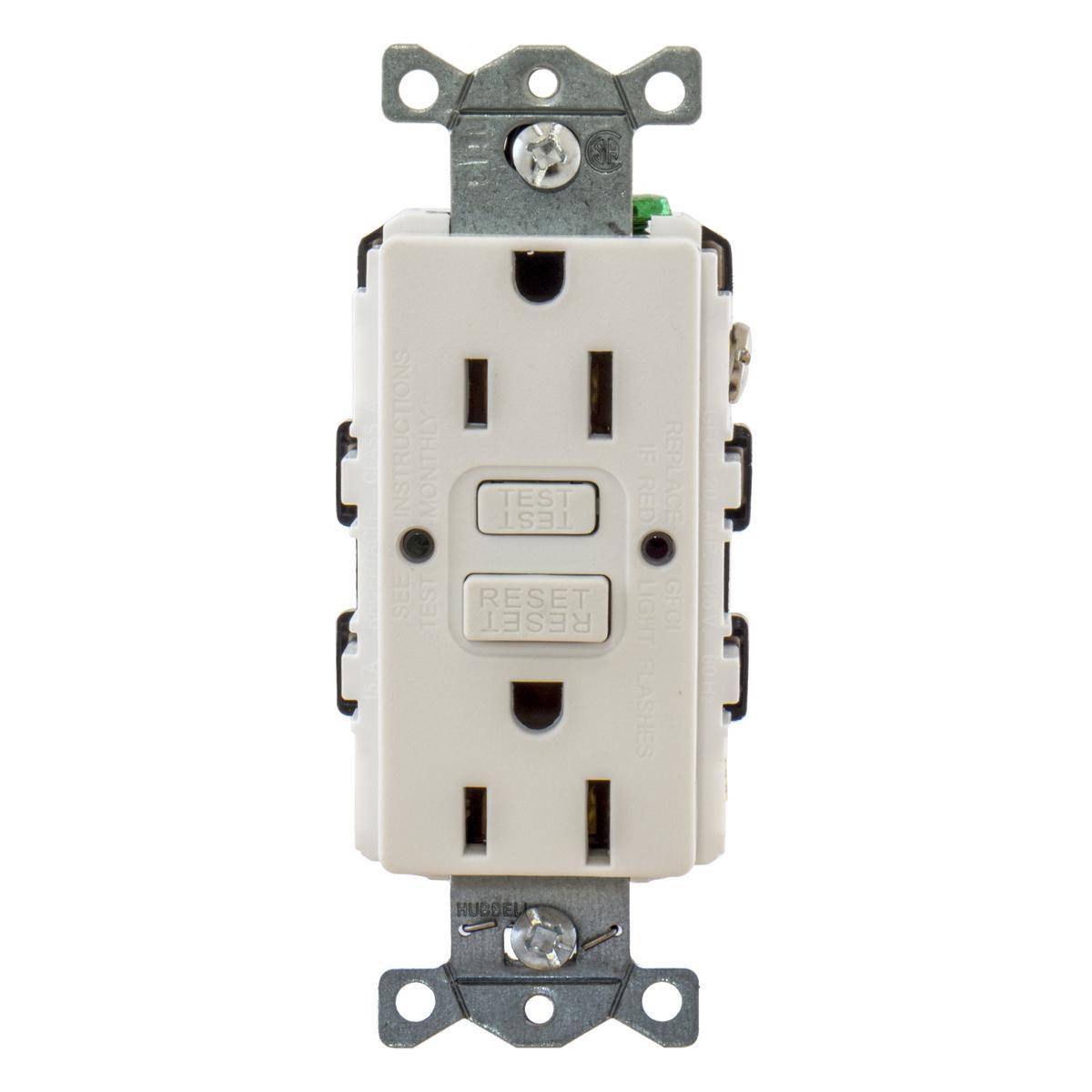

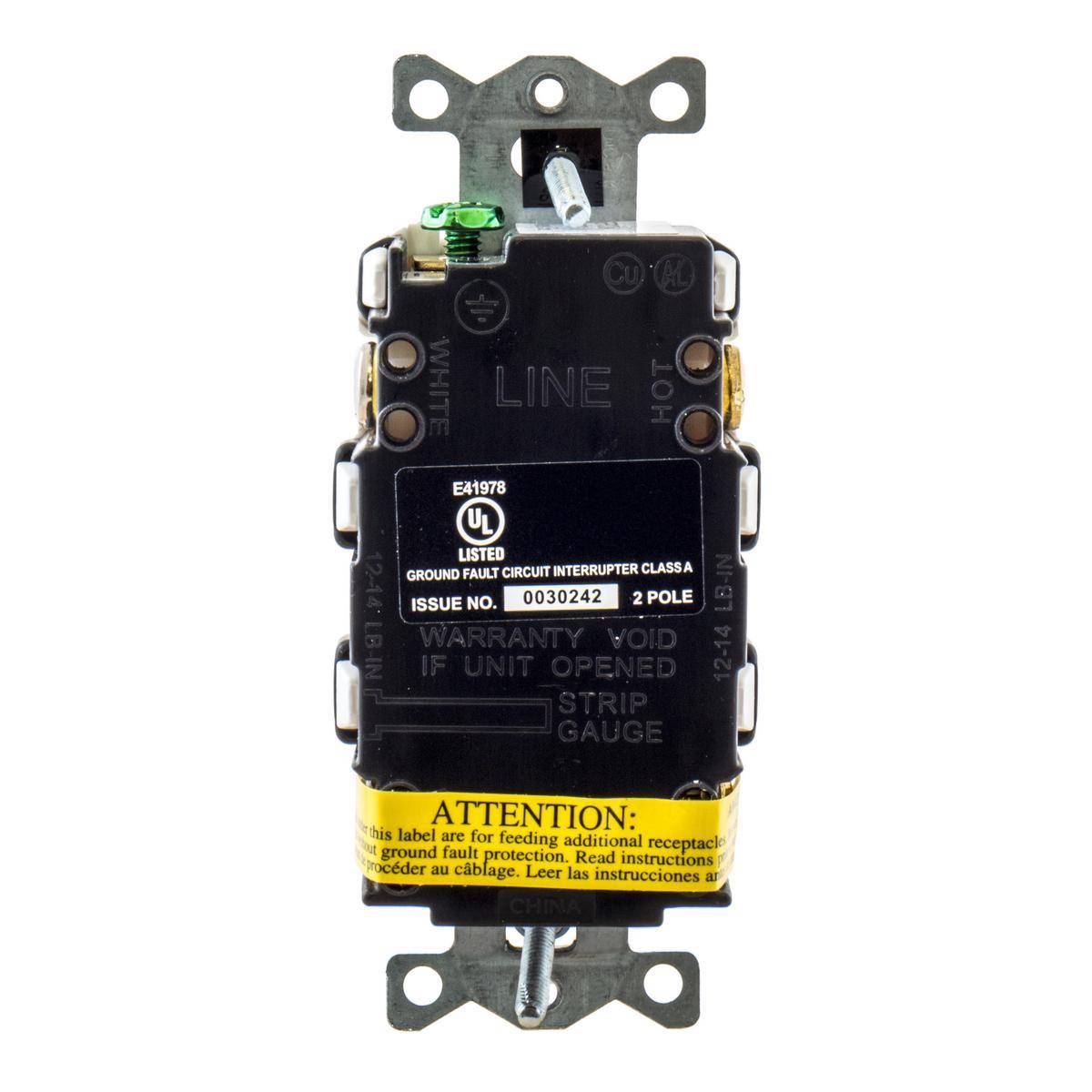

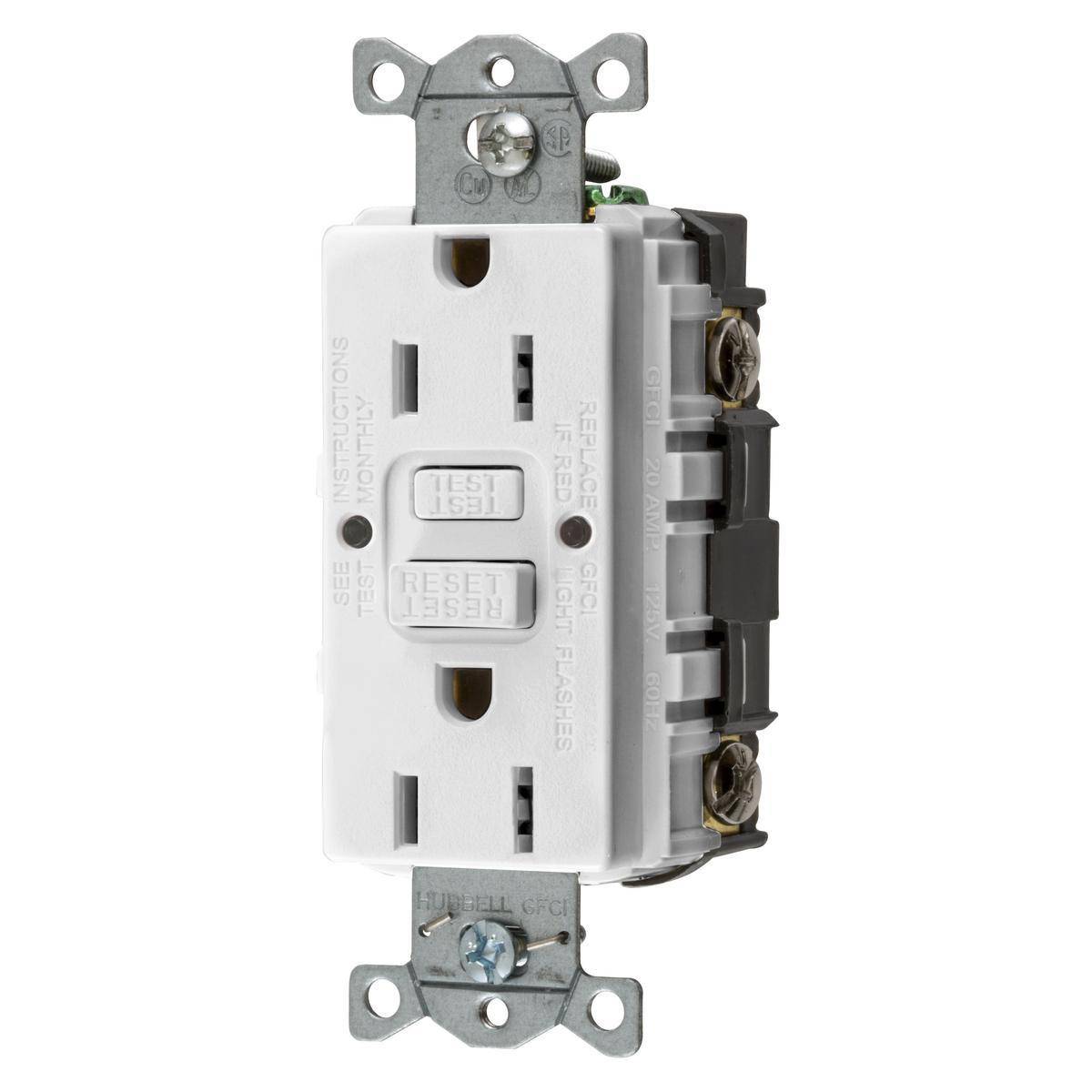

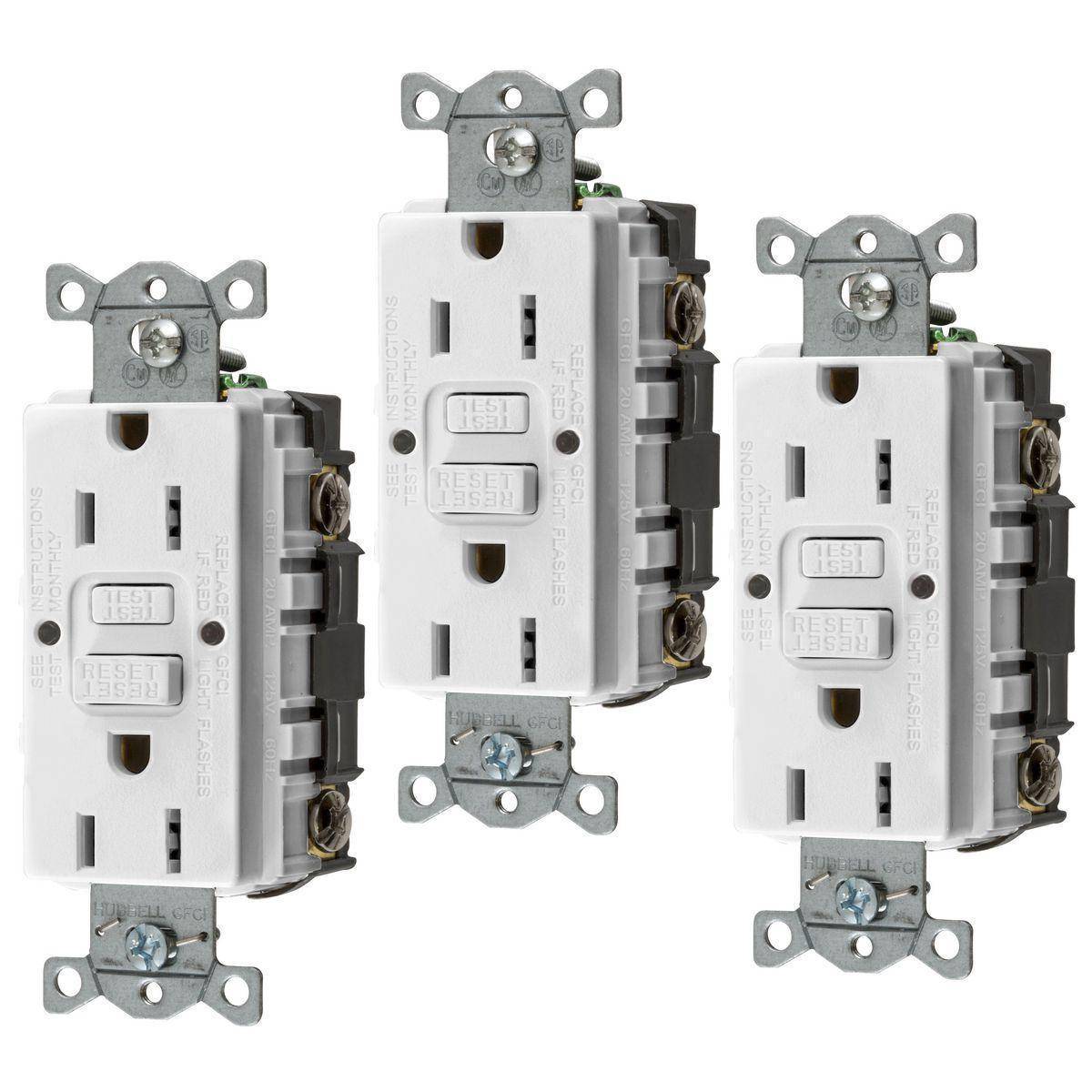

Wiring Device-Kellems AUTOGUARD® Style Line GFRST15W3 Decorator Duplex Heavy Duty Standard Straight Blade Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Short Description

Bryant CIRCUITPRO® GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto monitoring is conducted continuously within every 30 s. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Wiring Device-Kellems AUTOGUARD® Style Line GFCI Receptacle, Decorator Duplex Heavy Duty Standard Straight Blade Self-Test, 125 VAC, 15 A, 1/2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -30 to 150 deg F, Screw Terminal, Composite/Nylon/Thermoplastic, White, 1.75 in W x 1.47 in D Dimensions
MFG #: GFRST15W3

EECO #: HUGFRST15W3

Brand: Wiring Device-Kellems
UPC #: 883778123733
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Material
Composite/Nylon/Thermoplastic
Application
Dry Locations and Indoor Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-30 to 150
Type
Decorator Duplex Heavy Duty Standard Straight Blade Self-Test
Grade
Commercial
Dimensions
1.75 in W x 1.47 in D
Horsepower
1/2
Amperage Rating
15
Features
  • Patented AUTOGUARD self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Internal back wiring clamp and guide for quick and secure termination
