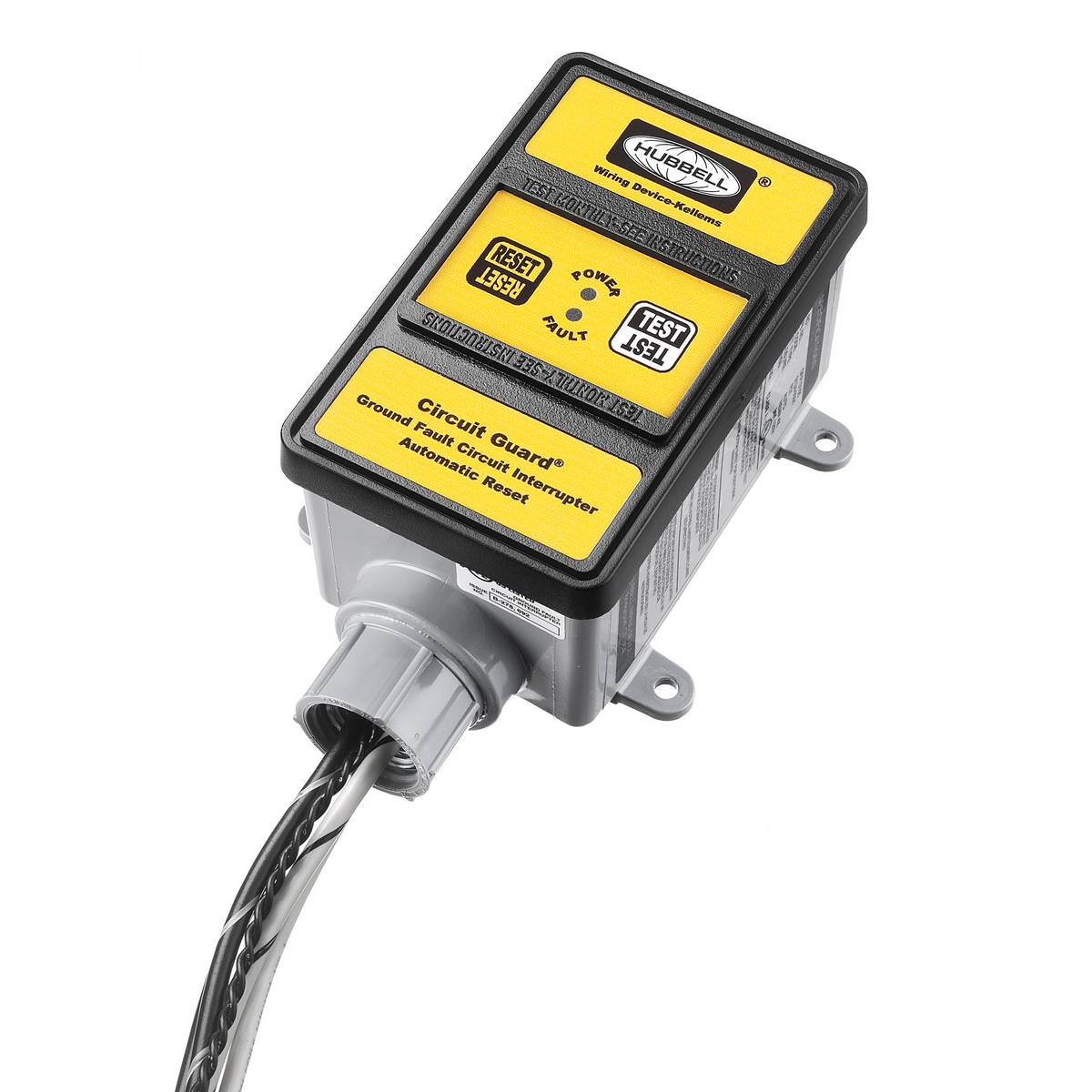

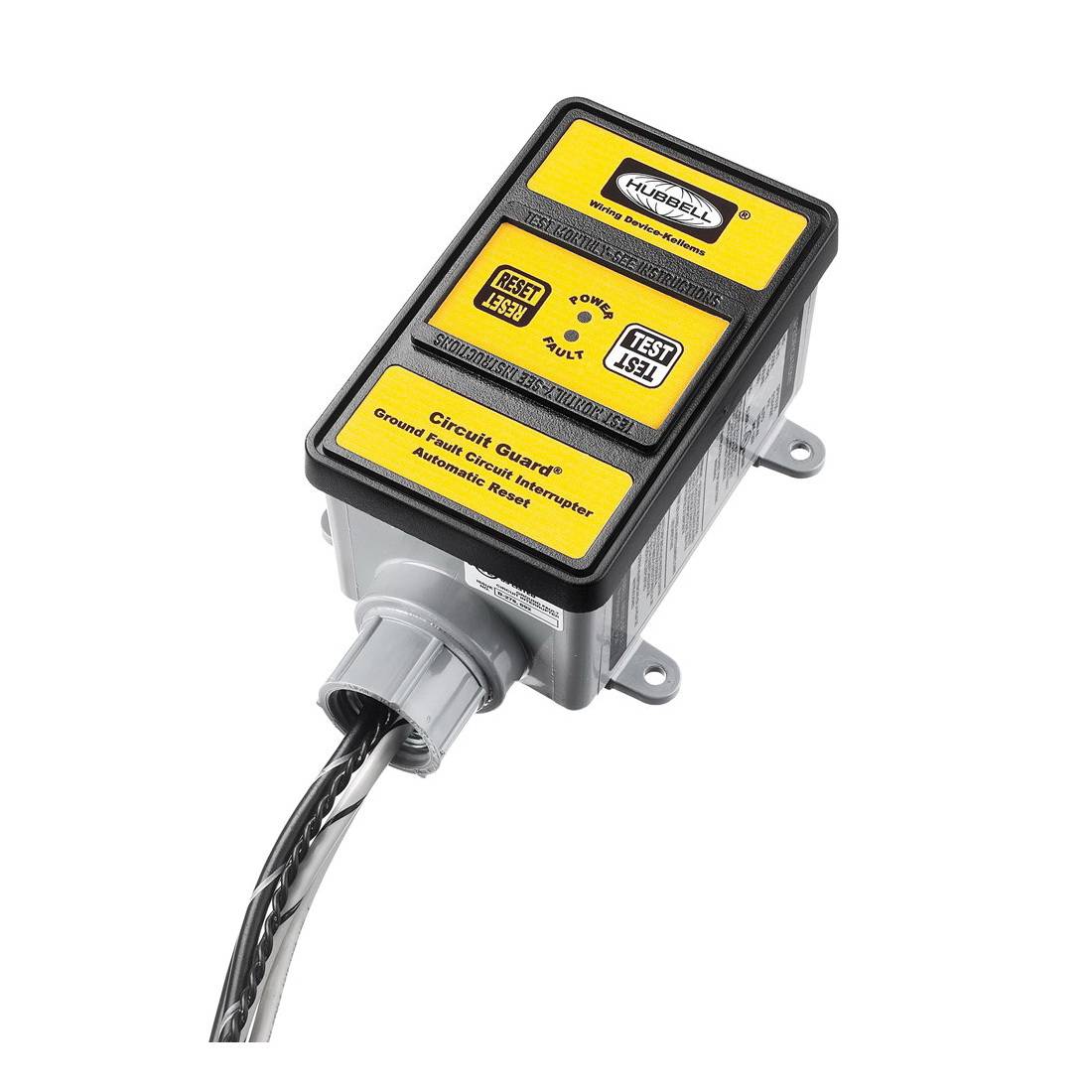

Wiring Device-Kellems Circuit Guard® GFHW23115 3-Wire Automatic Multi-Strand Fabricated Hard Wired GFCI With Audible Alarm, 240 VAC, 30 A, 7200 W Power Rating, NEMA 4X Enclosure, Thermoplastic

Short Description

Ensure safety and reliability with the Wiring Device-Kellems Circuit Guard® GFHW23115! This advanced hard-wired GFCI features an audible alarm and a robust NEMA 4X enclosure, making it perfect for demanding environments. With a power rating of 7200 W and a temperature range of -30 to 150 deg F, it's designed to keep your electrical systems secure and efficient.

Wiring Device-Kellems Circuit Guard® Hard Wired GFCI, 3-Wire Automatic Multi-Strand Fabricated, 240 VAC, 30 A, 7200 W Power, -30 to 150 deg F, NEMA 4X Enclosure, Thermoplastic, Yellow, 24 in L

MFG #: GFHW23115

EECO #: HUGFHW23115

Brand: Wiring Device-Kellems
UPC #: 783585005300
Attributes
Features
Documents
Product Information
Attributes
Color
Yellow
UNSPSC
26121536
Material
Thermoplastic
Application
Industrial, Commercial and Wire into Circuit Applications
Power Rating
7200
Voltage Rating
240
Enclosure
NEMA 4X
Temperature Rating
-30 to 150
Type
3-Wire Automatic Multi-Strand Fabricated
Includes
Foam Gasket, Mounting Template and Detailed Instructions
Dimensions
24 in L
Amperage Rating
30
Features
  • Automatically energizes or sets the GFCI for use once power is applied to the circuit
  • After a ground fault condition, unit must be reset by pushing the reset button
  • This feature eliminates the need for the unit to be reset each time the power is turned ON
  • Automatic reset is ideal where temporary power failure is likely and undesirable such as waste water treatment plants, portable signs and some pump applications
  • Offers a 4 to 6 mA trip level
  • The alarm alerts you if a ground fault has occurred and the GFCI has tripped
  • The alarm may be disabled or wired into a switch so that the customer has the choice of use or non-use
  • Green light illuminates when unit has power and no ground fault is present
  • Red light begins blinking when a ground fault is detected and the output power is interrupted
