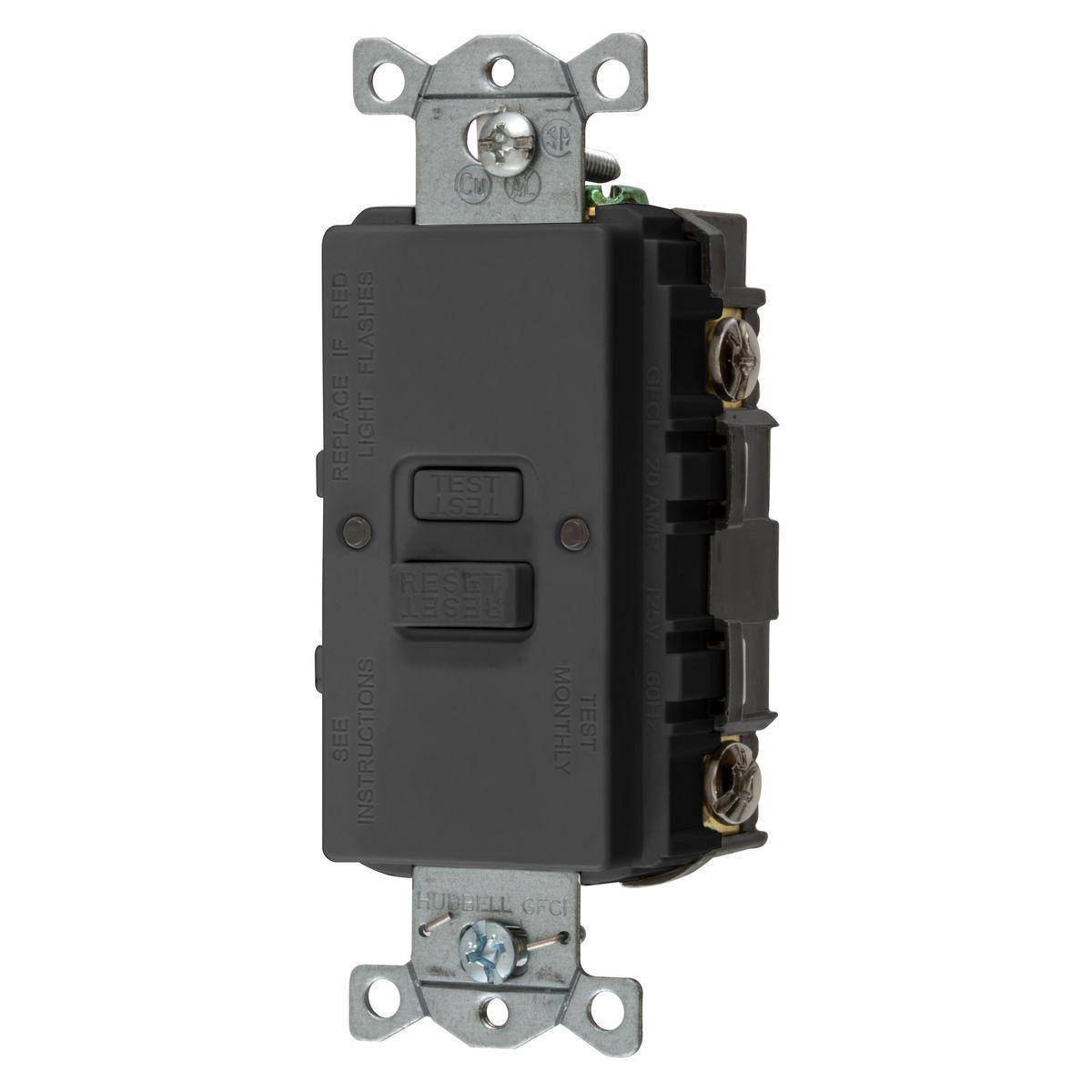

Bryant Electric AUTOGUARD® Style Line® GFBFST20BK 1-Phase Auto Grounding Decorator Duplex Self-Test Standard Blank Face GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Share Share Print Print
Hubbell

Bryant Electric AUTOGUARD® Style Line® GFBFST20BK 1-Phase Auto Grounding Decorator Duplex Self-Test Standard Blank Face GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black

Short Description

Hubbell AUTOGUARD® GFR products continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. Also, visual indicators are clearly provided on the device face representing power status, trip condition, ground fault condition and end of life status.

Bryant Electric AUTOGUARD® Style Line® Blank Face GFCI Receptacle, 1-Phase Auto Grounding Decorator Duplex Self-Test Standard, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -30 to 150 deg F, Screw Terminal, Composite/Thermoplastic, Black, 3.27 in H x 1.75 in W x 1.47 in D Dimensions
MFG #: GFBFST20BK

EECO #: HUGFBFST20BK

Brand: Bryant Electric
UPC #: 883778122170
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121406
Material
Composite/Thermoplastic
Application
Indoor Dry Environment and Power Protection Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-30 to 150
Type
1-Phase Auto Grounding Decorator Duplex Self-Test Standard
Grade
Commercial
Dimensions
3.27 in H x 1.75 in W x 1.47 in D
Horsepower
1
Amperage Rating
20
Features
  • Patented AUTOGUARD® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Internal back wiring clamp and guide for quick and secure termination
  • Triple wipe construction
  • 14 to 12 AWG wire
IDW_DOCUMENT_3777dc6284ba4410939fccd1ada879b157928b7a8f0d1856edd2b678ac3a2bc2
Bryant_Electric_GFSPST15I_Brochure
BRYANT_GFBFST20BK_Datasheet
IDW_DOCUMENT_2dfe56a4d6f44b50426aad7c2d75f669130c8a067b9190eebaed6d42bda44073
IDW_DOCUMENT_4093c37c545b65cbb2aa93c1d75dd4a89ab51a9cfb6da01b91666ae58af976b5
IDW_DOCUMENT_8f0b6ecb7e361af4426433f631f50033678bc1d00cb06820edaa92f8bdb76365
Wiring_Device_Kellems_GFBFHP20_Full_Engineering_Drawing
