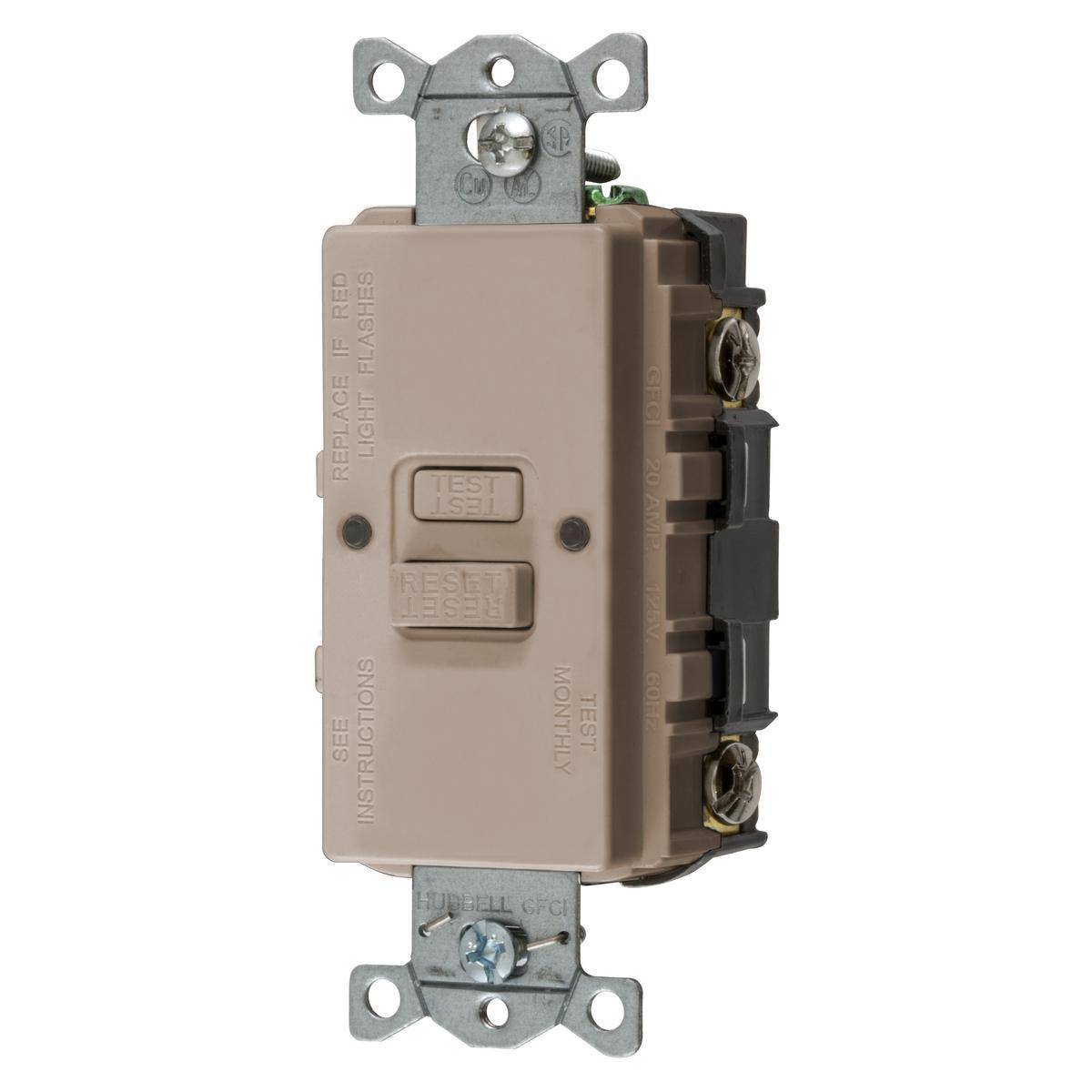

Bryant Electric AUTOGUARD® Style Line® GFBFST20AL 1-Phase Auto Grounding Decorator Duplex Self-Test Standard Blank Face GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Almond
Share Share Print Print
Hubbell

Bryant Electric AUTOGUARD® Style Line® GFBFST20AL 1-Phase Auto Grounding Decorator Duplex Self-Test Standard Blank Face GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Almond

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Hubbell AUTOGUARD® GFR products continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. Also, visual indicators are clearly provided on the device face representing power status, trip condition, ground fault condition and end of life status.

Bryant Electric AUTOGUARD® Style Line® Blank Face GFCI Receptacle, 1-Phase Auto Grounding Decorator Duplex Self-Test Standard, 125 VAC, 20 A, 1 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -30 to 150 deg F, Screw Terminal, Composite/Thermoplastic, Almond, 3.27 in H x 1.75 in W x 1.47 in D Dimensions
MFG #: GFBFST20AL

EECO #: HUGFBFST20AL

Brand: Bryant Electric
UPC #: 883778122163
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Almond
UNSPSC
39121406
Material
Composite/Thermoplastic
Application
Indoor Dry Environment and Power Protection Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-30 to 150
Type
1-Phase Auto Grounding Decorator Duplex Self-Test Standard
Grade
Commercial
Includes
Light Sensor Control and Custom Dual Lens
Dimensions
3.27 in H x 1.75 in W x 1.47 in D
Horsepower
1
Amperage Rating
20
Features
  • Patented AUTOGUARD® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Internal back wiring clamp and guide for quick and secure termination
  • Triple wipe construction
  • 14 to 12 AWG wire
