Hubbell

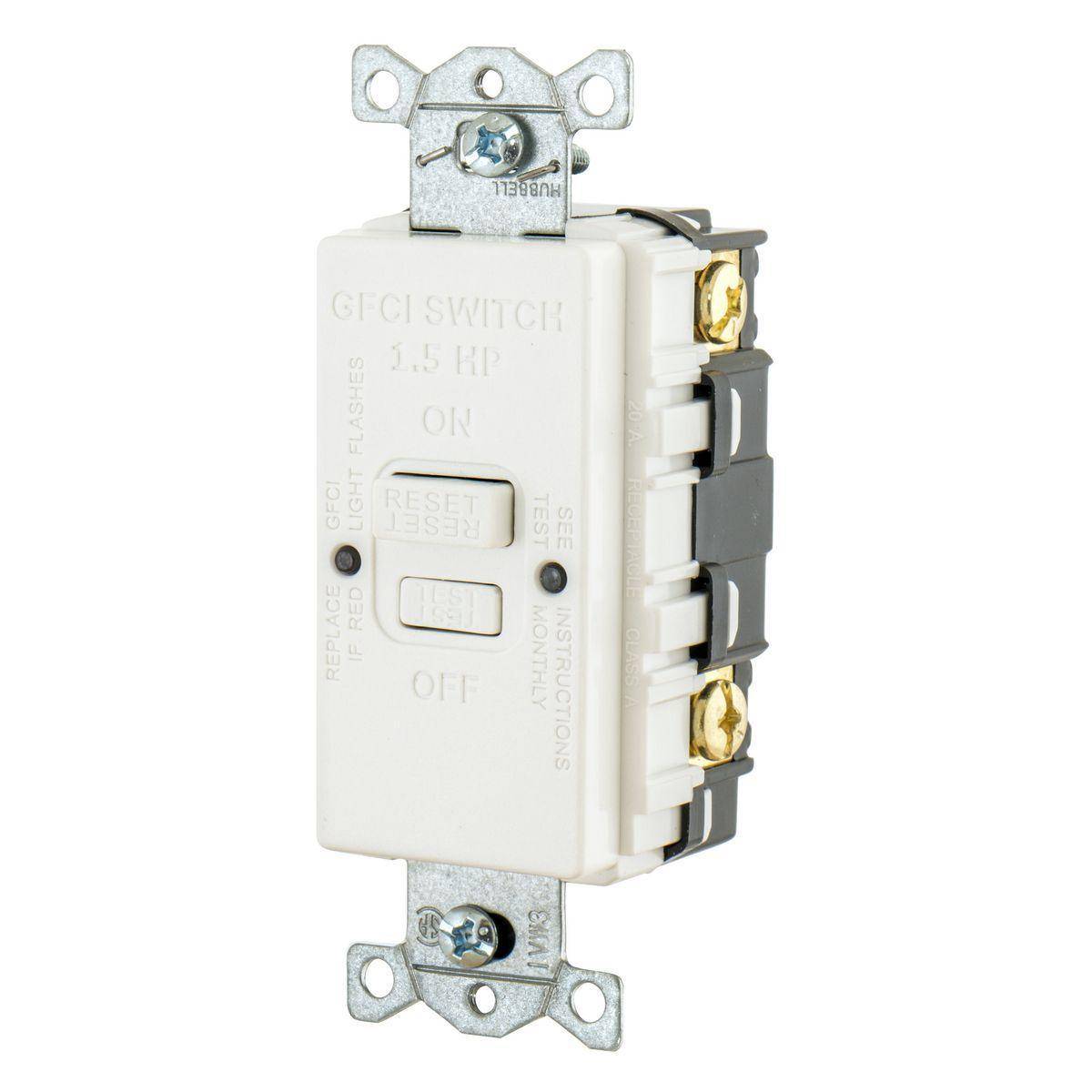

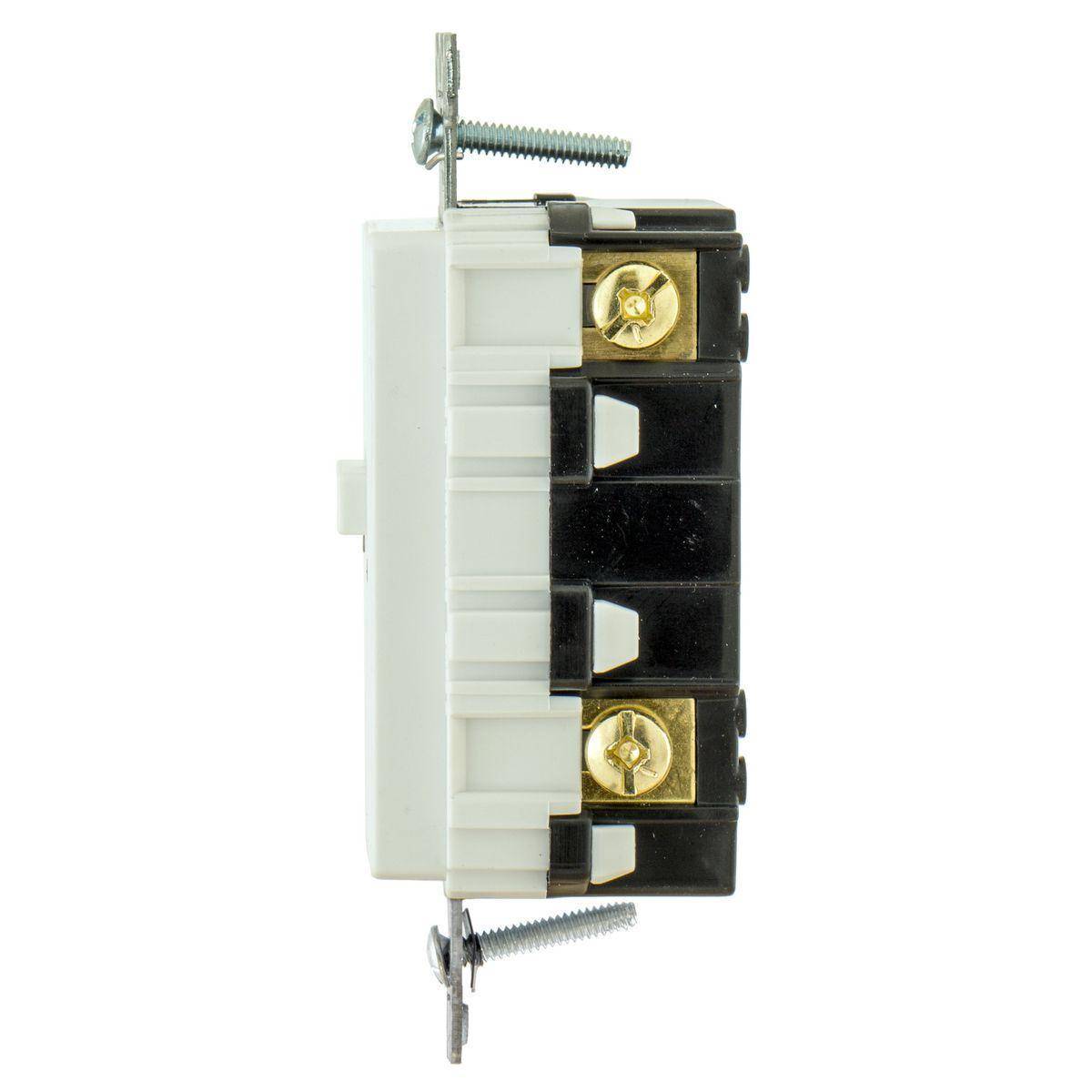

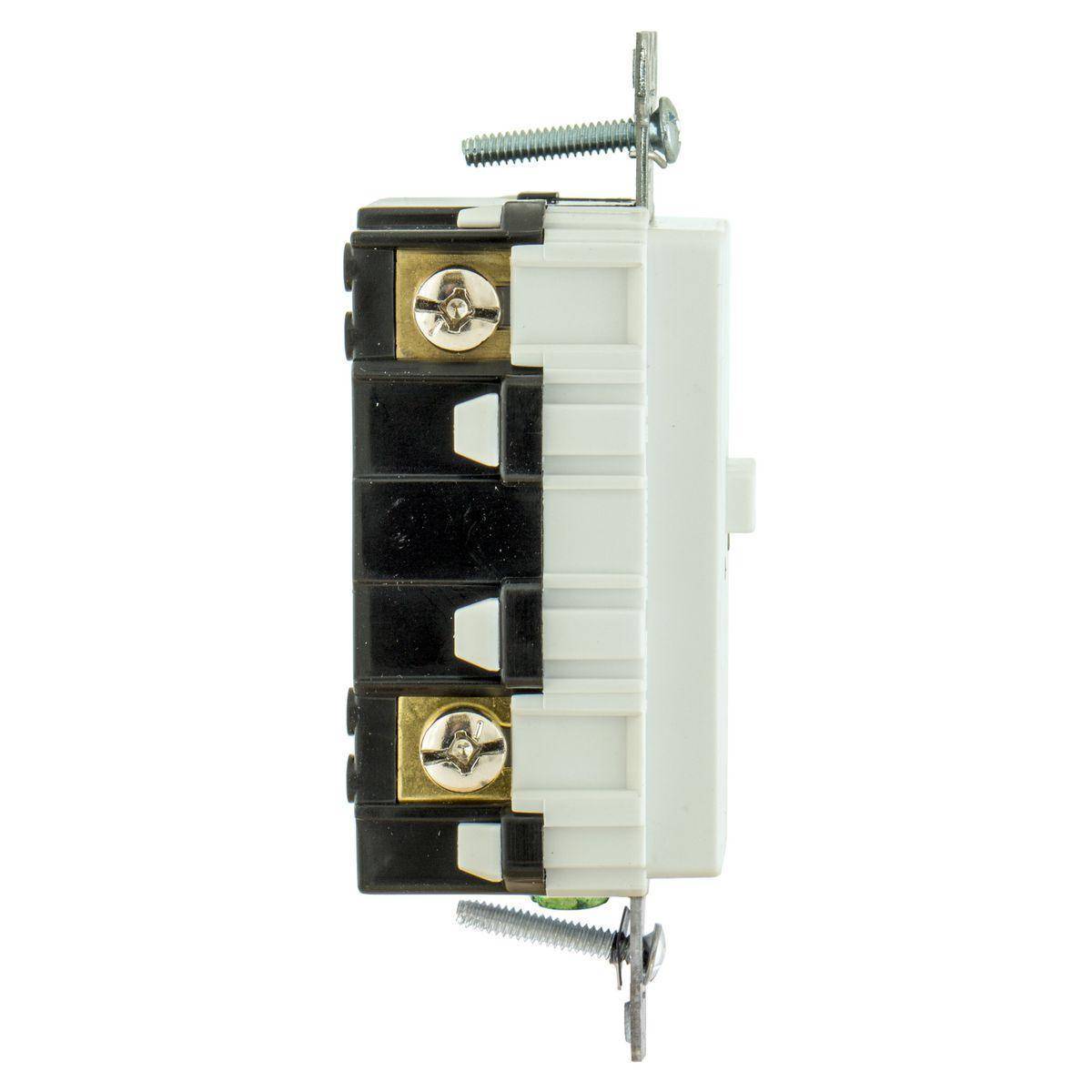

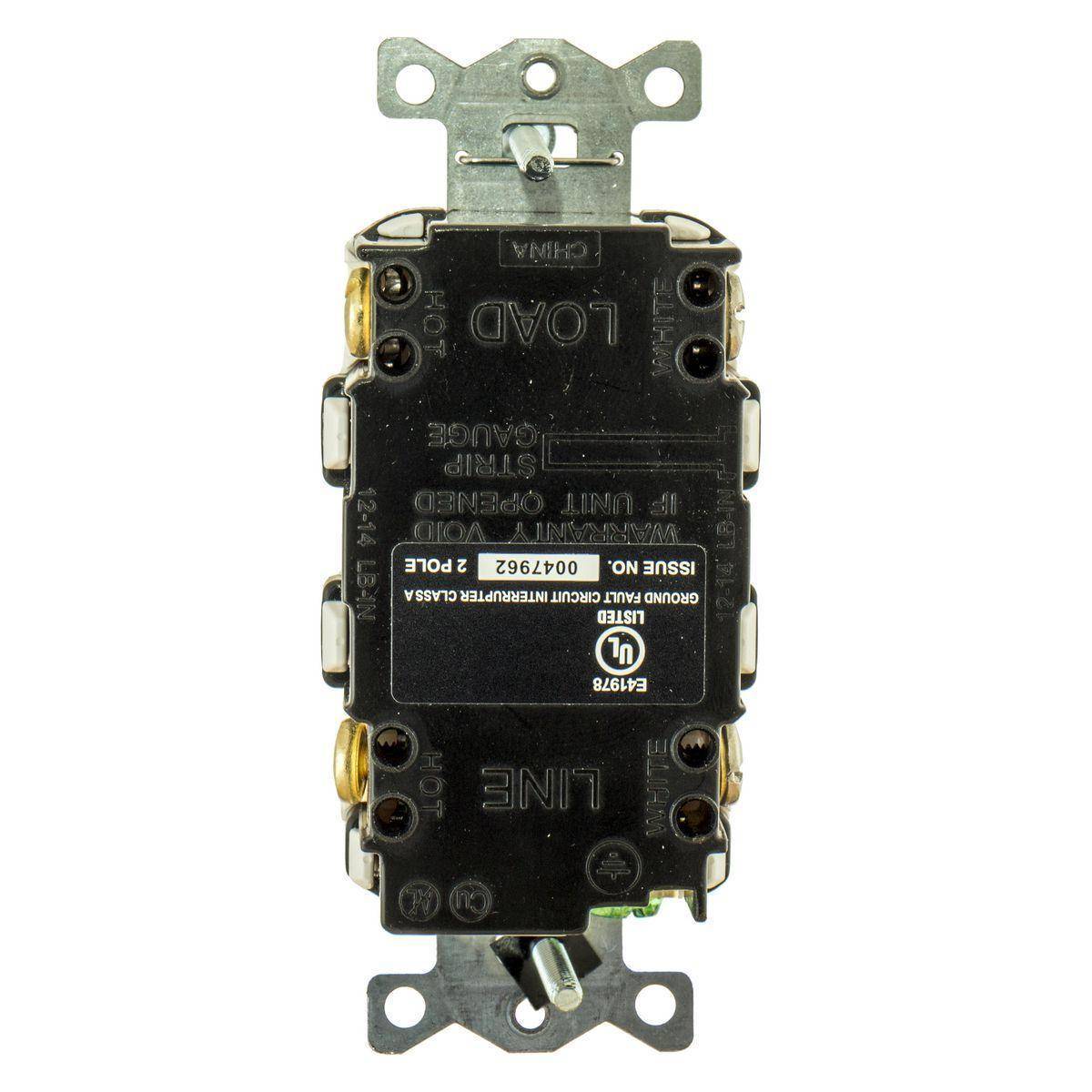

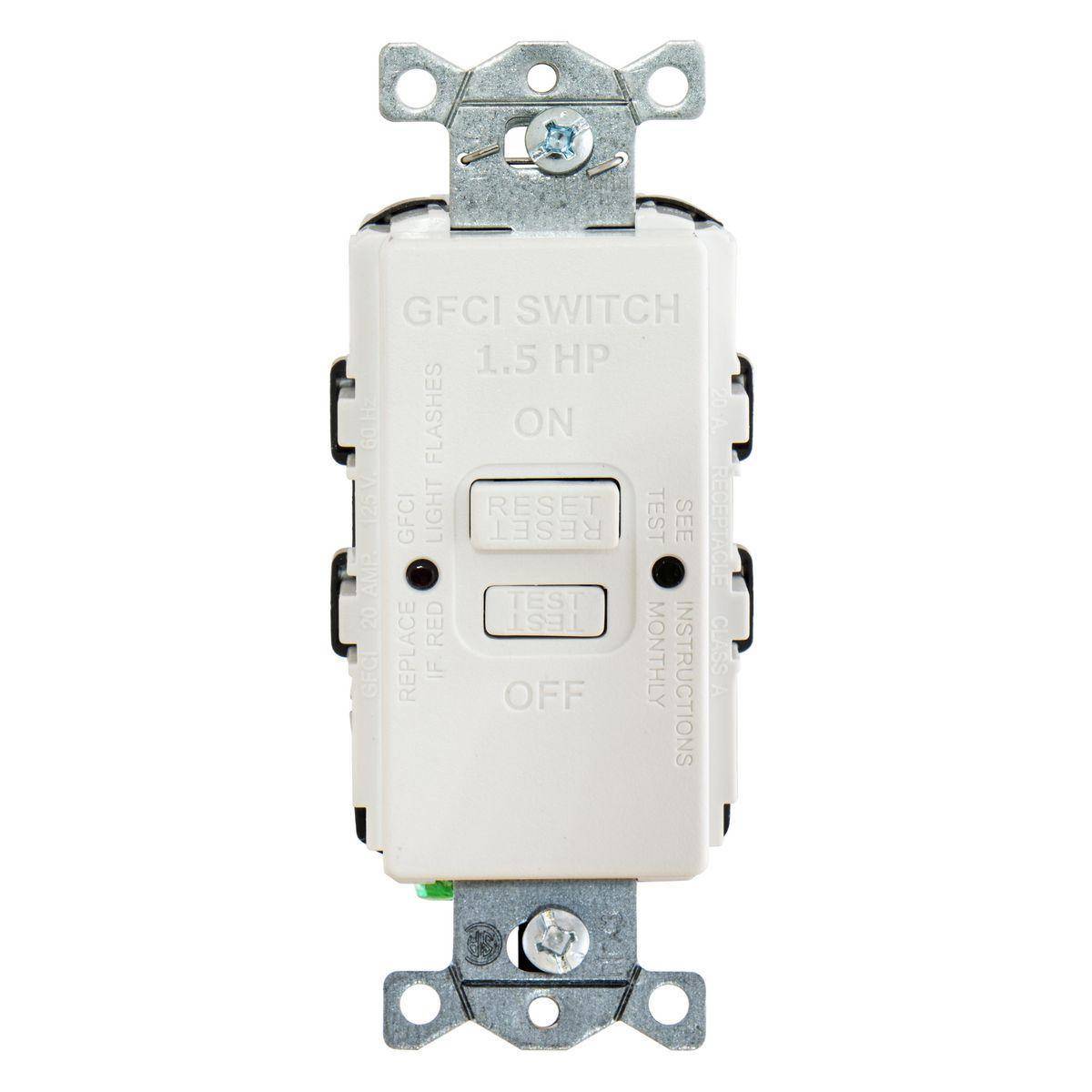

Wiring Device-Kellems AUTOGUARD® GFBFHP20W 1-Phase Blank Face Insulated Standard GFCI Receptacle, 125 VAC, 20 A, 3 Wires, White

Short Description

Hubbell® AUTOGUARD® GFR products continually test and monitor for "people protection capability" automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. Also, visual indicators are clearly provided on the device face representing "power status", "trip condition", "ground fault condition" and "end of life status".

Wiring Device-Kellems AUTOGUARD® GFCI Receptacle, 1-Phase Blank Face Insulated Standard, 125 VAC, 20 A, 1-1/2 hp, 60 Hz, 3 Wires, -40 to 75 deg C, Screw Terminal, Composite, White, 1.75 in W x 1.47 in D
MFG #: GFBFHP20W

EECO #: HUGFBFHP20W

Brand: Wiring Device-Kellems
UPC #: 883778450075
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Material
Composite
Application
Dry Location and Indoor Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-40 to 75
Type
1-Phase Blank Face Insulated Standard
Dimensions
1.75 in W x 1.47 in D
Horsepower
1-1/2
Amperage Rating
20
Features
  • If wired incorrectly there will be no power to the face or to downstream receptacles for added safety
  • (2) LED indicators provide immediate status of power, trip condition and ability to provide GFCI protection
