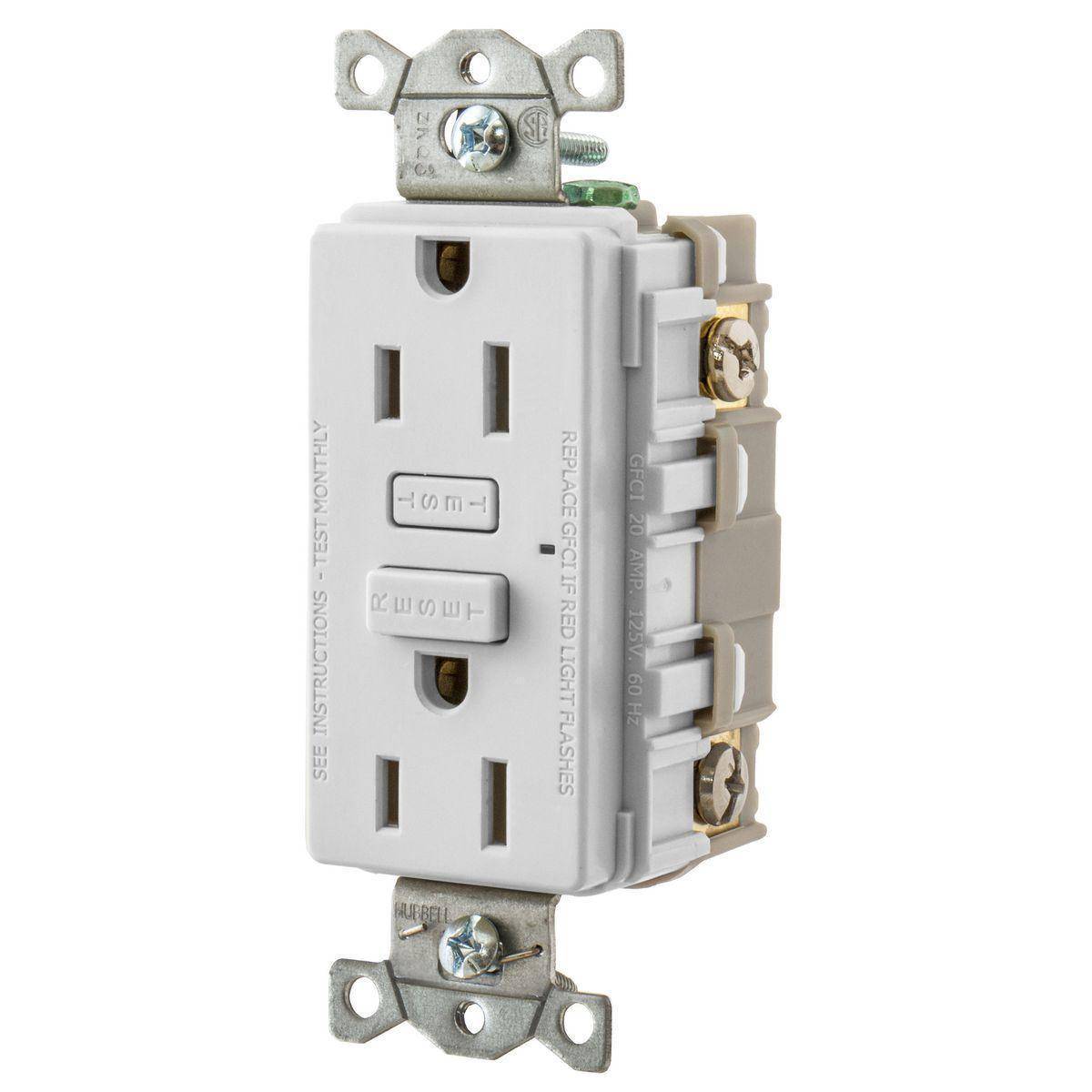

Wiring Device-Kellems Hubbell-PRO™ GF15W 1-Phase Duplex Standard Screw Mount GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Share Share Print Print
Hubbell

Wiring Device-Kellems Hubbell-PRO™ GF15W 1-Phase Duplex Standard Screw Mount GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Short Description

Hubbell-Pro provides an innovative self-test technology with a new contemporary look. The appealing smooth style and low profile satin finish are sure to complement any decor. The face of the device blends in with the surrounding interior. All distracting stepped surfaces, lights and conspicuous text markings have been minimized. This safety solution includes tamper-resistant (TR), weather resistant (WR) and standard (non TRWR) options in 7 different color choices.

Wiring Device-Kellems Hubbell-PRO™ GFCI Receptacle, 1-Phase Duplex Standard Screw Mount, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, -30 to 150 deg F, Screw Terminal, Thermoplastic/Composite, White, 1.75 in W x 1.47 in D x 4.12 in H
MFG #: GF15W

EECO #: HUGF15W

Brand: Wiring Device-Kellems
UPC #: 883778450525
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Material
Thermoplastic/Composite
Application
Kitchens, Bathrooms, Garages, Basements, Laundry Areas, Workshops, Wet or Damp Locations, Outdoor Porches and Deck Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-30 to 150
Type
1-Phase Duplex Standard Screw Mount
Grade
Commercial
Dimensions
1.75 in W x 1.47 in D x 4.12 in H
Horsepower
1
Amperage Rating
15
Features
  • Appealing style with a flush, smooth profile and satin finish to complement any decor
  • All distracting stepped surfaces on face, including lights and conspicuous text, have been eliminated
  • Clear indication if unit can no longer provide protection (LED red flashes) and will not reset
