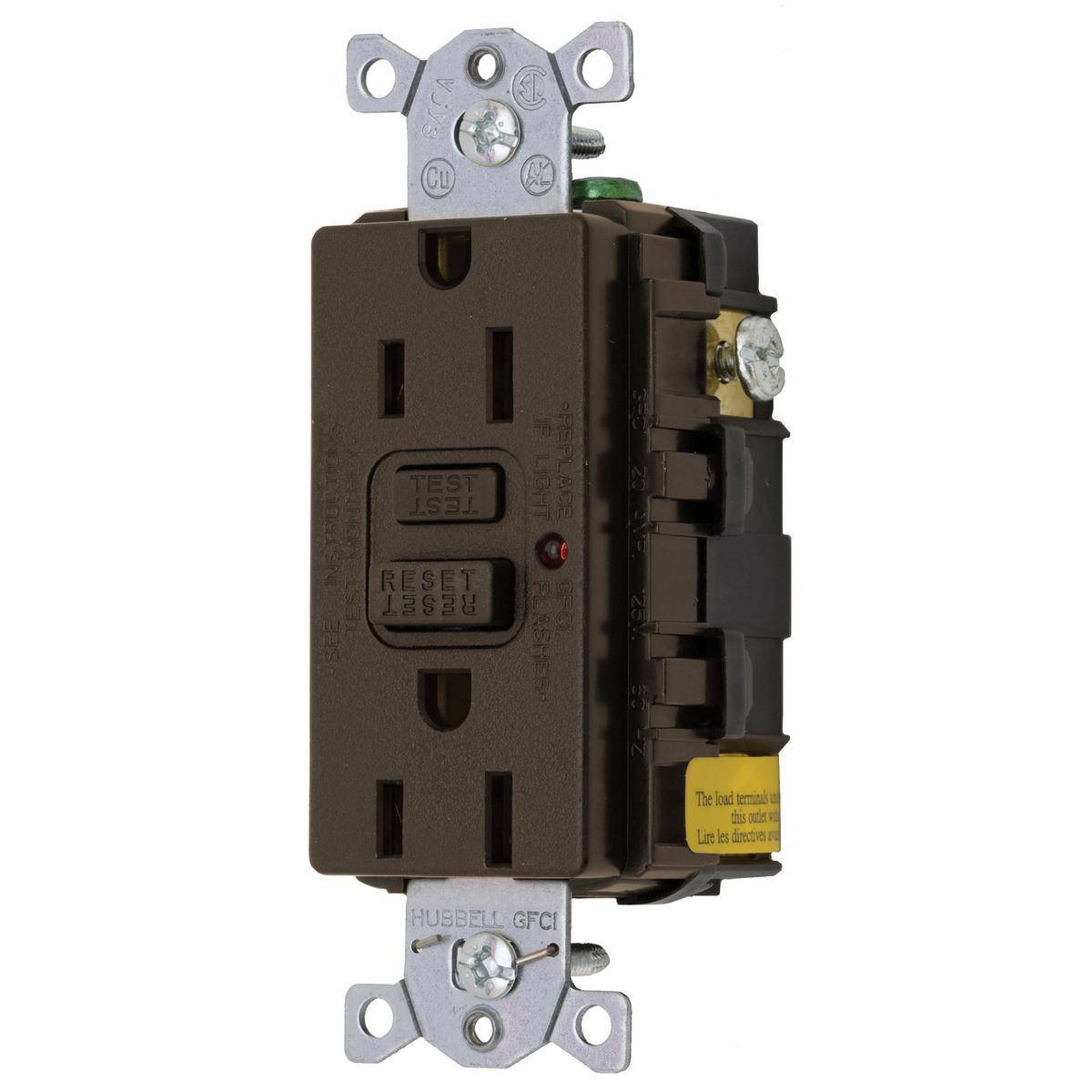

Wiring Device-Kellems Circuit Guard® GF15LA Pro 1-Phase Duplex Heavy Duty Self-Test Self-Grounding Standard Staple Straight Blade GFCI Receptacle With LED Indicator, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Short Description

Bryant CIRCUITPRO® GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto monitoring is conducted continuously within every 30 s. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Wiring Device-Kellems Circuit Guard® GFCI Receptacle, 1-Phase Duplex Heavy Duty Self-Test Self-Grounding Standard Staple Straight Blade, Series: Pro, 125 VAC, 15 A, 1/2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Industrial Grade, -30 to 150 deg F, Screw Terminal, Composite/Thermoplastic, Brown, 3.28 in H x 1.75 in W x 1.47 in D Dimensions
MFG #: GF15LA

EECO #: HUGF15LA

Brand: Wiring Device-Kellems
UPC #: 883778379000
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39121406
Material
Composite/Thermoplastic
Application
Indoor Dry Environment
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-30 to 150
Type
1-Phase Duplex Heavy Duty Self-Test Self-Grounding Standard Staple Straight Blade
Grade
Commercial/Industrial
Series
Pro
Dimensions
3.28 in H x 1.75 in W x 1.47 in D
Horsepower
1/2
Amperage Rating
15
Features
  • Patented CIRCUITPRO® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Internal back wiring clamp and guide for quick and secure termination
  • High impact and ultraviolet-resistant construction provides resilience in harsh environments
  • Protection against line and load reversal - no power to the face or downstream receptacles if device is miswired
  • Installation ease, lower labor cost with auto-grounding clip, captive mounting screws and single tab breakoff ears and full breakoff for OEM raised covers
Bryant_Electric_GF15LA_Installation_Manual
Bryant_Electric_GF15LA_Line_Drawing
Bryant_Electric_GF15LA_Specification_Sheet
