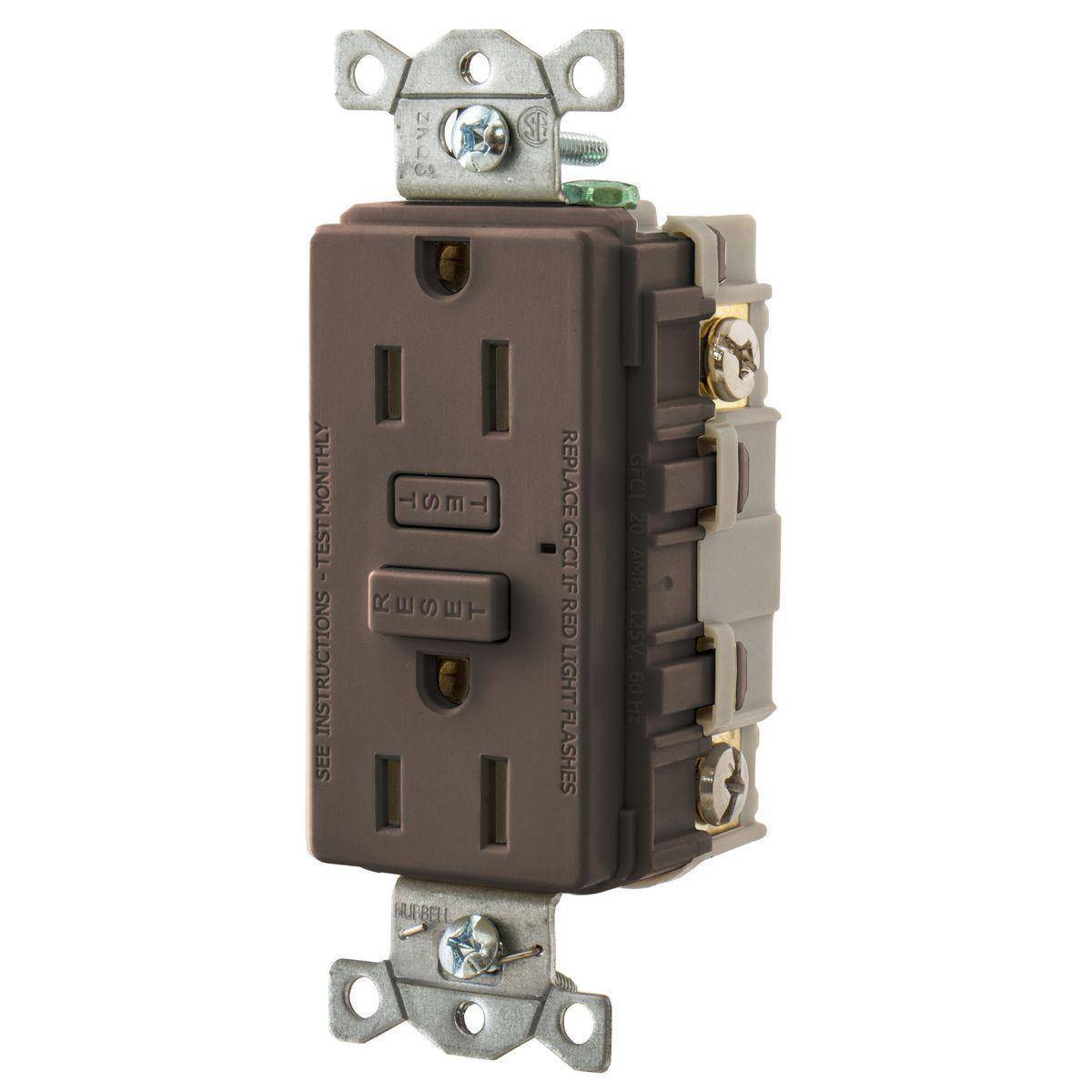

Bryant Electric CIRCUITPRO® GF15 Duplex Grounding Heavy Duty Self-Test Standard GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown
Share Share Print Print
Hubbell

Bryant Electric CIRCUITPRO® GF15 Duplex Grounding Heavy Duty Self-Test Standard GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Short Description

Bryant CIRCUITPRO® GFCI receptacles continually test and monitor for people protection capability automatically. This patented safety feature includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. GFCI auto monitoring is conducted continuously within every 30 s. Also, clear visual indicators are provided on the device face representing power status, trip condition, ground fault condition and end of life status. In addition, for added safety, power will be denied to the receptacle face if reverse wiring of line and load was to occur.

Bryant Electric CIRCUITPRO® GFCI Receptacle, Duplex Grounding Heavy Duty Self-Test Standard, 125 VAC, 15 A, 1/2 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -30 to 150 deg F, Back Wire Clamp Terminal, Nylon/Thermoplastic, Brown, 3.75 in H x 1.75 in W x 1.47 in D Dimensions
MFG #: GF15

EECO #: HUGF15

Brand: Bryant Electric
UPC #: 883778450501
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39121406
Material
Nylon/Thermoplastic
Application
Kitchens, Bathrooms, Garages, Basements, Laundry Areas, Workshops, Wet or Damp Location, Outdoor Porches and Deck Applications
Terminal Type
Back Wire Clamp
Voltage Rating
125
Number of Wires
3
Frequency Rating
60
Temperature Rating
-30 to 150
Type
Duplex Grounding Heavy Duty Self-Test Standard
Grade
Commercial
Dimensions
3.75 in H x 1.75 in W x 1.47 in D
Horsepower
1/2
Amperage Rating
15
Features
  • Patented CIRCUITPRO® self-test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost
  • Internal back wiring clamp and guide for quick and secure termination
  • High impact and ultraviolet-resistant construction provides resilience in harsh environments
  • Protection against line and load reversal - no power to the face or downstream receptacles if device is miswired
  • Installation ease, lower labor cost with auto-grounding clip, captive mounting screws and single tab breakoff ears and full breakoff for OEM raised covers
