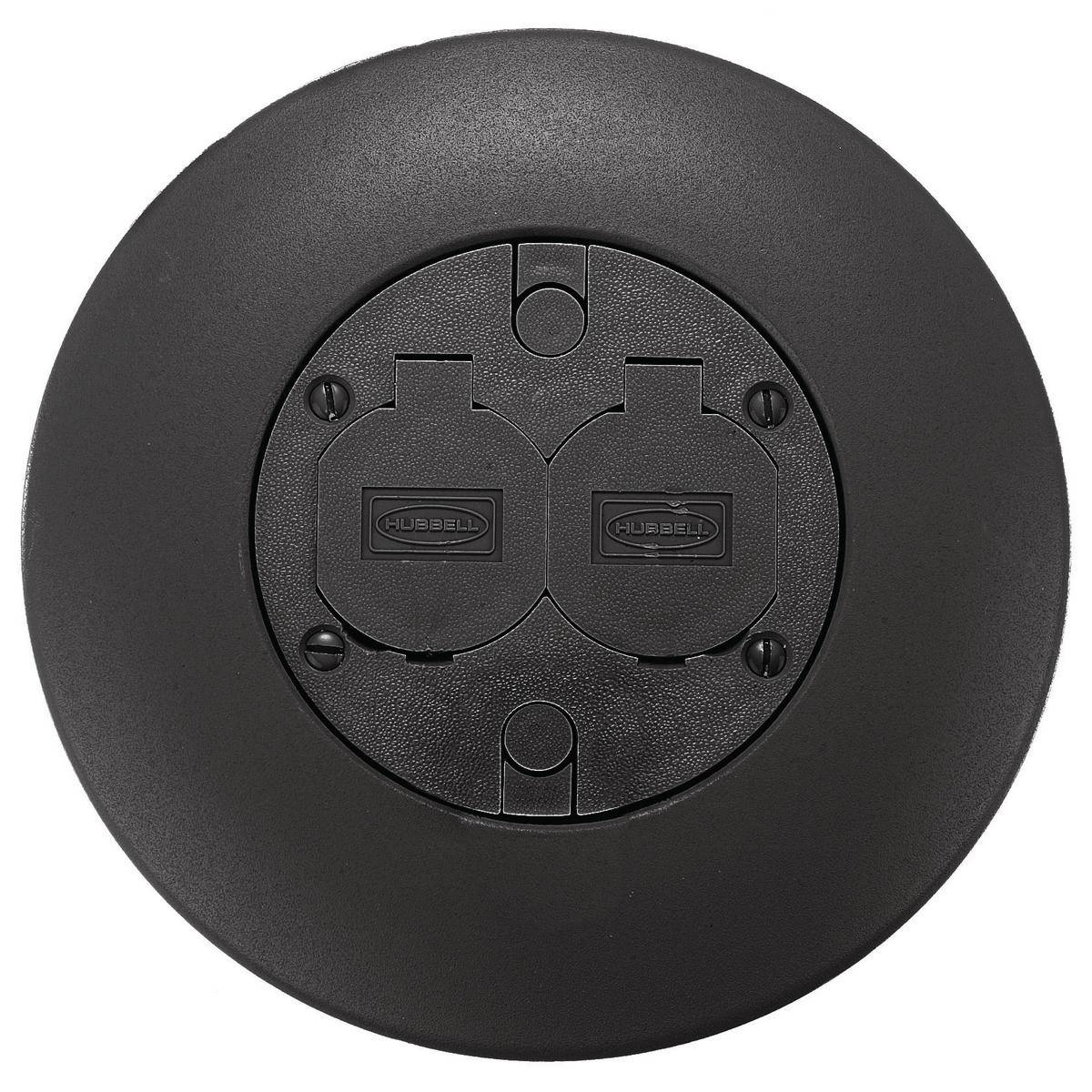

PREMISE WIRING ScrubShield® FRFBLA Fire Rated Poke Through Flush Service Fitting, 7 in Dia, Fabricated Aluminum
Share Share Print Print
Hubbell

PREMISE WIRING ScrubShield® FRFBLA Fire Rated Poke Through Flush Service Fitting, 7 in Dia, Fabricated Aluminum

Short Description

Prewired Hubbell® HBL5352 series (20 A) specification grade receptacle and two low voltage knockouts. Equipped with a cast aluminum carpet flange and a thermoplastic (ABS) duplex flap cover.

PREMISE WIRING ScrubShield® Flush Service Fitting, Fire Rated Poke Through, 7 in Diameter, Fabricated Aluminum, Black
MFG #: FRFBLA

EECO #: HUFRFBLA

Brand: Premise Wiring
UPC #: 783585396033
Attributes
Features
Documents
Product Information
Attributes
Color
Black
Shape
Round
Finish
Painted
UNSPSC
39121328
Material
Fabricated Aluminum
Application
For fire rated poke-through and in-floor delivery systems
Knockout Size
1/2
Mounting Type
Hole
Number of Outlets
3.0000
Number of Knockouts
2.0000
Type
Fire Rated Poke Through
Diameter
7
Includes
Pre-Wired 20 A Duplex Receptacle, Non-metallic Flip Lid Cover With (2) 1/2 in Low Voltage Feed-through Holes, Painted Aluminum Flange
Thickness
0.51
Features
  • Equipped with a cast aluminum carpet flange and a thermoplastic (ABS) duplex flap cover
  • Minimum of 2 ft on centers and not more than one unit per 65 sq-ft floor area in each span spacing
  • Painted cast aluminum/solid brass, brushed and lacquered carpet flange material
  • For use in 1, 1-1/2, 2, 3 or 4 hr rated unprotected reinforced concrete floors or in 1, 2 or 3 hr rated floors employing steel floor units and concrete topping (D900 series design)
  • Fabricated construction
  • 2-1/4 in (over metal deck) to 7 in-floor thickness range
