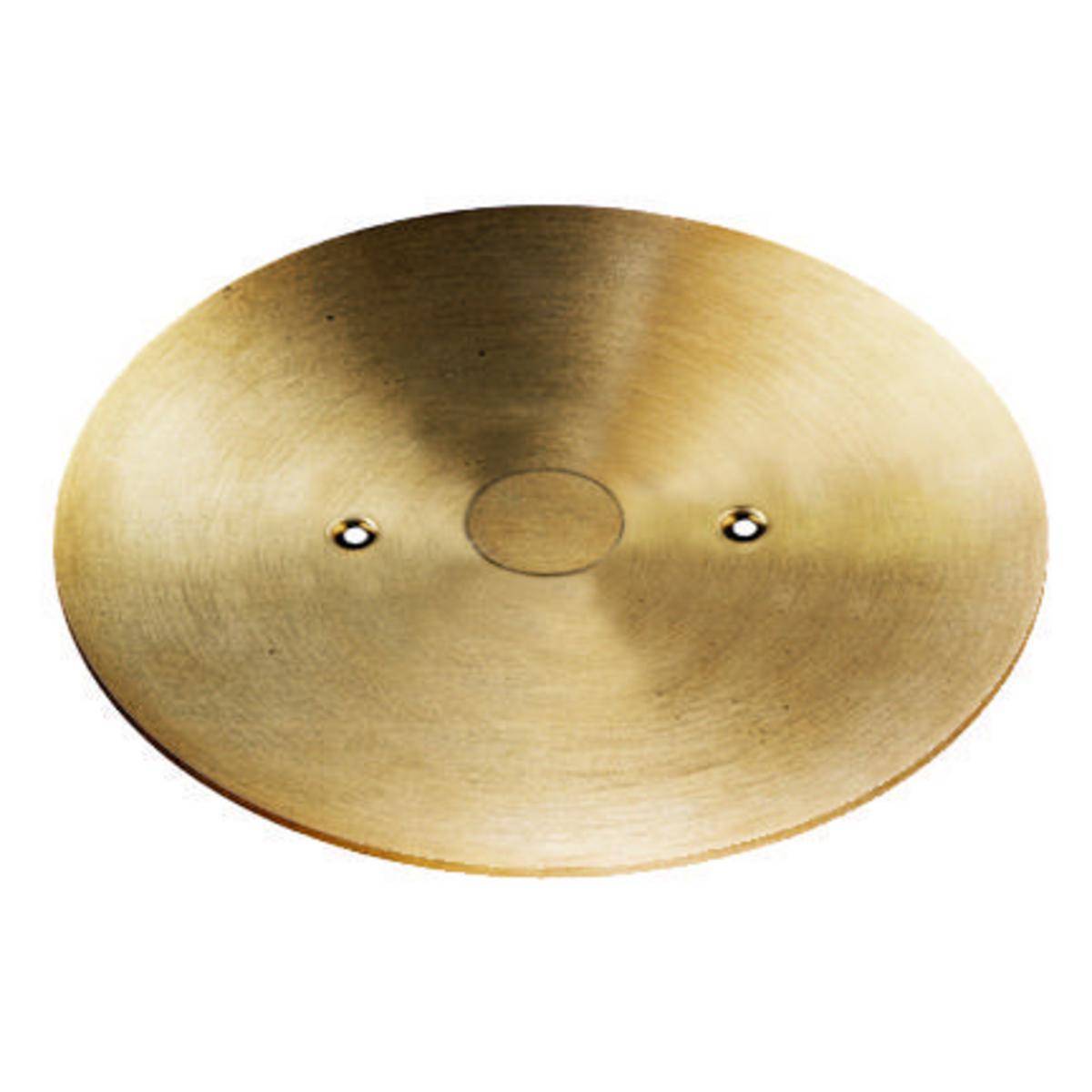

Wiring Device-Kellems FRF1BRS 1-Service Large Capacity Standard Furniture Feed Plate
Share Share Print Print
Hubbell

Wiring Device-Kellems FRF1BRS 1-Service Large Capacity Standard Furniture Feed Plate

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

Upgrade your workspace with the Wiring Device-Kellems FRF1BRS Large Capacity Furniture Feed Plate, designed for efficiency and style. Featuring a flush mount design, this plate offers 1 outlet and 3 gangs, perfect for seamless integration in any setting.Enhanced by AI

Wiring Device-Kellems, FRF1BRS, Furniture Feed Plate, 1-Service Large Capacity Standard, 1 Outlets, 3 Gangs, 1 Knockouts, 3/4 in Knockout, Flush Mounting, Brass Plated

MFG #: FRF1BRS

EECO #: HUFRF1BRS

Brand: Wiring Device-Kellems
UPC #: 783585109602
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Finish
Brass Plated
UNSPSC
39121328
Material
Brass
Application
For 3 in fire rated poke-through, through-floor fitting and in-floor delivery system
Knockout Size
3/4
Mounting Type
Flush
Number of Gangs
3
Number of Outlets
1.0000
Number of Knockouts
1.0000
Type
1-Service Large Capacity Standard
Includes
(1) Pre-Wired 20 A Duplex Receptacle, (1) Brass Flip-Lid Cover with (2) 0.5 in Dia Low Voltage Feed-Through Hole and (1) Brass Flange
Features
  • For use in 1, 1.5, 2, 3-gang or 4 hr rated unprotected reinforced concrete floors or in 1, 2 or 3-gang hr rated floors employing steel floor units and concrete topping (D900 series design) fire rating
  • 2.25 in (over metal deck) to 7 in (57.2 to 117.8) floor thickness range
  • Minimum of 2 ft on centers and not more than one unit per 65 sq-ft floor area in each span spacing
  • 3-gang in core hole diameter
  • 0.75 in EMT conduit tubes
  • Up to (200) #22 AWG telephone/data conductors (or four 25-pair telephone cables)
  • Any combination of wire that does not exceed 0.11 sq-in of total allowable copper cross sectional area is acceptable
  • Aluminum cover and painted aluminum flange
  • Fabricated construction
  • Aluminum cover with (1) KO to accept a 3/4 in connector
  • Painted aluminum flange
Wiring_Device_Kellems_FRF1BRS_Specification_Sheet
IDW_DOCUMENT_69d5445353b5d4f1b727bc5f951f180222dee7123a3b66f65755a67b1b4010a7
iSTATION_IM3RF1EI_Catalog
Wiring_Device_Kellems_FRF1BK_Catalog
