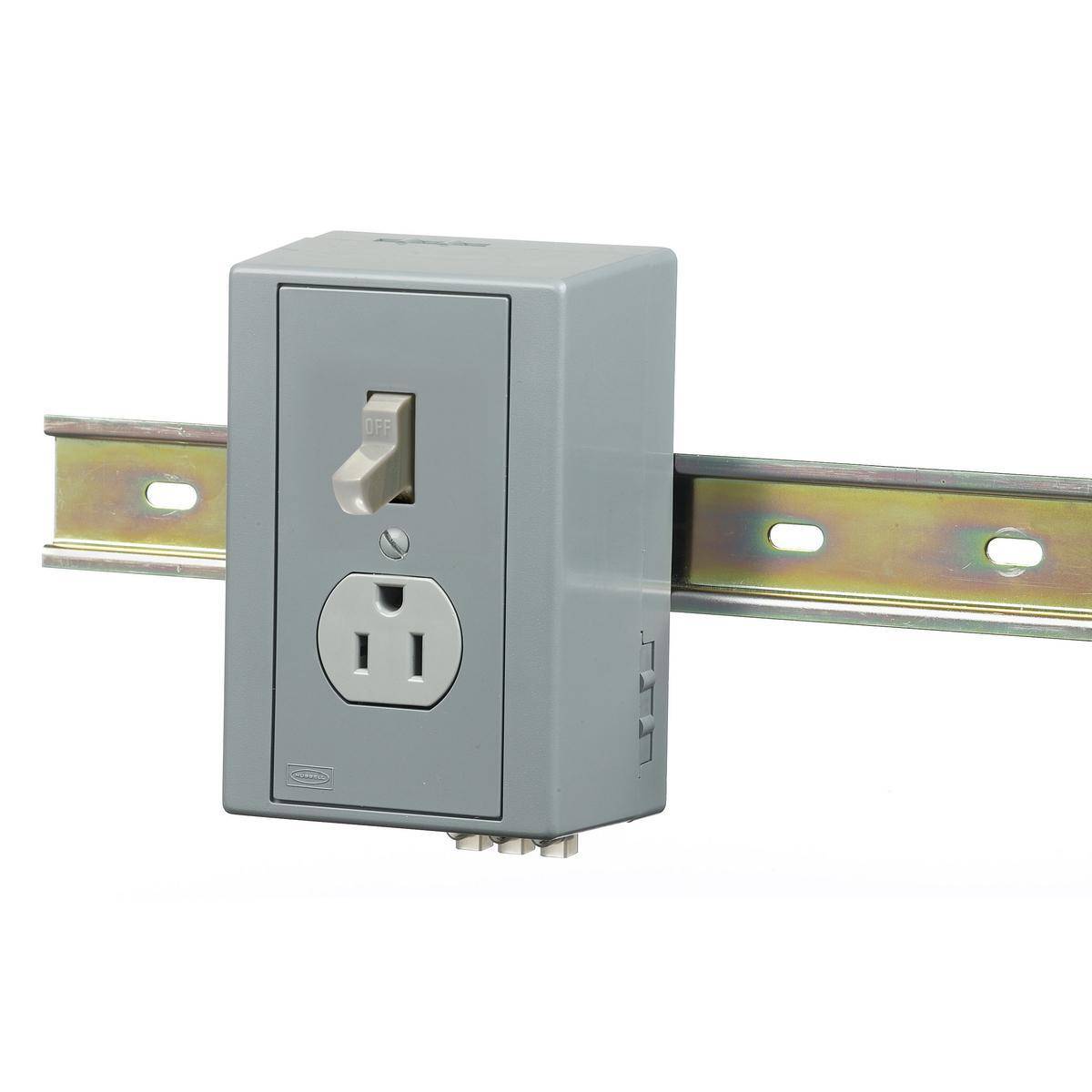

Hubbell® DRUB6404 Combo Switch Receptacle Din Rail Utility Box, 15 A, 125 VAC, 0.5 hp, 2 Poles, 3 Wires
Hubbell® DRUB6404 Combo Switch Receptacle Din Rail Utility Box, 15 A, 125 VAC, 0.5 hp, 2 Poles, 3 Wires
Hubbell® DRUB6404 Combo Switch Receptacle Din Rail Utility Box, 15 A, 125 VAC, 0.5 hp, 2 Poles, 3 Wires
Hubbell® DRUB6404 Combo Switch Receptacle Din Rail Utility Box, 15 A, 125 VAC, 0.5 hp, 2 Poles, 3 Wires
Share Share Print Print
Hubbell

Hubbell® DRUB6404 Combo Switch Receptacle Din Rail Utility Box, 15 A, 125 VAC, 0.5 hp, 2 Poles, 3 Wires

Short Description

Hubbell's DIN Rail Utility Box offers a labour saving way to provide utility power to any control cabinet. DRUBs come pre-wired with a variety of receptacles or as pre-wired "kits" for end-user customization. Installing the DIN Rail Utility Box is as easy as snapping the box onto a 35 mm DIN rail and connecting the Line, Neutral and Ground wires to the terminal block, utility power for fans, lights, laptop computers, testers or any other need is now at your disposal.

Hubbell® Din Rail Utility Box, Combo Switch Receptacle, 15 A, 125 VAC, 0.5 hp Electrical Rating, 2 Pole, 3 Wires, Composite, Gray, 3.31 in W x 2.43 in D x 5.62 in H Dimensions
MFG #: DRUB6404

EECO #: HUDRUB6404

Brand: Hubbell
UPC #: 783585108292
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121310
Material
Composite
Wire Size
14 to 12
Number of Wires
3
Mounting
DIN Rail/Surface
Enclosure
NEMA 5-20R
Type
Combo Switch Receptacle
Dimensions
3.31 in W x 2.43 in D x 5.62 in H
Dielectric Strength
2000
Features
  • It provides utility power to any control cabinet
  • Brass box terminals
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
  • Ratings are a permanent part of the device
  • 14 to 12 AWG copper stranded or solid conductor only terminal accommodation
  • Withstands 2000 VAC minimum dielectric voltage
  • Certified for current interrupting at full rated current interrupting
  • Ratings are a permanent part of the device product identification
