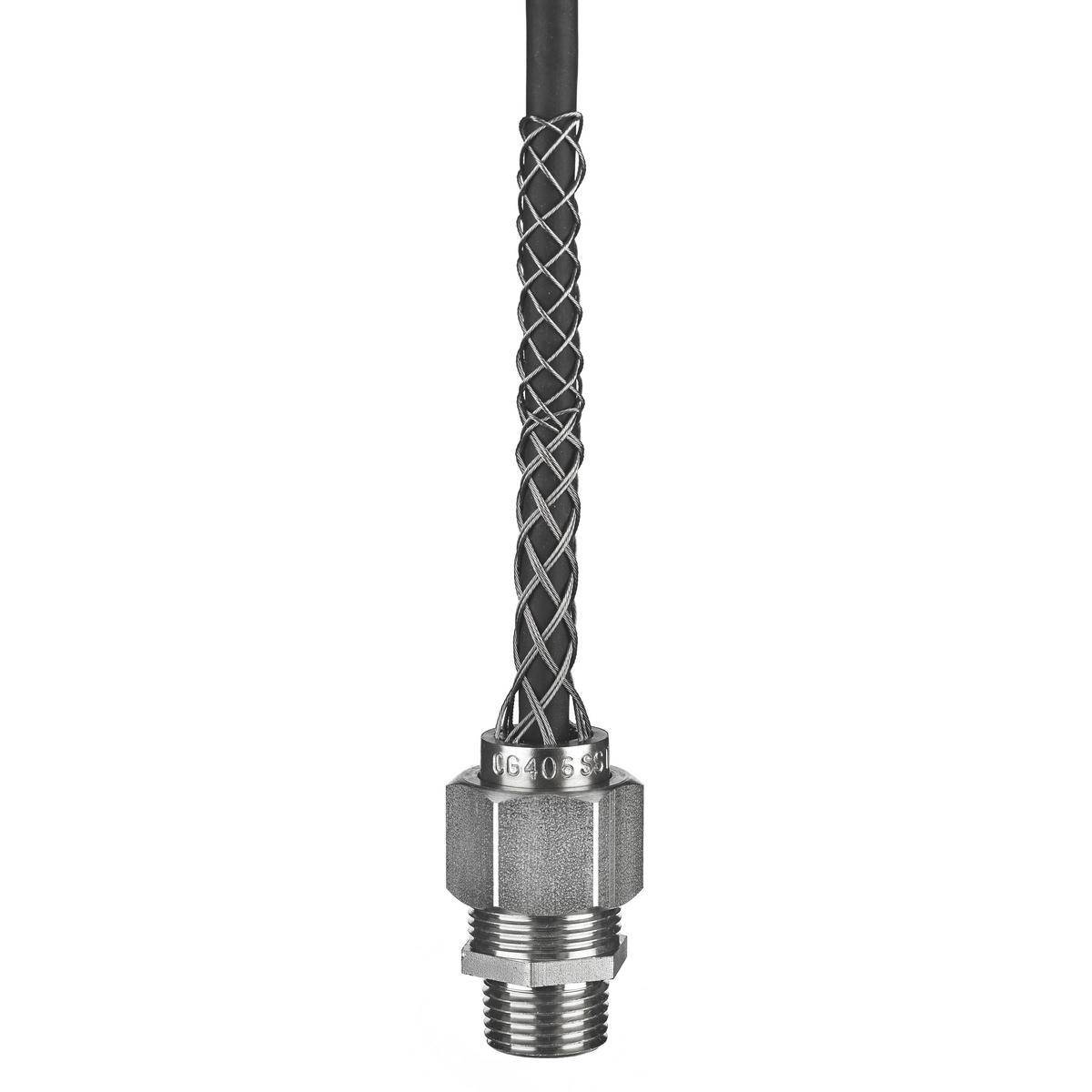

Wiring Device-Kellems CG406SST Form 2 Standard Straight Deluxe Cord Grip, 1/2 in Trade, (1) Conductors, 1/4 to 3/8 in Cable Openings, Stainless Steel
Share Share Print Print
Hubbell

Wiring Device-Kellems CG406SST Form 2 Standard Straight Deluxe Cord Grip, 1/2 in Trade, (1) Conductors, 1/4 to 3/8 in Cable Openings, Stainless Steel

Short Description

Deluxe cord grips help to alleviate pull tension on terminals, control cable arc of bend, prevent cord pull out and provide a liquidtight seal. They are offered with either aluminum, stainless steel or nylon fittings in a variety of configurations and NPT thread sizes. Additionally, a completely non-metallic product is available.

Wiring Device-Kellems, CG406SST, Deluxe Cord Grip, Form 2 Standard Straight, 1/2 in Trade, 1 Conductors, Cable Openings: 1/4 to 3/8 in, Jacketed Cable, MNPT Straight Connection, Stainless Steel, Metallic, -30 to 225 deg F, 1.3 in Dia x 1.1 in L Dimensions
MFG #: CG406SST

EECO #: HUCG406SST

Brand: Wiring Device-Kellems
UPC #: 783585334592
Attributes
Features
Documents
Product Information
Attributes
Color
Metallic
UNSPSC
39121431
Material
Stainless Steel
Cable Type
Jacketed
Trade Size
1/2
Application
Wiring Enclosures, Pendant Stations, Hand Tools, Construction, Processing and Material Handling Equipment, Pumps, Motors, Machine Tool and Wet Location Applications
Connection Type
MNPT Straight
Temperature Rating
-30 to 225
Number of Conductors
1
Type
Form 2 Standard Straight
Dimensions
1.3 in Dia x 1.1 in L
Features
  • Controls cable arc-of-bend
  • Provides a liquidtight seal
  • Corrosion resistant stainless steel mesh with aluminum collar
  • An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
  • 0.859 to 0.906 in recommended knockout hole
  • 0.54 in thread
  • 0.63 in Dia throat
  • 1.16 in H throat across corner
  • 1/2-14 tapered thread
  • Neoprene bushing is oil and watertight
  • Helps to prevent cable pull out
  • Prevents liquids from running through the fitting into the enclosure
  • Specific uses are wiring enclosures, pendant stations, hand tools, construction, processing and material handling equipment, pumps, motors and machine tools
