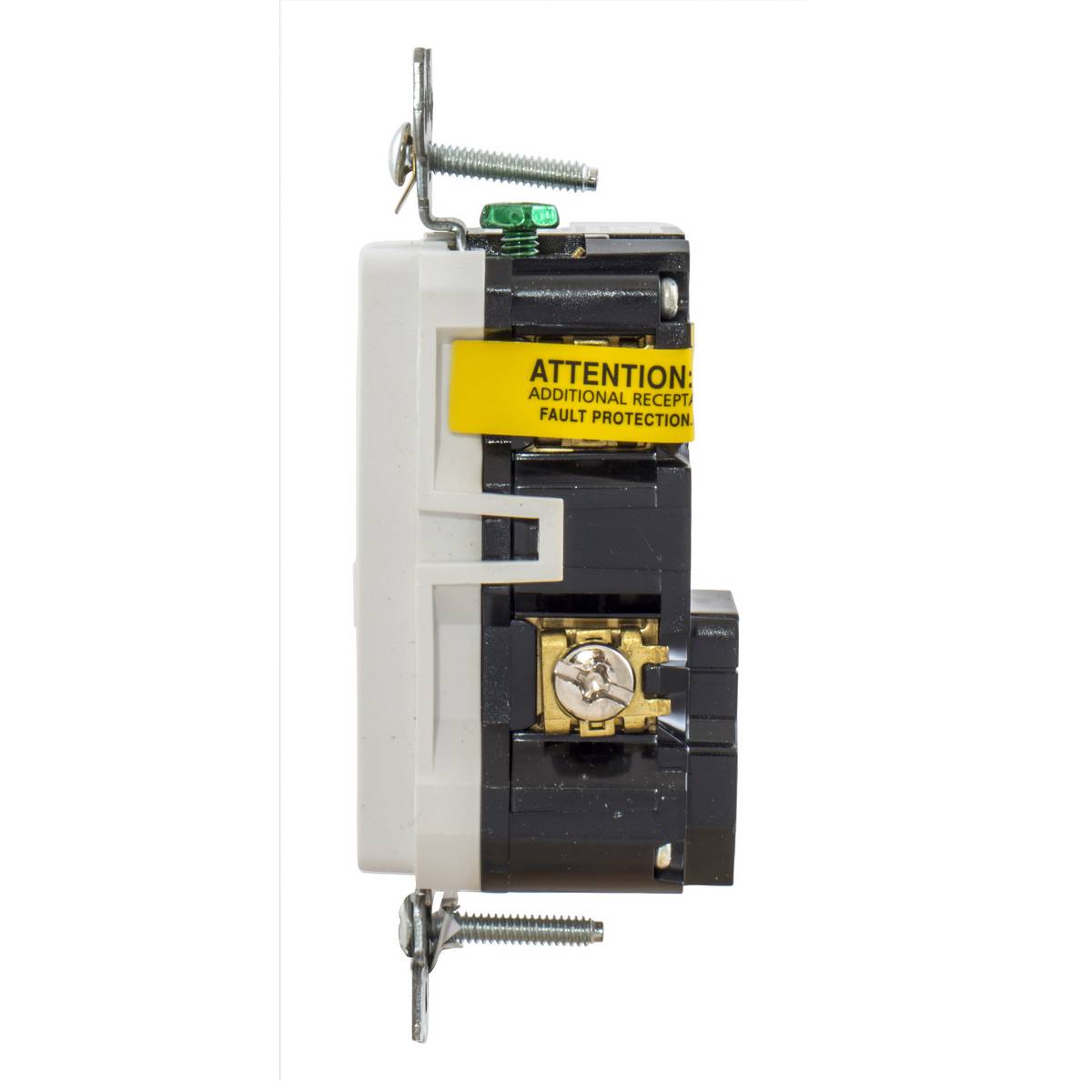

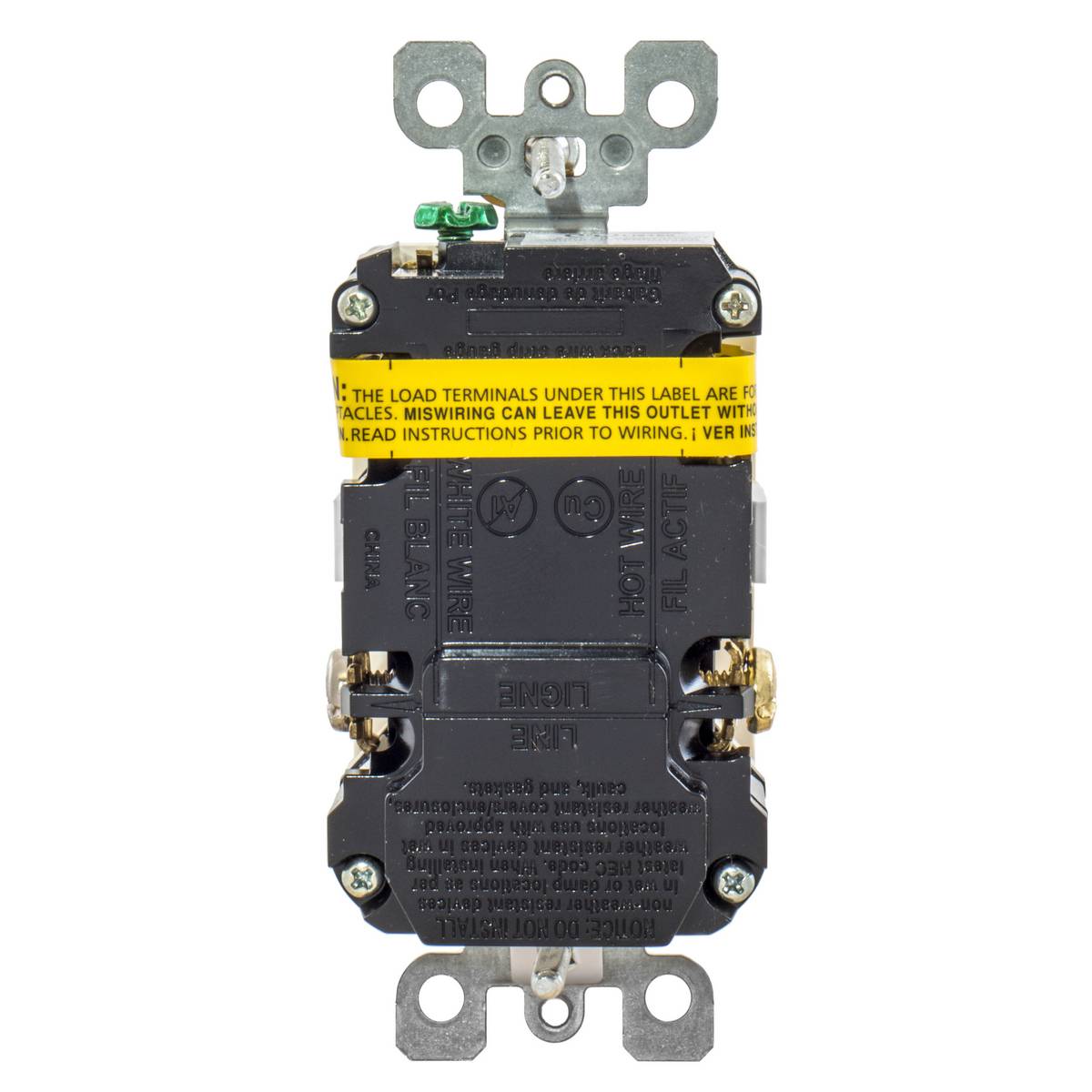

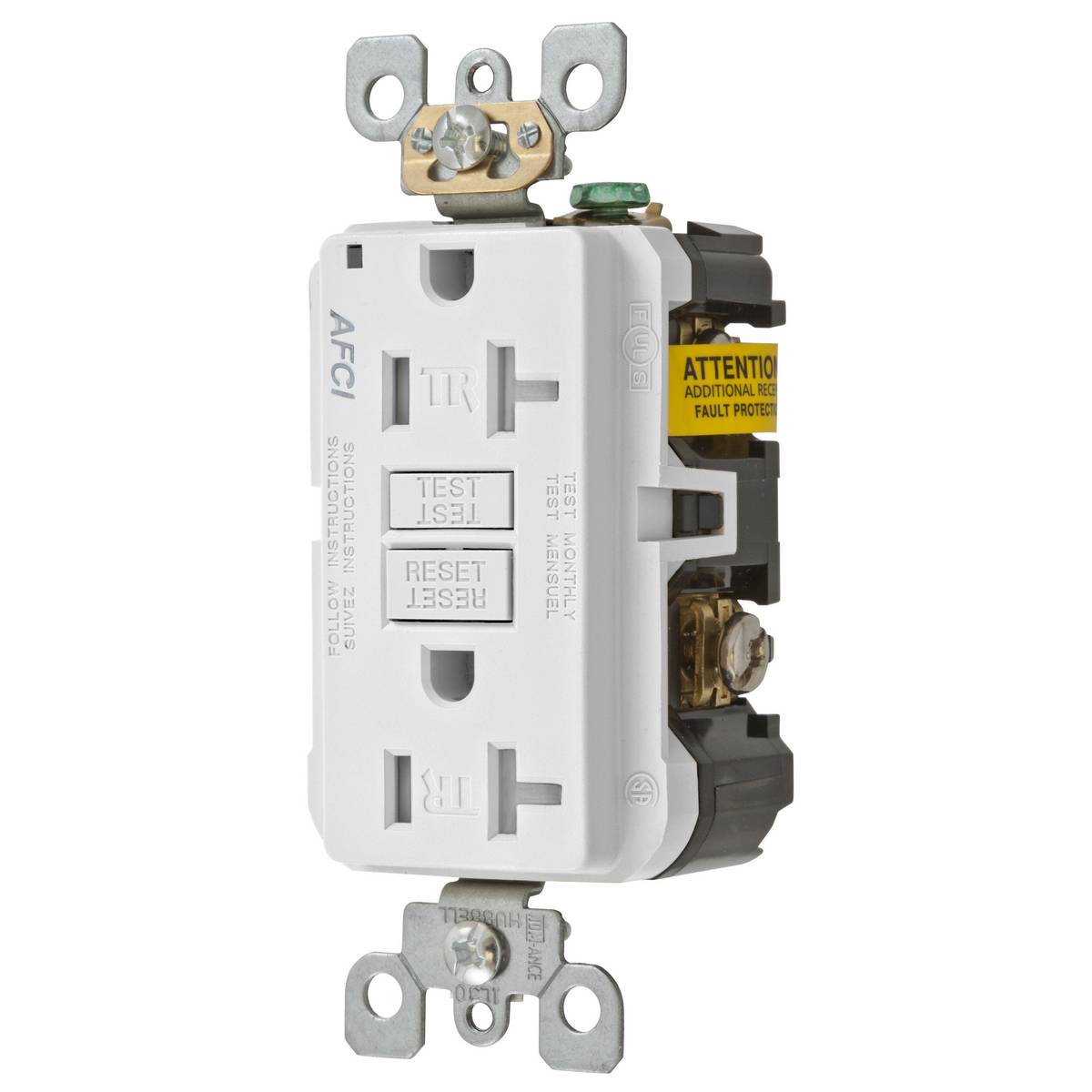

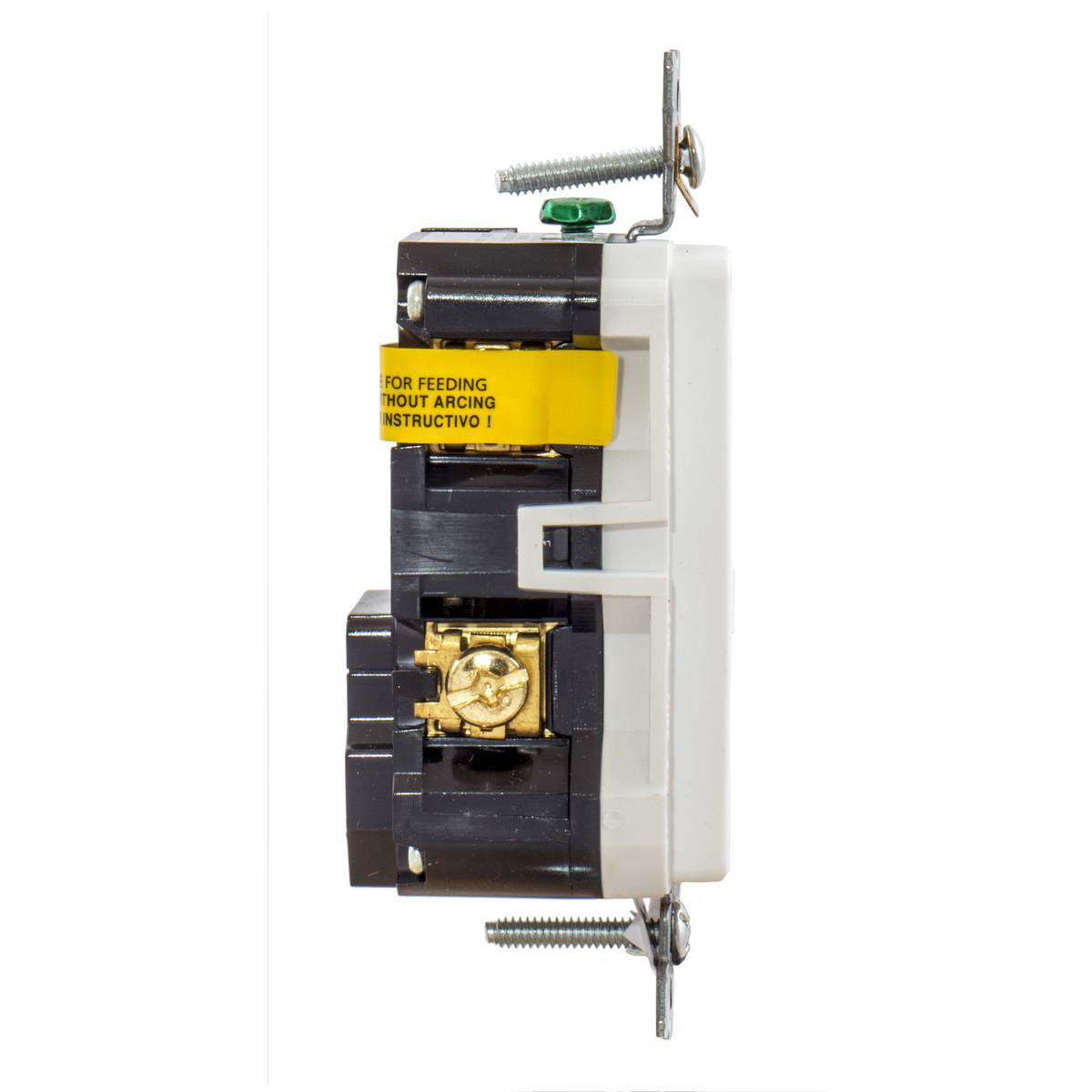

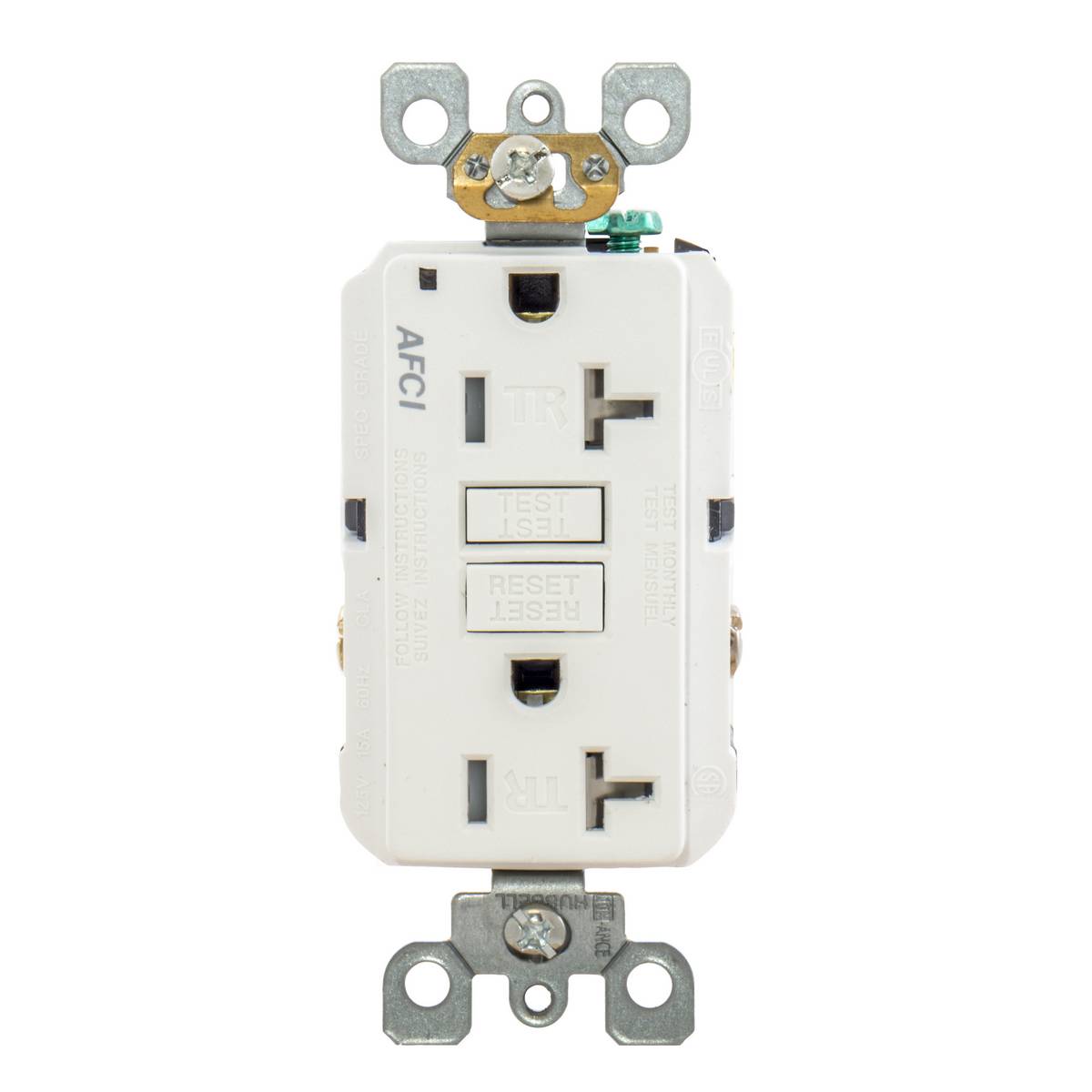

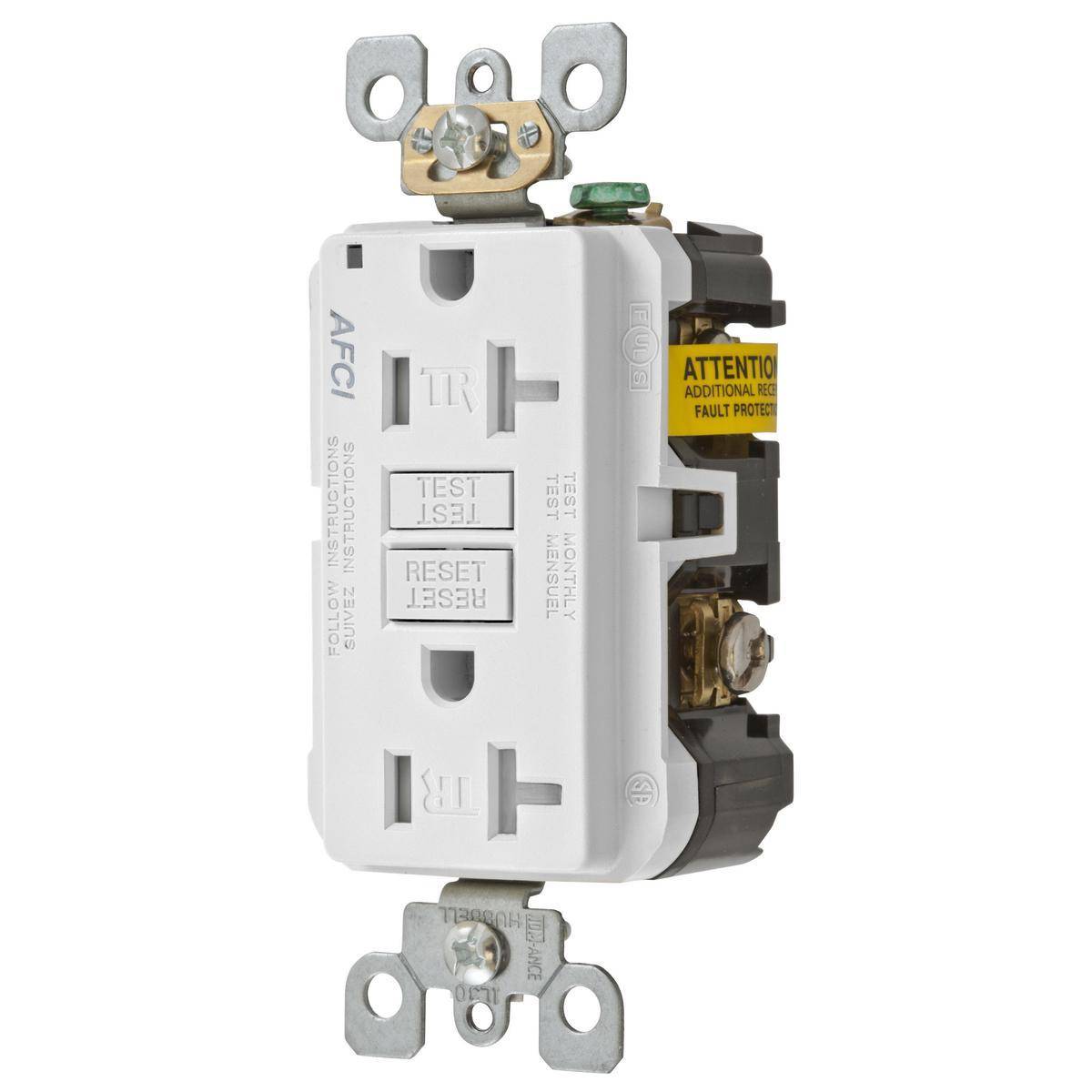

Bryant Electric AFR20TRW 1-Phase Decorator Duplex Grounding Standard Tamper Resistant AFCI Receptacle With Tamper Resistant Outlets and LED Indicator, 125 VAC, 20 A, 2 Poles, 3 Wires, White

Short Description

Arc fault circuit interrupter (AFCI) protection shall be provided in dwelling units for all 120 VAC, single phase, 15 A and 20 A branch circuits supplying outlets or devices in kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas or similar rooms or areas. AFCI protection shall also be installed in dormitory unit bedrooms, living rooms, hallways, closets and similar rooms.

Bryant Electric AFCI Receptacle, 1-Phase Decorator Duplex Grounding Standard Tamper Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Residential Grade, -30 to 150 deg F, Screw Terminal, Composite/Thermoplastic, White, 4.21 in H x 1.68 in W x 1.43 in D Dimensions
MFG #: AFR20TRW

EECO #: HUAFR20TRW

Brand: Bryant Electric
UPC #: 783585426167
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121406
Material
Composite/Thermoplastic
Application
Commercial, Industrial and Residential Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Temperature Rating
-30 to 150
Type
1-Phase Decorator Duplex Grounding Standard Tamper Resistant
Grade
Commercial/Residential
Dimensions
4.21 in H x 1.68 in W x 1.43 in D
Horsepower
1
Amperage Rating
20
Features
  • Meets new 2017 national electric code for AFCI protection
  • Meets or exceeds UL requirements for tripping time on series and parallel arcs
  • Tamper resistant and self-grounding construction are standard features
  • Automatically tests the AFCI each time the reset button is pressed in place
  • Green power ON LED indicator
  • No reset when tested if AFCI functionality is compromised
  • 14 to 10 AWG terminal
  • 20 A protection feed-through
  • Outlet branch circuit arc fault receptacle with tamper resistant outlets 20 A, 125 VAC feed-through and LED indicator
  • Terminal screw connection
  • Indoor dry unless protected by additional mean environmental conditions
  • Straight blade receptacle
  • 2500 W power rating
