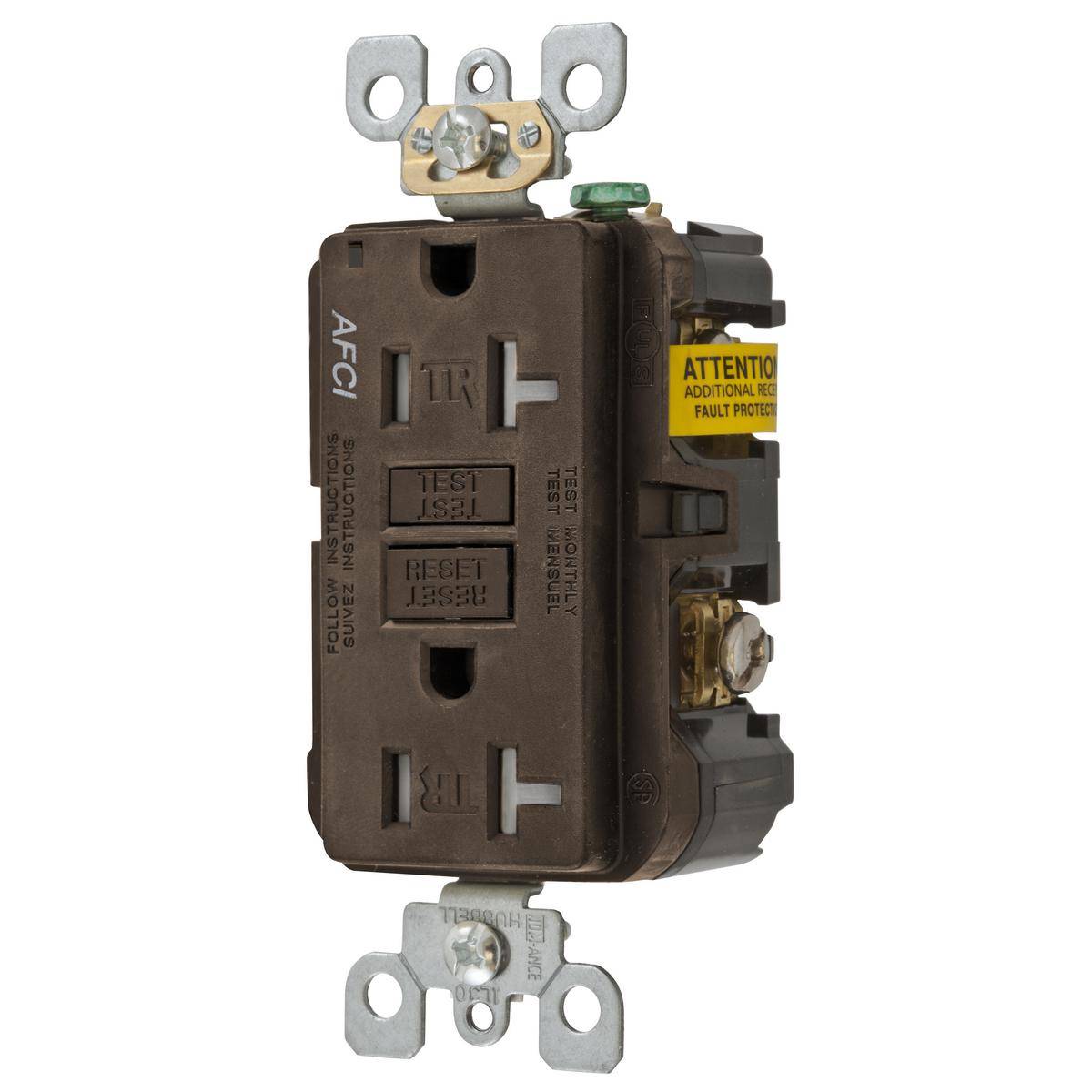

Bryant Electric AFR20TR 1-Phase Duplex Self-Grounding Straight Blade Tamper-Resistant Arc Fault Receptacle With 125 VAC 20 A Feed-Through Tamper Resistant Outlet, LED Indicator, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown
Share Share Print Print
Hubbell

Bryant Electric AFR20TR 1-Phase Duplex Self-Grounding Straight Blade Tamper-Resistant Arc Fault Receptacle With 125 VAC 20 A Feed-Through Tamper Resistant Outlet, LED Indicator, 125 VAC, 20 A, 2 Poles, 3 Wires, Brown

Short Description

Arc fault circuit interrupter (AFCI) protection shall be provided in dwelling units for all 120 VAC, single phase, 15 A and 20 A branch circuits supplying outlets or devices in kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas or similar rooms or areas. AFCI protection shall also be installed in dormitory unit bedrooms, living rooms, hallways, closets and similar rooms.

Bryant Electric Arc Fault Receptacle, 1-Phase Duplex Self-Grounding Straight Blade Tamper-Resistant, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Residential Grade, -30 to 150 deg F, Back/Side Wire Terminal, Nylon, Brown, 4.21 in H x 1.68 in W x 1.43 in D Dimensions
MFG #: AFR20TR

EECO #: HUAFR20TR

Brand: Bryant Electric
UPC #: 783585426211
Attributes
Features
Documents
Product Information
Attributes
Color
Brown
UNSPSC
39121406
Material
Nylon
Application
For providing protection against fires, injuries, damages, also in bedroom, living room, library, sunroom, family room, closet, laundry areas, rec room, dining room, parlor, kitchen, den, housing, hotel, university dorm, healthcare facility and residential
Terminal Type
Back/Side Wire
Voltage Rating
125
Number of Wires
3
Temperature Rating
-30 to 150
Type
1-Phase Duplex Self-Grounding Straight Blade Tamper-Resistant
Grade
Commercial/Residential
Dimensions
4.21 in H x 1.68 in W x 1.43 in D
Horsepower
1
Amperage Rating
20
Features
  • Green power on LED indicator
  • Automatically tests the AFCI each time the reset button is pressed in place
  • No reset when tested if AFCI functionality is compromised
