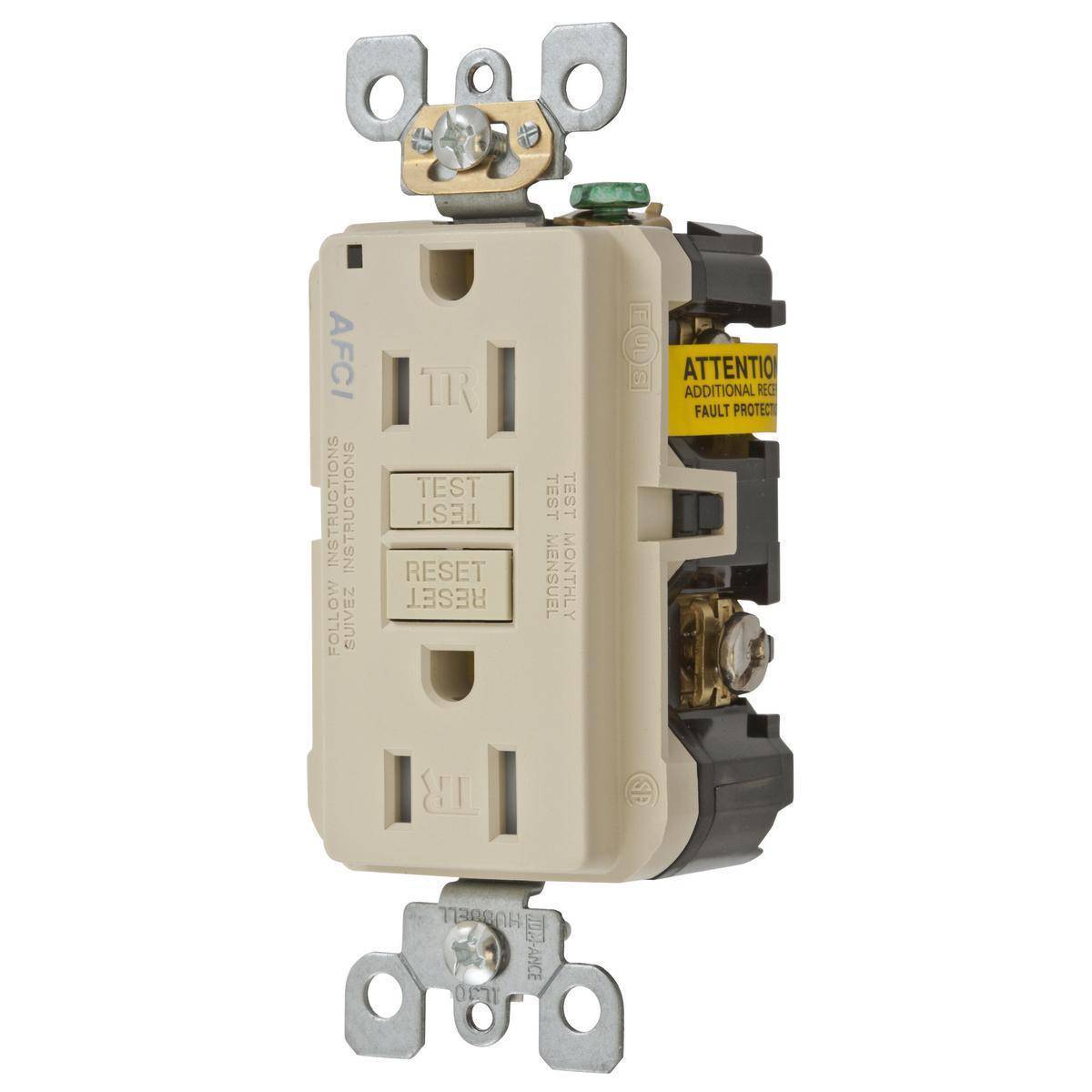

Wiring Device-Kellems AFR15TRI Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory

Short Description

Arc fault circuit interrupter (AFCI) protection shall be provided in dwelling units for all 120 VAC, single phase, 15 A and 20 A branch circuits supplying outlets or devices in kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas or similar rooms or areas. AFCI protection shall also be installed in dormitory unit bedrooms, living rooms, hallways, closets and similar rooms.

Wiring Device-Kellems, AFR15TRI, Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 VAC, 15 A, 1 hp, 2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Residential Grade, -30 to 150 deg F, Screw Terminal, Thermoplastic/Composite, Ivory, 1.31 in W x 1.29 in D x 4.21 in H Dimensions
MFG #: AFR15TRI

EECO #: HUAFR15TRI

Brand: Wiring Device-Kellems
UPC #: 783585426112
Attributes
Features
Documents
Product Information
Attributes
Color
Ivory
UNSPSC
39121406
Material
Thermoplastic/Composite
Application
Commercial, Industrial and Residential Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Temperature Rating
-30 to 150
Type
1-Phase Decorator Duplex Standard Tamper Resistant Screw Mount
Grade
Commercial/Residential
Dimensions
1.31 in W x 1.29 in D x 4.21 in H
Horsepower
1 hp, 2 hp
Amperage Rating
15
Features
  • Meets new 2017 national electric code for AFCI protection
  • Meets or exceeds UL requirements for tripping time on series and parallel arcs
  • Tamper resistant and self-grounding construction are standard features
  • Automatically tests the AFCI each time the reset button is pressed in place
  • Green power ON LED indicator
  • No reset when tested if AFCI functionality is compromised
  • 14 to 10 AWG terminal
  • 20 A protection feed-through
  • Outlet branch circuit arc fault receptacle with tamper resistant outlets 20 A, 125 VAC feed-through and LED indicator
  • Terminal screw connection
  • Indoor dry unless protected by additional mean environmental conditions
  • Straight blade receptacle
  • 1500 W wattage
