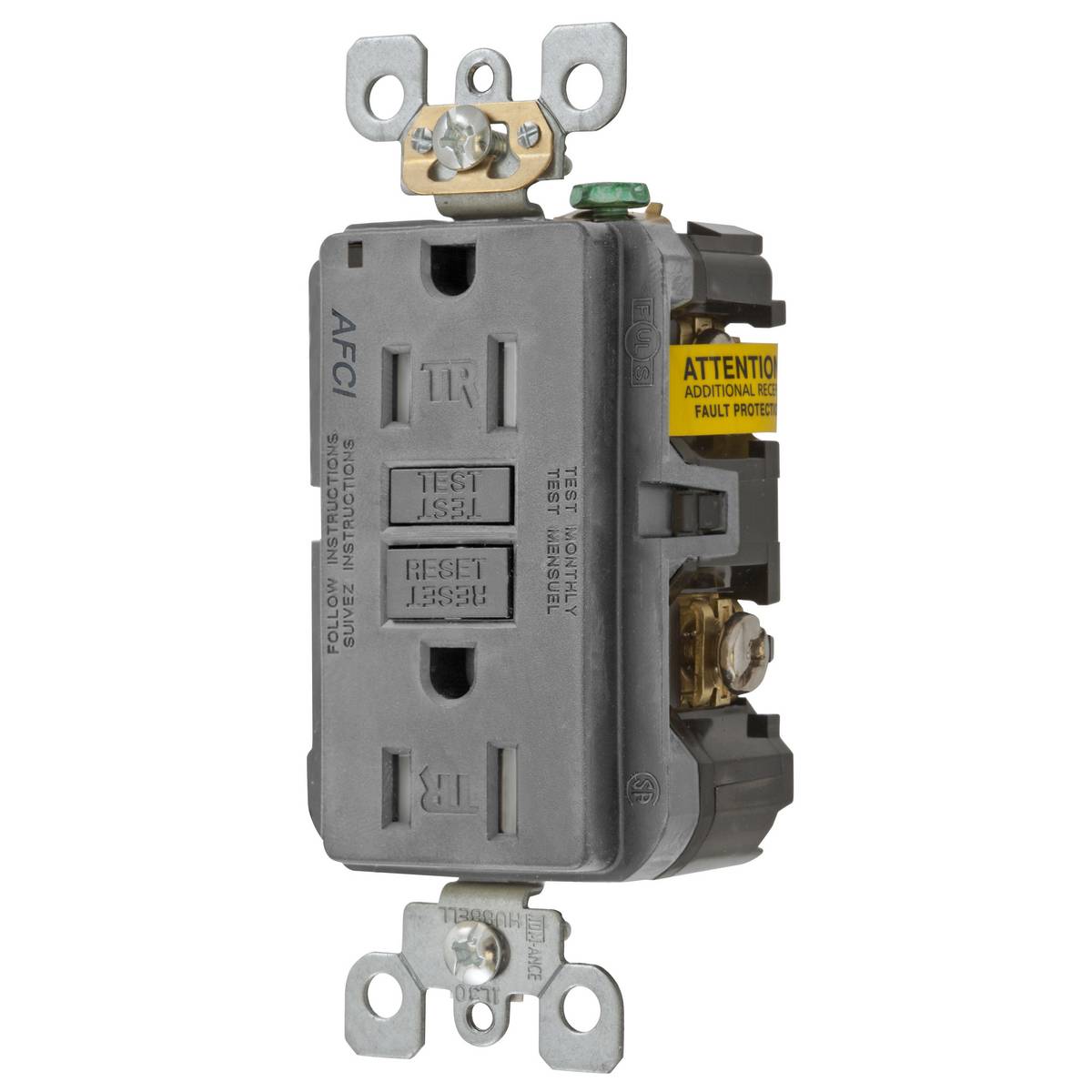

Wiring Device-Kellems AFR15TRGY Duplex Tamper-Resistant Arc Fault Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Wiring Device-Kellems AFR15TRGY Duplex Tamper-Resistant Arc Fault Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Wiring Device-Kellems AFR15TRGY Duplex Tamper-Resistant Arc Fault Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Wiring Device-Kellems AFR15TRGY Duplex Tamper-Resistant Arc Fault Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Share Share Print Print
Hubbell

Wiring Device-Kellems AFR15TRGY Duplex Tamper-Resistant Arc Fault Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray

Short Description

Arc fault circuit interrupter (AFCI) protection shall be provided in dwelling units for all 120 VAC, single phase, 15 A and 20 A branch circuits supplying outlets or devices in kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas or similar rooms or areas. AFCI protection shall also be installed in dormitory unit bedrooms, living rooms, hallways, closets and similar rooms.

Wiring Device-Kellems, AFR15TRGY, Arc Fault Receptacle, Duplex Tamper-Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -30 to 150 deg F, Back/Side Wire Terminal, Nylon, Gray, 1.31 in W x 1.29 in D x 4.21 in H Dimensions
MFG #: AFR15TRGY

EECO #: HUAFR15TRGY

Brand: Wiring Device-Kellems
UPC #: 783585426136
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
UNSPSC
39121406
Material
Nylon
Application
Commercial and Residential Applications
Terminal Type
Back/Side Wire
Voltage Rating
125
Number of Wires
3
Temperature Rating
-30 to 150
Type
Duplex Tamper-Resistant
Grade
Commercial
Dimensions
1.31 in W x 1.29 in D x 4.21 in H
Horsepower
1/2
Amperage Rating
15
Features
  • Meets new 2017 national electric code for AFCI protection
  • Meets or exceeds UL requirements for tripping time on series and parallel arcs
  • Tamper resistant and self-grounding construction are standard features
  • Automatically tests the AFCI each time the reset button is pressed in place
  • Green power ON LED indicator
  • No reset when tested if AFCI functionality is compromised
