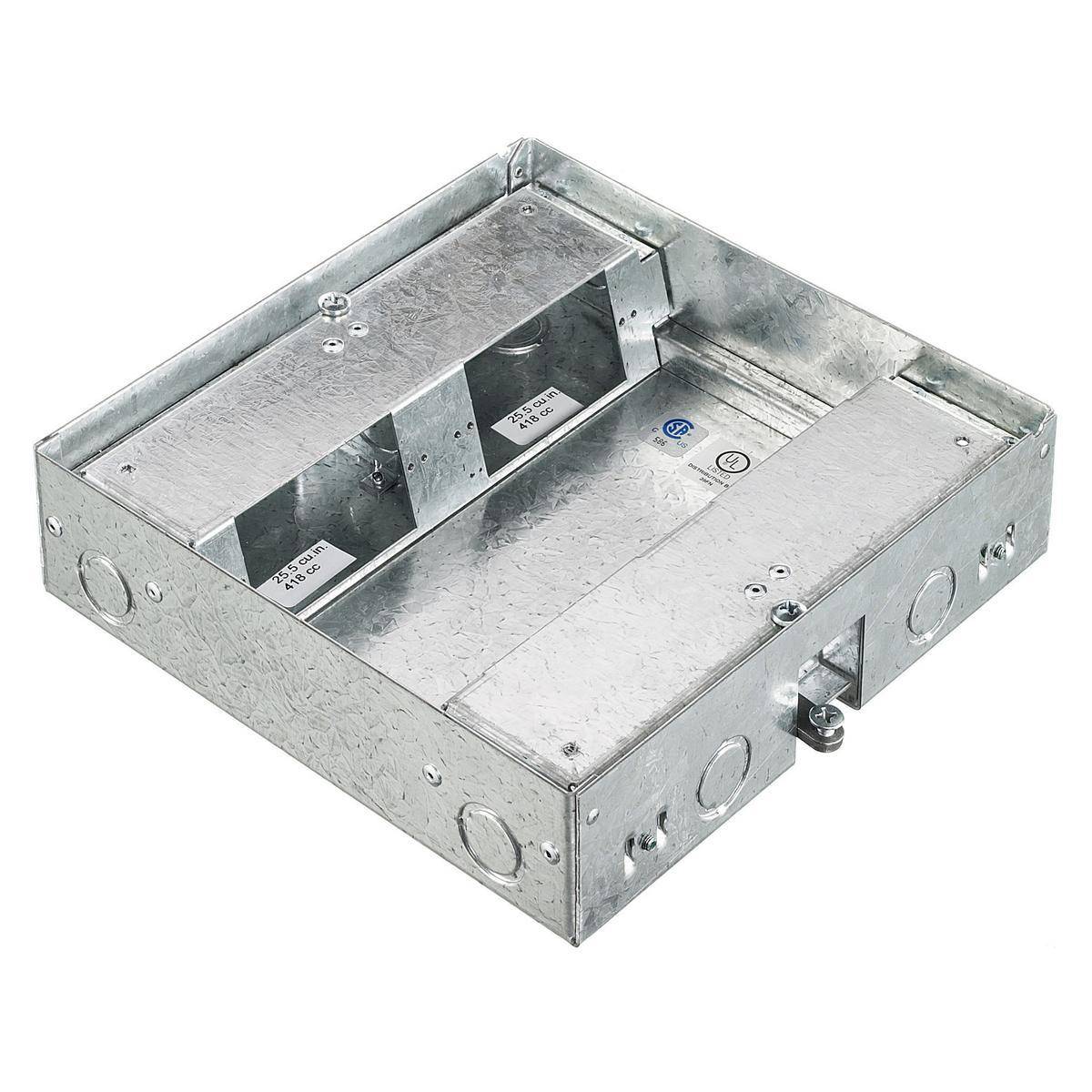

Wiring Device-Kellems AFB401313136A Pre-Wired Raised Shallow Access Floor Box With Cover, Stamped Steel, 25.5 cu-in Capacity, 4 Gangs, 10 in L x 10 in W x 2.63 in H
Share Share Print Print
Hubbell

Wiring Device-Kellems AFB401313136A Pre-Wired Raised Shallow Access Floor Box With Cover, Stamped Steel, 25.5 cu-in Capacity, 4 Gangs, 10 in L x 10 in W x 2.63 in H

NOTICE: This item has been flagged as discontinued. Limited stock may be available. Please note that this item is subject to removal from your order if it is unfulfillable.
Short Description

The Hubbell® AFB Series of recessed, stamped steel boxes are suitable for the majority of raised floor applications providing the flexibility, accessibility, capacity and depth profiles needed. These multi-service boxes are available in four or 8 gang options in a variety of power configurations. They utilize Hubbell® modular screw type plates and open systems modular connectivity face plates for delivering power, voice and data. A single reversible metallic cover/flange assembly mounts to all box sizes and has been designed with a large cable door to provide ample room for exiting cords.

Wiring Device-Kellems Access Floor Box, Pre-Wired Raised Shallow, Series: AFB401, 4 Gangs, 1/2 in, 3/4 in Knockout, 25.5 cu-in Capacity, Stamped Steel, Galvanized, Black, 10 in L x 10 in W x 2.63 in H
MFG #: AFB401313136A

EECO #: HUAFB401313136A

Brand: Wiring Device-Kellems
UPC #: 783585527543
Discontinued
Attributes
Features
Documents
Product Information
Attributes
Color
Black
Finish
Galvanized
UNSPSC
39121307
Material
Stamped Steel
Application
For use in environmental air handling spaces other than ducts or plenums
Knockout Size
1/2 in, 3/4 in
Number of Gangs
4
Type
Pre-Wired Raised Shallow
Series
AFB401
Capacity
25.5
Dimensions
10 in L x 10 in W x 2.63 in H
Features
  • Reversible single piece cover/flange allows provision for carpet inlay
  • Adjustable hinged clamping arm simplifies installation
  • Delivers power and voice/data to the end user at floor surface level for easy plug-in accessibility and "plug and play" administration
  • Provides for maximum wire capacity
  • Hinged clamping arms provide easy installation from above without having to remove the cover
  • Utilizes Hubbell modular screw type plates, and open systems modular connectivity face plates to deliver power and voice/data to the end user
  • All raised floor boxes use the same cover to provide a consistent appearance
