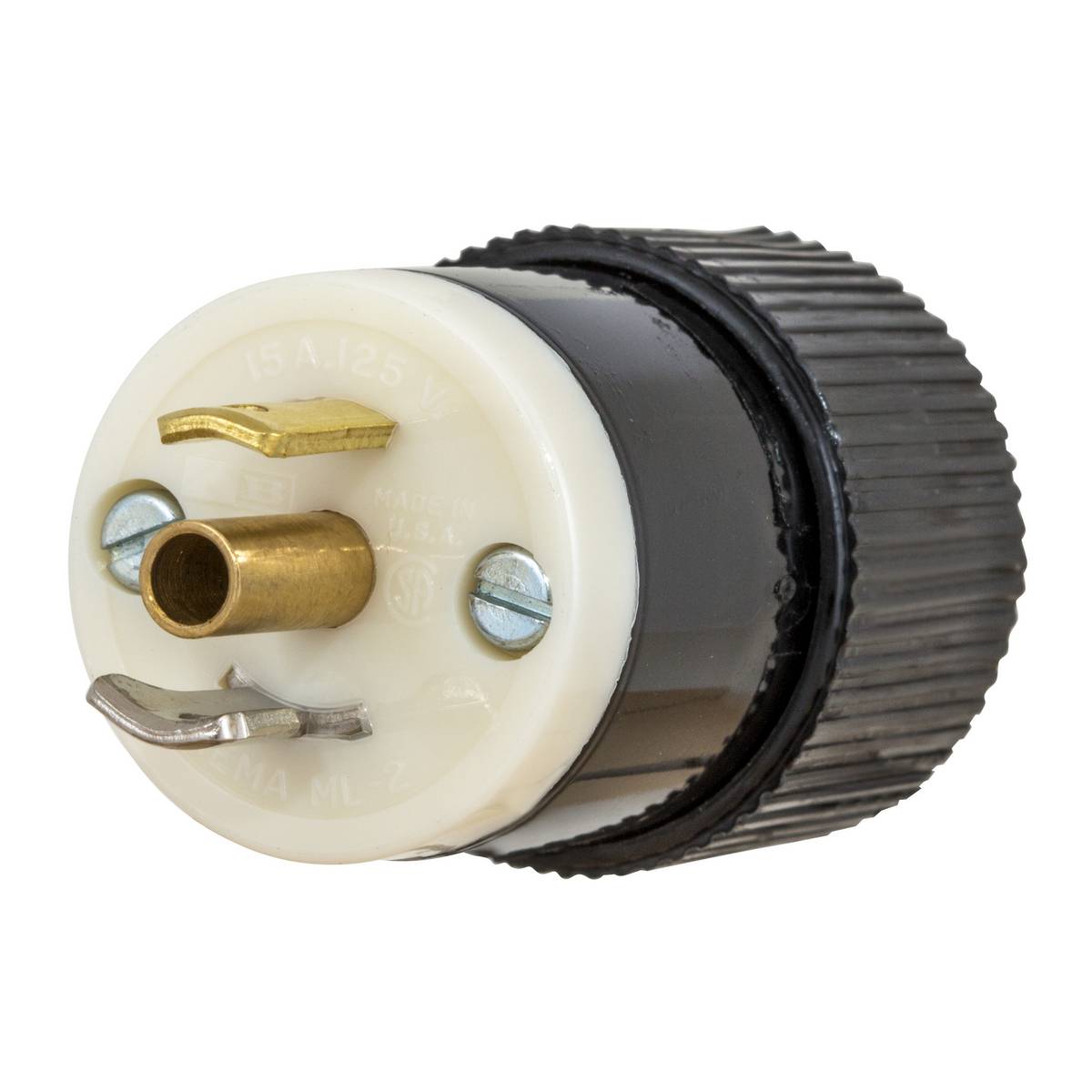

Wiring Device-Kellems 7594NP 1-Phase Grounding Male Standard Midget Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Share Share Print Print
Hubbell

Wiring Device-Kellems 7594NP 1-Phase Grounding Male Standard Midget Locking Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Short Description

Ensure reliable connections with the Wiring Device-Kellems 7594NP Male Standard Midget Locking Plug. Designed for industrial use, this 1-Phase grounding plug offers durability and performance at 125 VAC and 15 A. Perfect for a variety of applications!Enhanced by AI

Wiring Device-Kellems Midget Locking Plug, 1-Phase Grounding Male Standard, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA ML-2P NEMA Rating, Industrial Grade, 0.3 to 0.95 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Composite, White, 1.25 in L x 1.25 in W x 1.6 in H Dimensions

MFG #: 7594NP

EECO #: HU7594NP

Brand: Wiring Device-Kellems
UPC #: 781786671355
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121402
Material
Composite
Application
Extra Heavy Duty Industrial and Indoor Dry Environment Applications
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Temperature Rating
-40 to 60
Type
1-Phase Grounding Male Standard
Grade
Industrial
Dimensions
1.25 in L x 1.25 in W x 1.6 in H
Amperage Rating
15
Features
  • It has clear polycarbonate terminal cover for convenience
  • Nickel plated brass plug blades and zinc plated terminal clamp nut/assembly screws
  • Plug can withstand dielectric voltage of 3500 VAC and maximum temperature rise of 30 deg C at full rated current after 50 cycles of overload at 150% rated current for either AC/DC
  • It has X, Y, Z brass hot, green ground and silver neutral terminal ID with terminal accommodation of 18 to 8 AWG
  • It has HB/UL94 flammability rating to withstand hazardous environmental conditions
  • Chemical resistant, impact resistant
  • Certified for current interrupting at full rated current
  • Zinc plated steel terminal clamp and assembly screws, impact modified nylon face/terminal assembly and cord grip assembly, super tough nylon cover housing, brass, neutral blade nickel plated plug blades
  • #10 bronze terminal screws, ML-2 midget/special configuration, straight body
  • Withstands 3500 VAC per UL498 dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
  • (X, Y Z brass hot) (G, green, grounding) (W, silver, neutral) terminal identification
  • 3-wires 0.3 in to 0.95 in, 4 and 5-wires 0.465 in to 1.115 in cord grip range
