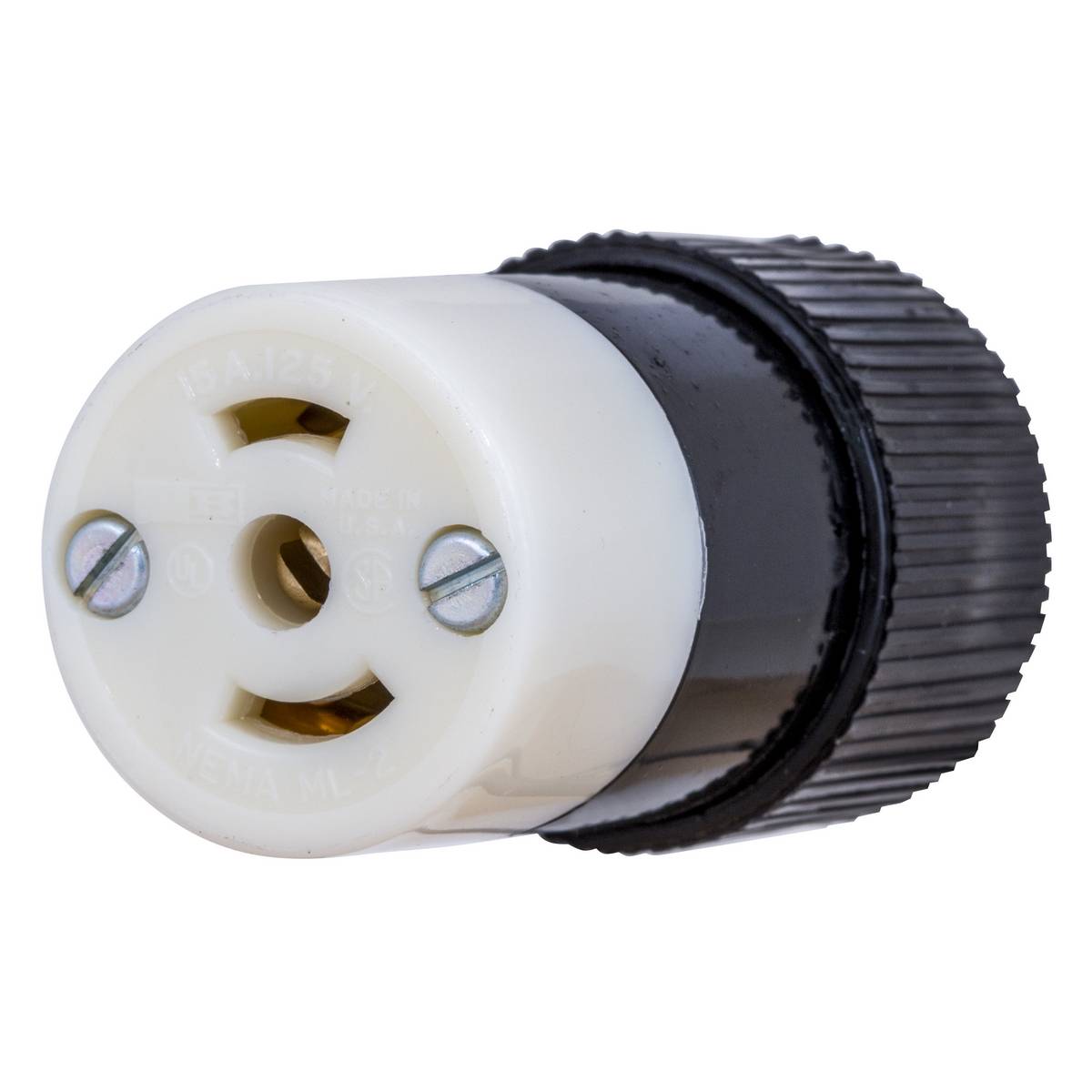

Wiring Device-Kellems Twist-Lock® Insulgrip® 7593NC Female Grounding Midget Standard Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Share Share Print Print
Hubbell

Wiring Device-Kellems Twist-Lock® Insulgrip® 7593NC Female Grounding Midget Standard Locking Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, White

Short Description

Ensure a secure and reliable connection with the Wiring Device-Kellems Twist-Lock® Insulgrip® 7593NC Female Grounding Connector. Designed for industrial use, this durable locking connector features a compact design and is rated for 125 VAC and 15 A, making it perfect for various applications.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Female Grounding Midget Standard, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA ML-2R NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Composite, White, 1.25 in L x 1.25 in W x 2.15 in H Dimensions

MFG #: 7593NC

EECO #: HU7593NC

Brand: Wiring Device-Kellems
UPC #: 781786671300
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121421
Material
Composite
Application
Heavy Duty Industrial Applications and Indoor Dry Environment
Terminal Type
Screw
Voltage Rating
125
Number of Wires
3
Temperature Rating
-40 to 75
Type
Female Grounding Midget Standard
Grade
Industrial
Dimensions
1.25 in L x 1.25 in W x 2.15 in H
Amperage Rating
15
Features
  • 14 AWG conductor
  • Indoor dry unless protected by additional mean environmental conditions
  • Cord mounted
  • ML-2 midget/special configuration type
  • #10-32 brass terminal screw
  • Clear polycarbonate terminal cover
  • High performance copper alloy connector contacts
  • Zinc plated steel terminal clamp nut and assembly screw
  • Withstands 3500 VAC per UL 498 dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current for either AC or DC applications per UL 498 temperature rise
  • 18 to 8 AWG flexible cord terminal accommodation
  • Non-metallic Quad-Gripper cord grip
  • Midget NEMA locking
