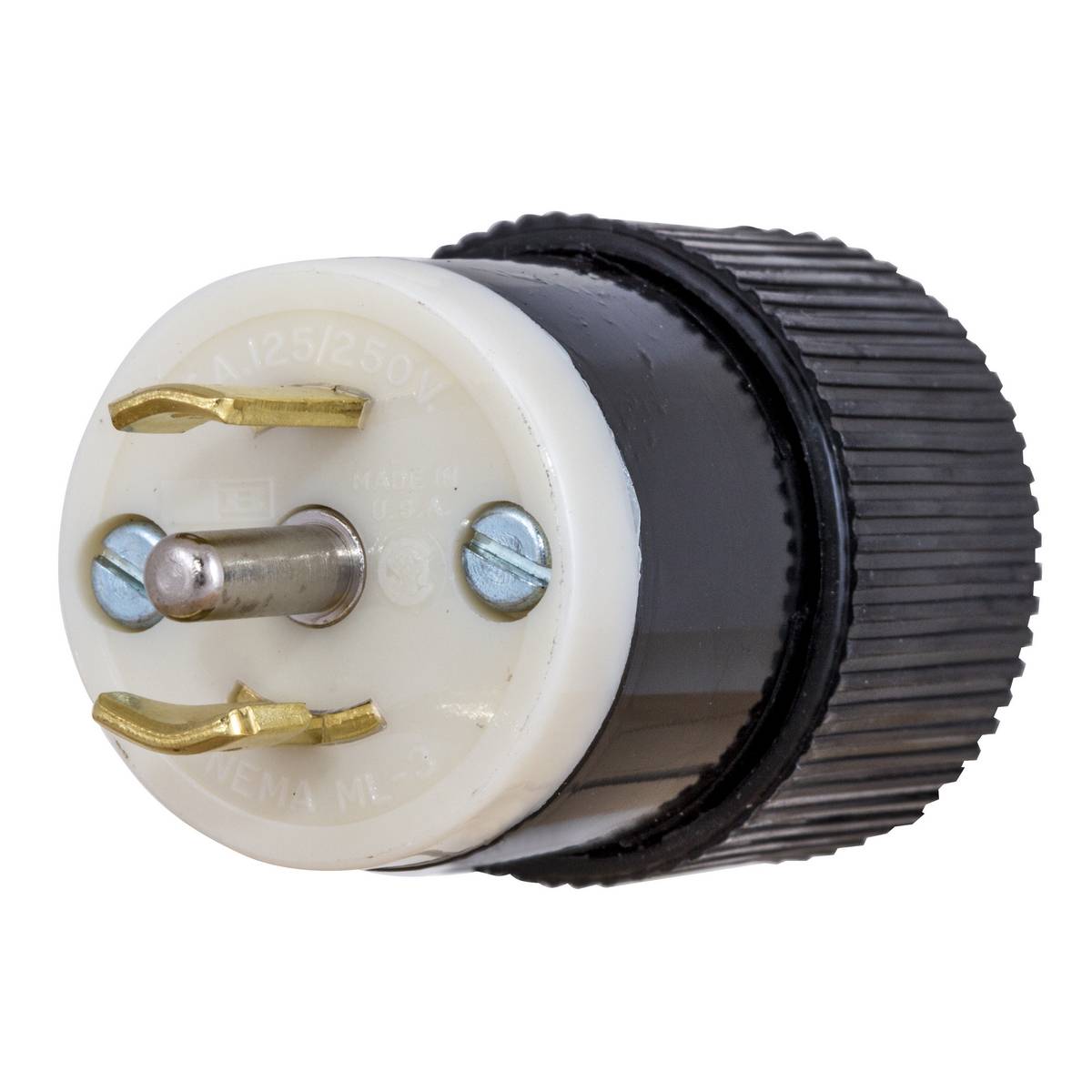

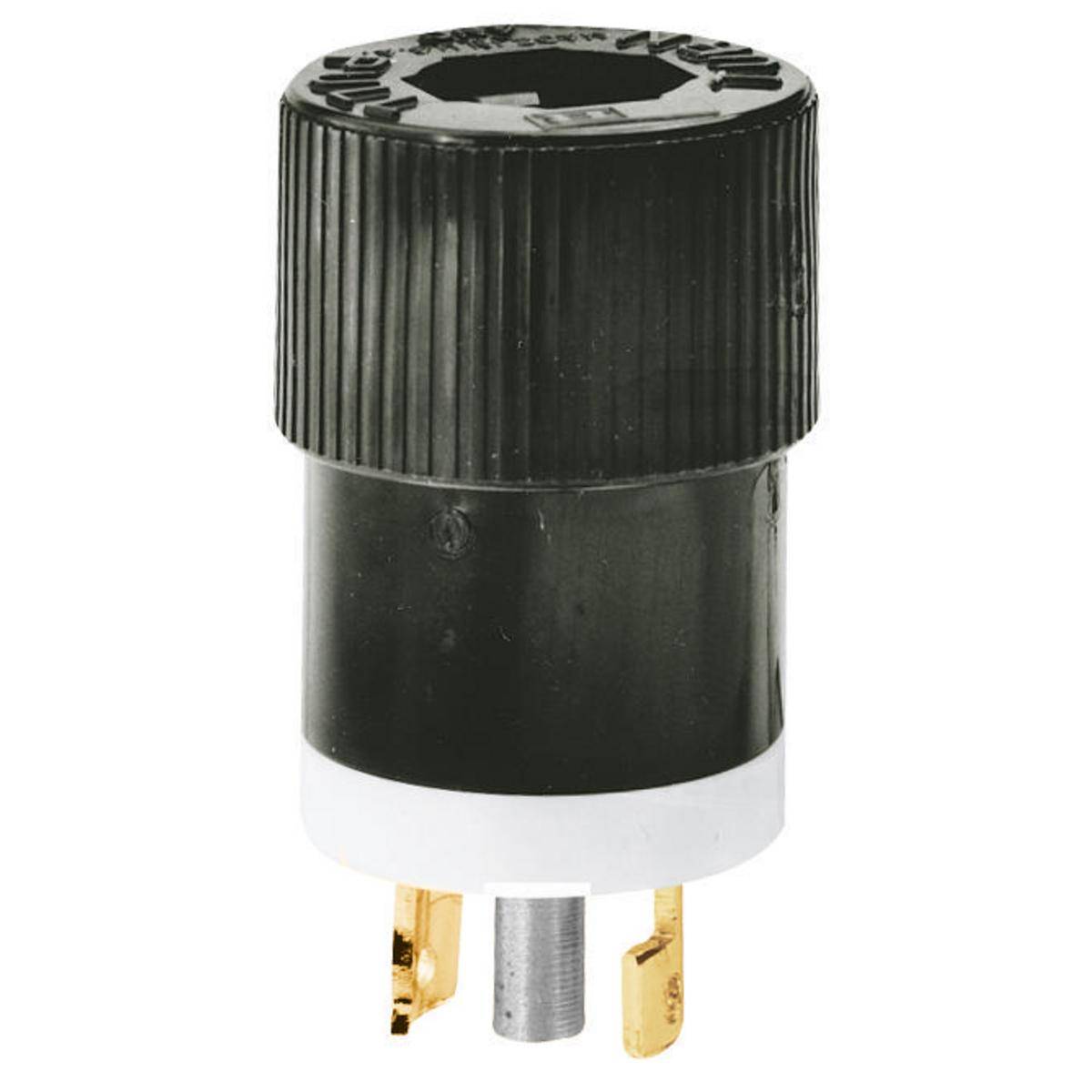

Wiring Device-Kellems 7485NP 1-Phase Non-Grounding Male Standard Midget Locking Plug, 125/250 VAC, 15 A, 3 Poles, 3 Wires, White
Wiring Device-Kellems 7485NP 1-Phase Non-Grounding Male Standard Midget Locking Plug, 125/250 VAC, 15 A, 3 Poles, 3 Wires, White
Wiring Device-Kellems 7485NP 1-Phase Non-Grounding Male Standard Midget Locking Plug, 125/250 VAC, 15 A, 3 Poles, 3 Wires, White
Wiring Device-Kellems 7485NP 1-Phase Non-Grounding Male Standard Midget Locking Plug, 125/250 VAC, 15 A, 3 Poles, 3 Wires, White
Share Share Print Print
Hubbell

Wiring Device-Kellems 7485NP 1-Phase Non-Grounding Male Standard Midget Locking Plug, 125/250 VAC, 15 A, 3 Poles, 3 Wires, White

Short Description

Ensure a secure and reliable connection with the Wiring Device-Kellems 7485NP Non-Grounding Male Standard Midget Locking Plug. Designed for industrial use, this 1-Phase plug supports 125/250 VAC and 15 A, making it perfect for a variety of applications. Its robust construction and compact design guarantee durability and ease of use.Enhanced by AI

Wiring Device-Kellems Midget Locking Plug, 1-Phase Non-Grounding Male Standard, 125/250 VAC, 15 A, 3 Pole, 3 Wires, NEMA ML-3P NEMA Rating, Industrial Grade, Screw Terminal, Composite, White, 1.25 in L x 1.25 in W x 1.6 in H Dimensions

MFG #: 7485NP

EECO #: HU7485NP

Brand: Wiring Device-Kellems
UPC #: 781786669406
Attributes
Features
Documents
Product Information
Attributes
Color
White
UNSPSC
39121402
Material
Composite
Application
Extra Heavy Duty Industrial and Indoor Dry Environment Applications
Terminal Type
Screw
Voltage Rating
125/250
Number of Wires
3
Frequency Rating
50/60
Temperature Rating
-40 to 60
Type
1-Phase Non-Grounding Male Standard
Grade
Industrial
Dimensions
1.25 in L x 1.25 in W x 1.6 in H
Amperage Rating
15
Features
  • Smaller body size for use in tighter fit applications where larger products cant
  • Abuse resistant nylon housing
  • Cord mounted
  • 18 to 12 AWG wire
  • Double-wall Supertough® nylon casing
  • Radius teeth cable grip centers and secures cord
  • Cord seal keeps dust, moisture and contaminants out
  • Double wall construction provides extra protection for internal components
  • Clear polycarbonate terminal cover
  • Teardrop wiring pockets for easy assembly
