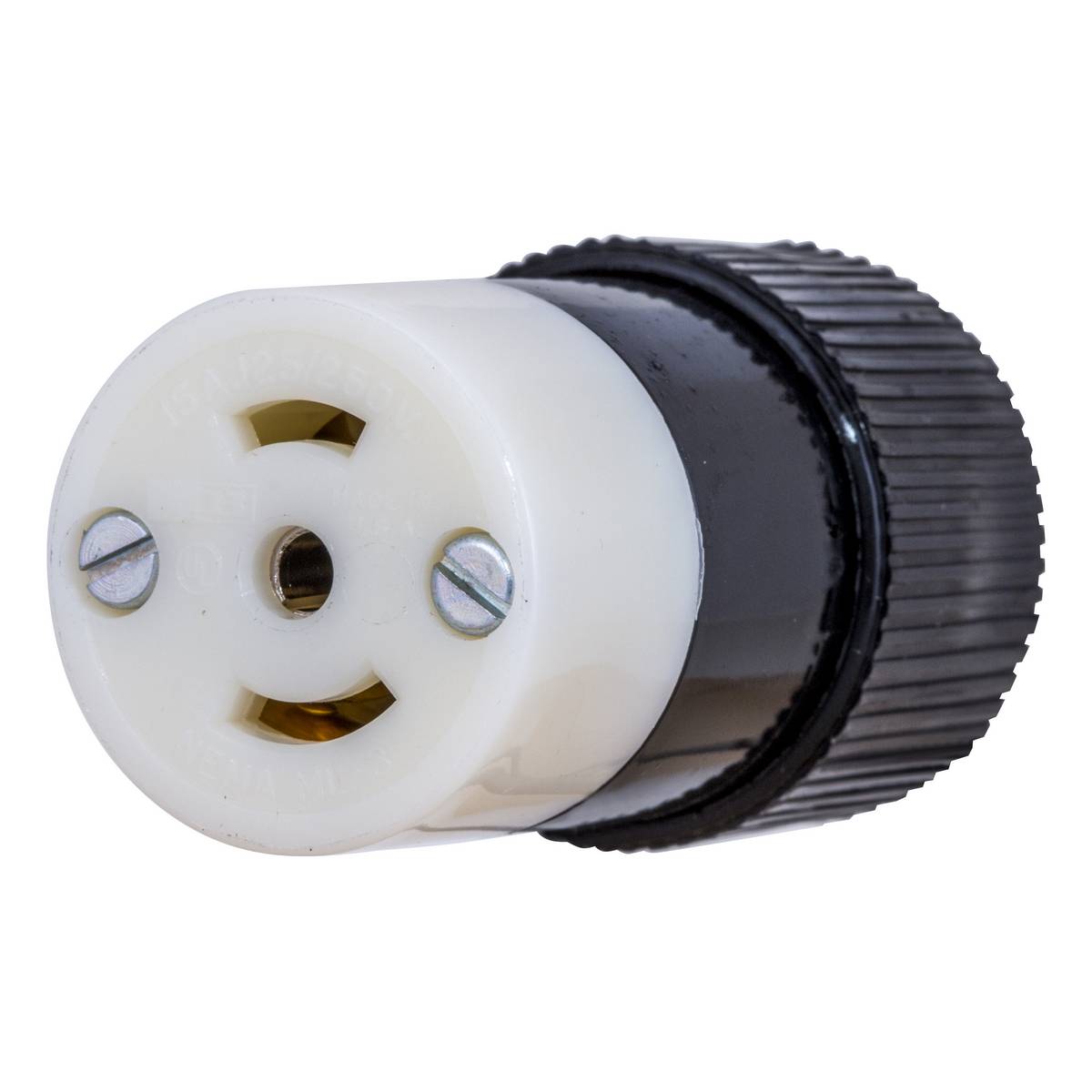

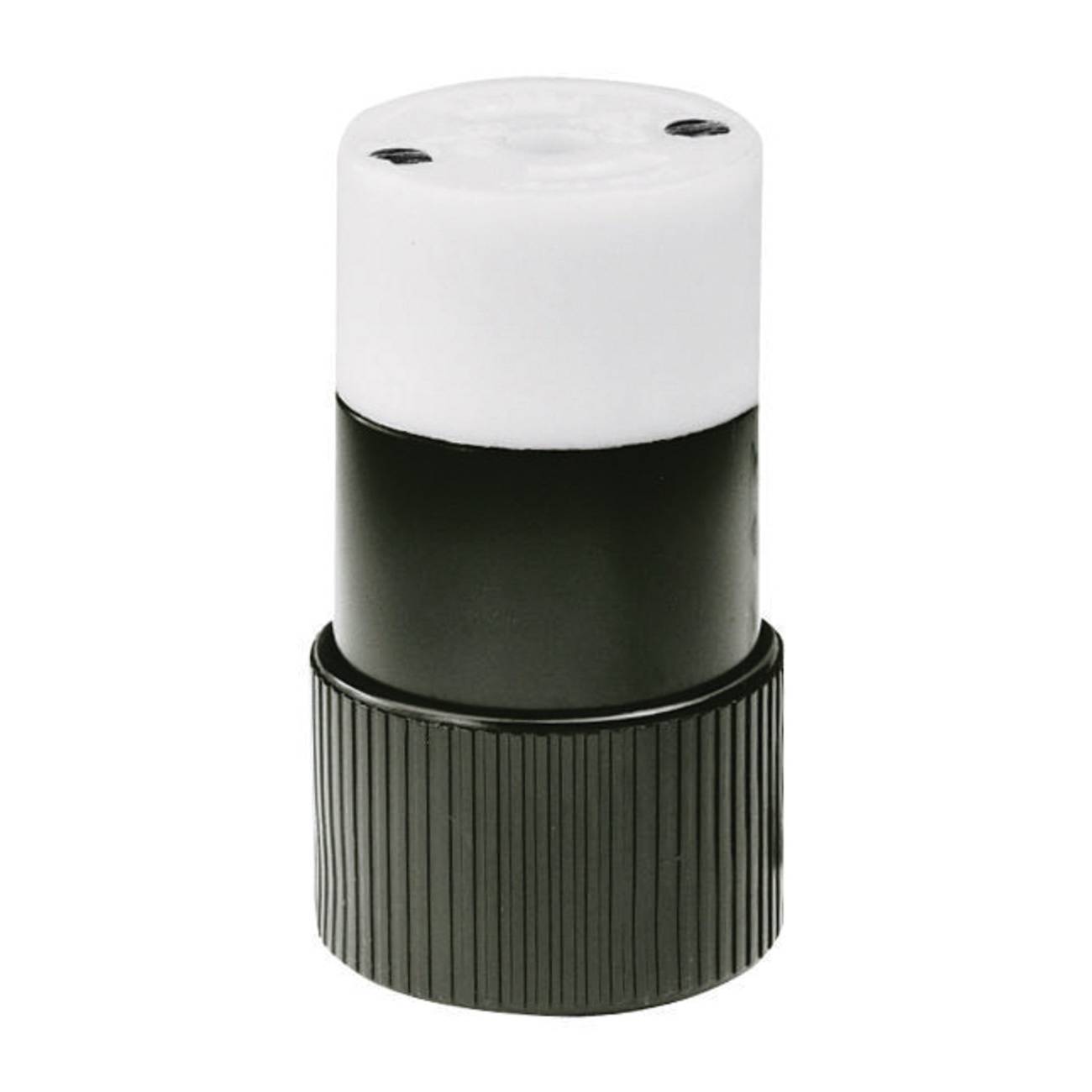

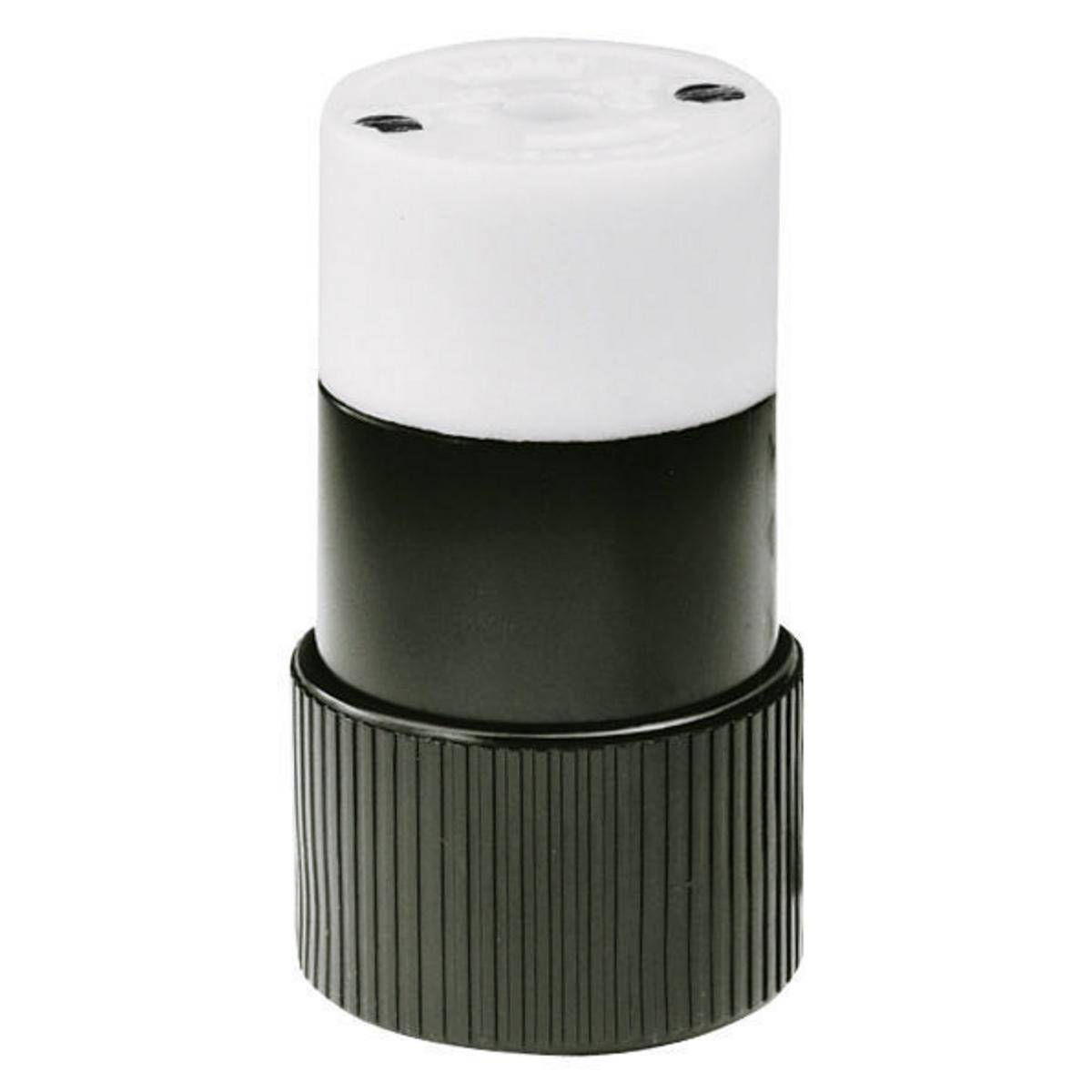

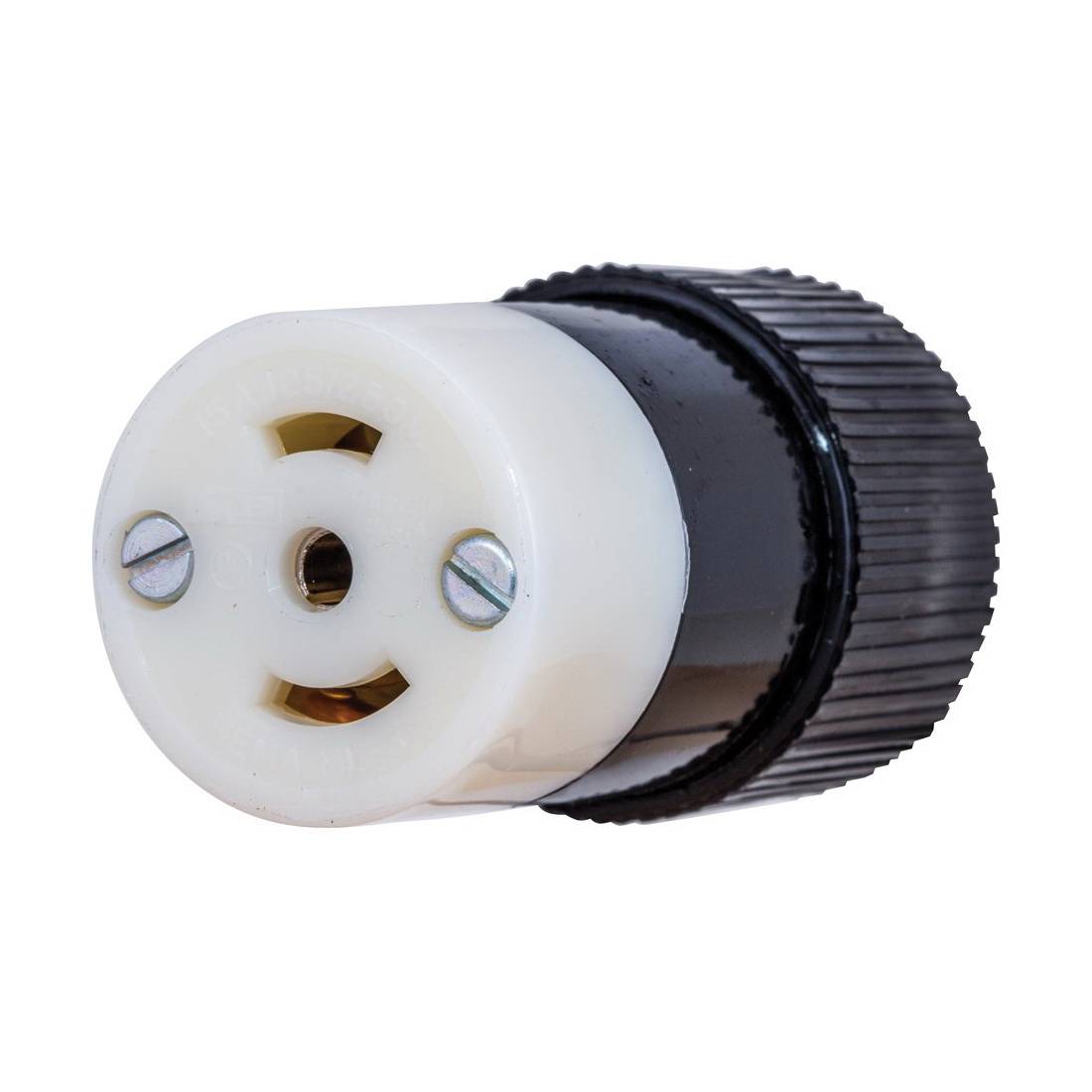

Wiring Device-Kellems Twist-Lock® Insulgrip® 7484NC Female Midget Non-Grounding Locking Connector, 125/250 VAC, 15 A, 3 Poles, 3 Wires, Black/White

Short Description

Ensure secure and reliable connections with the Wiring Device-Kellems Twist-Lock® Insulgrip® 7484NC Female Midget Non-Grounding Locking Connector. Designed for 125/250 VAC and 15 A, this robust connector features a compact design and is perfect for a variety of applications.Enhanced by AI

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Female Midget Non-Grounding, 125/250 VAC, 15 A, 3 Pole, 3 Wires, NEMA ML-3R, -40 to 75 deg C, Screw Terminal, Composite, Black/White, 1.25 in L x 1.25 in W x 2.15 in H

MFG #: 7484NC

EECO #: HU7484NC

Brand: Wiring Device-Kellems
UPC #: 781786669352
Attributes
Features
Documents
Product Information
Attributes
Color
Black/White
UNSPSC
39121421
Material
Composite
Application
Heavy Duty Industrial Applications and Indoor Dry Environment
Terminal Type
Screw
Voltage Rating
125/250
Number of Wires
3
Temperature Rating
-40 to 75
Type
Female Midget Non-Grounding
Grade
Industrial
Dimensions
1.25 in L x 1.25 in W x 2.15 in H
Amperage Rating
15
Features
  • 14 AWG conductor
  • Indoor dry unless protected by additional mean environmental conditions
  • Cord mounted
  • #10-32 brass terminal screw
  • Impact modified nylon face/terminal assembly and Supertough® nylon cover
  • Supertough® nylon cover
  • Clear polycarbonate terminal cover
  • High performance copper alloy connector contacts
  • Zinc plated steel terminal clamp nut and assembly screw
  • Withstands 3500 VAC per UL 498 dielectric voltage
  • 600 VAC or 250 VDC maximum working voltage
  • 18 to 8 AWG flexible cord terminal accommodation
  • Ratings and NEMA identification are permanently marked on device product identification
  • Round portable service cords in accordance with device ratings as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
  • Midget NEMA locking
