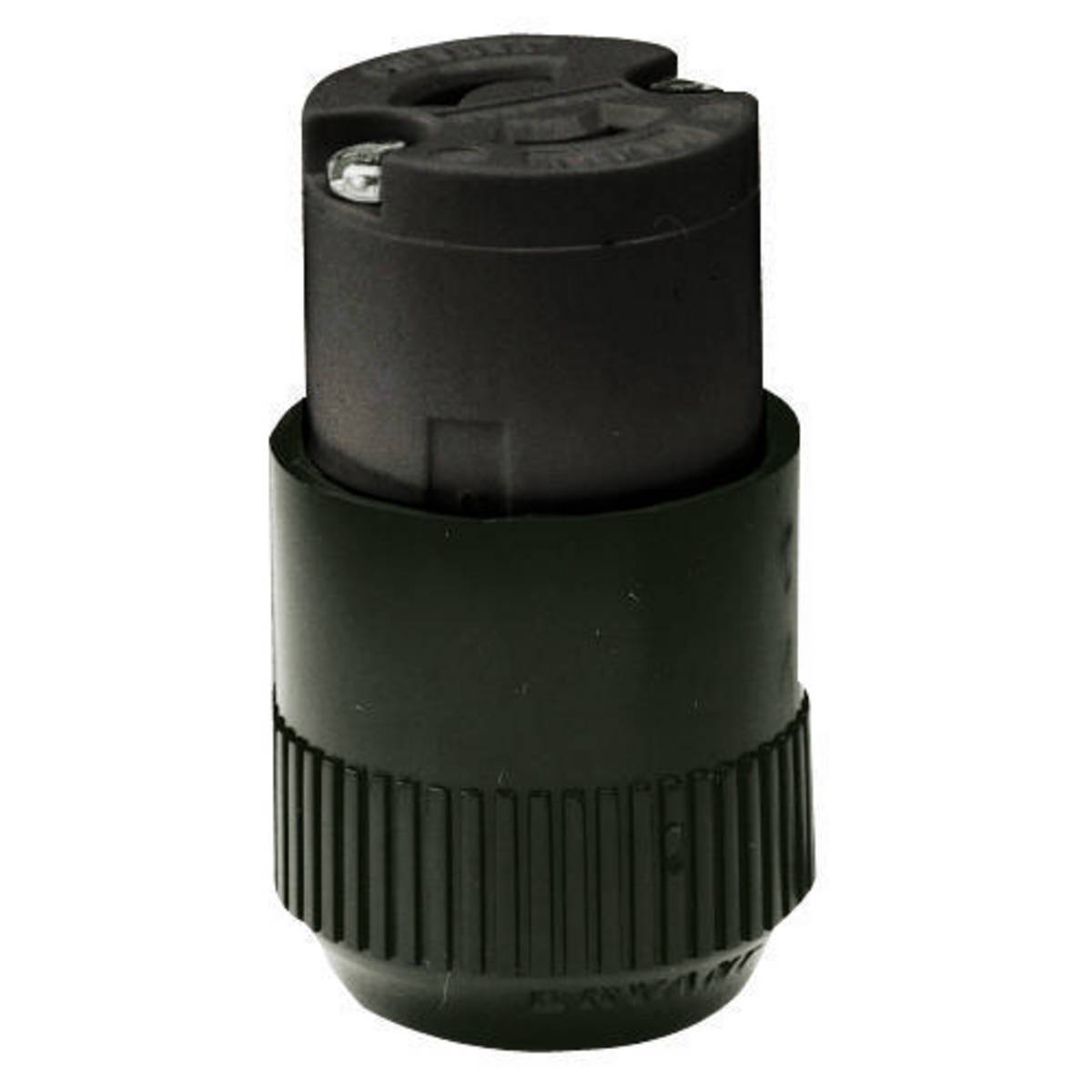

Bryant Electric 7464NB Female Heavy Duty Insulated Midget Non-Grounding Standard Locking Connector, 125 VAC, 15 A, 2 Poles, 2 Wires, Black
Share Share Print Print
Hubbell

Bryant Electric 7464NB Female Heavy Duty Insulated Midget Non-Grounding Standard Locking Connector, 125 VAC, 15 A, 2 Poles, 2 Wires, Black

Short Description

Ensure a secure and reliable connection with the Bryant Electric 7464NB Female Heavy Duty Insulated Midget Non-Grounding Locking Connector. Designed for industrial use, this durable connector operates at 125 VAC and 15 A, making it perfect for a variety of applications.Enhanced by AI

Bryant Electric, 7464NB, Locking Connector, Female Heavy Duty Insulated Midget Non-Grounding Standard, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA ML-1R NEMA Rating, Industrial Grade, 0.22 to 0.425 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Composite, Black, 1.25 in L x 1.25 in W x 2.15 in H Dimensions

MFG #: 7464NB

EECO #: HU7464NB

Brand: Bryant Electric
UPC #: 781786616608
Attributes
Features
Documents
Product Information
Attributes
Color
Black
UNSPSC
39121421
Material
Composite
Application
Indoor Dry Environment
Terminal Type
Screw
Voltage Rating
125
Number of Wires
2
Temperature Rating
-40 to 75
Type
Female Heavy Duty Insulated Midget Non-Grounding Standard
Grade
Industrial
Dimensions
1.25 in L x 1.25 in W x 2.15 in H
Amperage Rating
15
Features
  • 14 AWG conductor
  • Indoor dry unless protected by additional mean environmental conditions
  • Cord mounted
  • #10-32 brass terminal screws
  • Impact modified nylon face/terminal assembly, Supertough® nylon cover
  • Supertough® nylon cover
  • Clear polycarbonate terminal cover
  • High performance copper alloy connector contacts
  • Zinc plated steel terminal clamp nut and assembly screws
  • Withstands 3500 VAC per UL 498 dielectric voltage
  • 600 VAC or 250 VDC maximum working voltage
  • 18 to 8 AWG flexible cord terminal accommodation
  • Ratings and NEMA identification are permanently marked on device
  • Round portable service cords in accordance with device ratings as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
  • Insulated body
  • Midget NEMA locking
