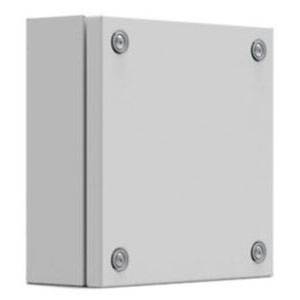

19.69 x 4.72 x 7.87, Hoffman Enclosures STB205012 Terminal Box, NEMA/EEMAC 4/12/13/IP66/IK08/10, 18 Gauge (Body/Door),Light Gray Mild Steel
Share Share Print Print
nVent

19.69 x 4.72 x 7.87, Hoffman Enclosures STB205012 Terminal Box, NEMA/EEMAC 4/12/13/IP66/IK08/10, 18 Gauge (Body/Door),Light Gray Mild Steel

Short Description

19.69" x 4.72" x 7.87", NEMA/EEMAC 4/12/13, IP66, IK08/10, 18 Gauge (Body/Door), Powder Coated RAL 7035 Light Gray Mild Steel, Terminal Box

Terminal Box; Height 7.87 Inch; Width 19.69 Inch; Depth 4.72 Inch; Material Mild Steel; Material Specification 18 Gauge (Body/Door); Finish Powder Coated; Color RAL 7035 Light Gray; Enclosure NEMA/EEMAC 4/12/13, IP66, IK08/10; Mounting Wall Mount; Service Type Indoor; Approval UL 508A, UL (Canada and US), KEMA, CUL, CSA C22.2, CE; Includes Cover, Cover Screw, Fixing Screw, Cover Plug and Earthing Facility; Application Industry; Applicable Standard EAC, IEC 62208, GOST

MFG #: STB205012

EECO #: HOSTB205012

Brand: Hoffman
UPC #: 783510529536
Attributes
Features
Documents
Product Information
Attributes
Color
RAL 7035 Light Gray
Finish
Powder Coated
UNSPSC
39121300
Approval
UL 508A, UL (Canada and US), KEMA, CUL, CSA C22.2, CE
Material
Mild Steel
Service Type
Indoor
Mounting
Wall Mount
Enclosure
NEMA/EEMAC 4/12/13, IP66, IK08/10
Material Specification
18 Gauge (Body/Door)
Depth
4.72 Inch
Width
19.69 Inch
Height
7.87 Inch
Features
  • Gasket - Sealing is Ensured by an Injected One Piece Polyurethane Gasket
  • Earthing/Grounding - M8X18 Millimeter Earthing Studs in Body and Cover, M8 Nuts, Earthing Washers and Earthing Labels
  • The STB Range is Well Suited for Demanding Indoor Environments
  • Water and Dust are Prevented from Entering the Terminal Box, thus Eliminating the Risk for Component Failure and with that, Unnecessary Downtime
Qty Unit price
Ea
1 $325.00

Slqt
1 $325.00

Stpk
1 $325.00

Unit
1 $325.00
