11.81 x 4.72 x 11.81, Hoffman Enclosures SSTB303012 Terminal Box, NEMA/EEMAC 4X/12/13/IP66/IK08, 18 Gauge Body/16 Gauge Door,304 Stainless Steel

Short Description

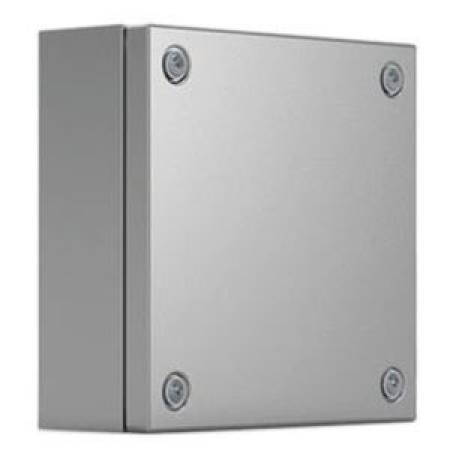

11.81" x 4.72" x 11.81", NEMA/EEMAC 4X/12/13, IP66, IK08, 18 Gauge Body/16 Gauge Door, Pre-Grained 304 Stainless Steel, Terminal Box

Terminal Box; Height 11.81 Inch; Width 11.81 Inch; Depth 4.72 Inch; Material 304 Stainless Steel; Material Specification 18 Gauge (Body), 16 Gauge (Door); Finish Pre-Grained; Enclosure NEMA/EEMAC 4X/12/13, IP66, IK08; Service Type Indoor, Outdoor; Approval UL 508A, UL (Canada and US), KEMA, CUL, CSA C22.2, CE; Includes Cover, Cover Screw, Fixing Screw, Cover Plug and Earthing Facility; Application Industry; Applicable Standard EAC, IEC 62208, GOST

MFG #: SSTB303012

EECO #: HOSSTB303012

Brand: Hoffman
UPC #: 783510529222
Attributes
Features
Documents
Product Information
Attributes
Finish
Pre-Grained
UNSPSC
39121300
Approval
UL 508A, UL (Canada and US), KEMA, CUL, CSA C22.2, CE
Material
304 Stainless Steel
Service Type
Indoor, Outdoor
Enclosure
NEMA/EEMAC 4X/12/13, IP66, IK08
Material Specification
18 Gauge (Body), 16 Gauge (Door)
Depth
4.72 Inch
Width
11.81 Inch
Height
11.81 Inch
Features
  • Body - Folded and Seam Welded
  • Four M6X13 Studs for Bottom Profile/Mounting Plate Fixation
  • Gasket - for AISI 316L, Sealing is Ensured by an Injected One Piece Silicone Gasket
  • Earthing/Grounding - M8X18 Millimeter Earthing Studs in Body and Cover, M8 Nuts, Earthing Washers and Earthing Labels
  • The SSTB Range is Well Suited for Indoor and Outdoor Environment
  • Water and Dust are Prevented from Entering the Terminal Box, thus Eliminating the Risk for Component Failure and with that, Unnecessary Downtime
