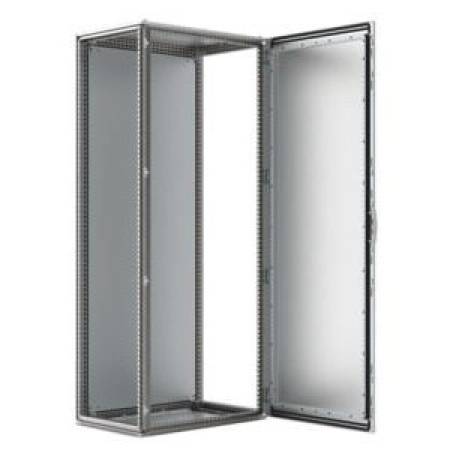

31.5 x 19.69 x 70.87, Hoffman Enclosures MCSS18085 Floor Standing Enclosure, NEMA 12/13/EEMAC 12/IP55/IK10, Stainless Steel, 1-Door
Share Share Print Print
nVent

31.5 x 19.69 x 70.87, Hoffman Enclosures MCSS18085 Floor Standing Enclosure, NEMA 12/13/EEMAC 12/IP55/IK10, Stainless Steel, 1-Door

Short Description

31.5" x 19.69" x 70.87", NEMA 12/13, EEMAC 12, IP55, IK10, 16/14 Gauge 400 Pre-Grained Stainless Steel, 1-Door, Modular, Floor Standing Enclosure

Floor Standing Enclosure; Type 1-Door, Modular; Height 70.87 Inch; Width 31.5 Inch; Depth 19.69 Inch; Material Stainless Steel; Material Specification 16 Gauge (Body), 14 Gauge (Door); Finish 400 Pre-Grained; Door Type 1-Door; Door Mounting 4-Hinge; Enclosure NEMA 12/13, EEMAC 12, IP55, IK10; Approval UL (Canada and US), UL 508A, KEMA-KEUR, CUL, CSA C22.2, CE; Includes Frame with Fitted Door, Rear Panel, Roof Panel, Bottom Plate, Earthing Bolt, 694 Millimeter Width x 1694 Millimeter Height Mounting Plate; Application Industrial; Applicable Standard EAC, IEC 62208, GOST, DNV, Maritime, Lloyds

MFG #: MCSS18085

EECO #: HOMCSS18085

Brand: Hoffman
UPC #: 783510499075
Attributes
Features
Documents
Product Information
Attributes
Finish
400 Pre-Grained
UNSPSC
39121324
Approval
UL (Canada and US), UL 508A, KEMA-KEUR, CUL, CSA C22.2, CE
Material
Stainless Steel
Enclosure
NEMA 12/13, EEMAC 12, IP55, IK10
Material Specification
16 Gauge (Body), 14 Gauge (Door)
Type
1-Door, Modular
Depth
19.69 Inch
Width
31.5 Inch
Height
70.87 Inch
Door Type
1-Door
Door Mounting
4-Hinge
Features
  • Frame - Seam Welded Reversed Open Profiles with 25 Millimeter Hole Pattern, According to DIN 43660
  • Including Integrated External Hole Pattern
  • Door - Mounted with Four Hinges Including Door Frame with 25 Millimeter Hole Pattern
  • Door cannot be Reversed
  • Rear Panel - Fitted by M6 Torx Screws and Standard Facilities for Rear Doors Mounting
  • Supplied as an Accessory
  • Removable Roof Panel
  • Lock - Espagnolette 4-Point Locking System in the Main Door and 2-Point Locking System in the Secondary Door with Standard Double-Bit Lock with 3 Millimeter Insert
  • Bottom Plate - 1-Piece Bottom Plate, with Injected Polyurethane Gasket to Ensure Maximum Sealing
  • Mounting Plate - Double Folded and Adjustable in Depth by Steps of 25 Millimeter, with the MPD02 Accessory
  • Earthing/Grounding - All Panels are Earthed/Grounded Through their Fittings and Equipped with a Separate Earthing Stud
  • Mounting Requirements - Standard Delivery Ready for Combined Installation
  • Sides of the Group of Combined Enclosures Must be Closed with Side Panels SPM
  • The Risk for Component Failure and with that Unnecessary Downtime, is Eliminated as Water and Dust are Prevented from Entering the Enclosure
Qty Unit price
Ea
1 $6,474.00

Slqt
1 $6,474.00

Stpk
1 $6,474.00

Unit
1 $6,474.00
