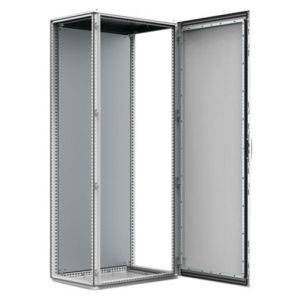

800 MM x 600 MM x 2000 MM, Hoffman Enclosures MCS20086HP Floor Standing Enclosure, NEMA 4X/12/13/IP55/66/IK10, Light Gray Mild Steel, 1-Door
Share Share Print Print
nVent

800 MM x 600 MM x 2000 MM, Hoffman Enclosures MCS20086HP Floor Standing Enclosure, NEMA 4X/12/13/IP55/66/IK10, Light Gray Mild Steel, 1-Door

Short Description

800 MM x 600 MM x 2000 MM, NEMA 4X/12/13, IP55/66, IK10, 16/14 Gauge Powder Coated RAL 7035 Light Gray Mild Steel, 1-Door, Modular, Floor Standing Enclosure

Floor Standing Enclosure; Type 1-Door, Modular; Height 2000 Millimeter; Width 800 Millimeter; Depth 600 Millimeter; Material Mild Steel; Material Specification 16 Gauge (Body), 14 Gauge (Door); Color RAL 7035 Light Gray; Finish Powder Coated; Door Type 1-Door; Door Mounting 4-Hinge; Enclosure NEMA 4X/12/13, IP55/66, IK10; Approval UL (Canada and US); Includes Frame with Fitted Door, Rear Panel, Roof Panel, Bottom Plate, Earthing Bolt, 694 Millimeter Width x 1894 Millimeter Height Mounting Plate; Application Industrial

MFG #: MCS20086HP

EECO #: HOMCS20086HP

Brand: Hoffman
UPC #: 783510495879
Attributes
Features
Documents
Product Information
Attributes
Color
RAL 7035 Light Gray
Finish
Powder Coated
UNSPSC
39121324
Approval
UL (Canada and US)
Material
Mild Steel
Enclosure
NEMA 4X/12/13, IP55/66, IK10
Material Specification
16 Gauge (Body), 14 Gauge (Door)
Type
1-Door, Modular
Depth
600 Millimeter
Width
800 Millimeter
Height
2000 Millimeter
Door Type
1-Door
Door Mounting
4-Hinge
Features
  • Frame - Seam Welded Reversed Open Profiles with 25 Millimeter Hole Pattern, According to DIN 43660
  • Including Integrated External Hole Pattern
  • Door - Mounted with Four Hinges Including Door Frame with 25 Millimeter Hole Pattern
  • Door cannot be Reversed
  • Rear Panel - Fitted by M6 Torx Screws and Standard Facilities for Rear Doors Mounting
  • Supplied as an Accessory
  • Removable Roof Panel
  • Lock - Espagnolette 4-Point Locking System in the Main Door and 2-Point Locking System in the Secondary Door with Standard Double-Bit Lock with 3 Millimeter Insert
  • Bottom Plate - 1-Piece Bottom Plate, with Injected Polyurethane Gasket to Ensure Maximum Sealing
  • Mounting Plate - Double Folded and Adjustable in Depth by Steps of 25 Millimeter, with the MPD02 Accessory
  • Earthing/Grounding - All Panels are Earthed/Grounded Through their Fittings and Equipped with a Separate Earthing Stud
  • Mounting Requirements - Standard Delivery Ready for Combined Installation
  • Sides of the Group of Combined Enclosures Must be Closed with Side Panels SPM
  • IP66 Protection Degree Offers a Higher Protection Level for Equipment and Components Which will Help Extend their Lifetime and Reduce Maintenance Costs When the Enclosure is Installed for Rough Environments with Severe Condition
Qty Unit price
Ea
1 $2,645.00

Slqt
1 $2,645.00

Stpk
1 $2,645.00

Unit
1 $2,645.00
