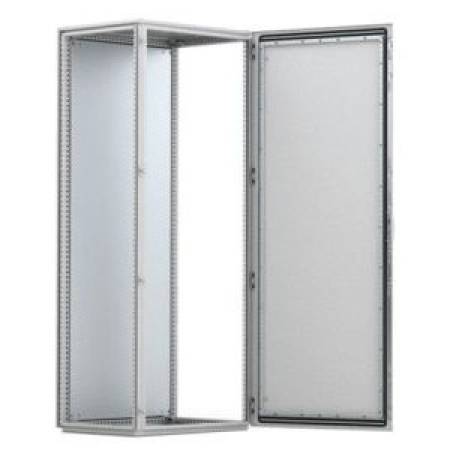

23.62 x 23.62 x 78.74, Hoffman Enclosures MCS20066R5 Floor Standing Enclosure, NEMA 12/13/EEMAC 12/IP55/IK10, Light Gray Mild Steel, 1-Door

Short Description

23.62" x 23.62" x 78.74", NEMA 12/13, EEMAC 12, IP55, IK10, 16/14 Gauge Powder Coated RAL 7035 Light Gray Mild Steel, 1-Door, Modular, Floor Standing Enclosure

Floor Standing Enclosure; Type 1-Door, Modular; Height 78.74 Inch; Width 23.62 Inch; Depth 23.62 Inch; Material Mild Steel; Material Specification 16 Gauge (Body), 14 Gauge (Door); Color RAL 7035 Light Gray; Finish Powder Coated; Door Type 1-Door; Door Mounting 4-Hinge; Enclosure NEMA 12/13, EEMAC 12, IP55, IK10; Approval UL (Canada and US), UL 508A, KEMA-KEUR, CUL, CSA C22.2, CE; Includes Frame with Fitted Door, Rear Panel, Roof Panel, Bottom Plate, Earthing Bolt, 494 Millimeter Width x 1894 Millimeter Height Mounting Plate; Application Industrial; Applicable Standard EAC, IEC 62208, GOST, DNV, Maritime, Lloyds

MFG #: MCS20066R5

EECO #: HOMCS20066R5

Brand: Hoffman
UPC #: 783510495329
Attributes
Features
Documents
Product Information
Attributes
Color
RAL 7035 Light Gray
Finish
Powder Coated
UNSPSC
39121324
Approval
UL (Canada and US), UL 508A, KEMA-KEUR, CUL, CSA C22.2, CE
Material
Mild Steel
Enclosure
NEMA 12/13, EEMAC 12, IP55, IK10
Material Specification
16 Gauge (Body), 14 Gauge (Door)
Type
1-Door, Modular
Depth
23.62 Inch
Width
23.62 Inch
Height
78.74 Inch
Door Type
1-Door
Door Mounting
4-Hinge
Features
  • Frame - Seam Welded Reversed Open Profiles with 25 Millimeter Hole Pattern, According to DIN 43660
  • Including Integrated External Hole Pattern
  • Door - Mounted with Four Hinges Including Door Frame with 25 Millimeter Hole Pattern
  • Door cannot be Reversed
  • Rear Panel - Fitted by M6 Torx Screws and Standard Facilities for Rear Doors Mounting
  • Supplied as an Accessory
  • Removable Roof Panel
  • Lock - Espagnolette 4-Point Locking System in the Main Door and 2-Point Locking System in the Secondary Door with Standard Double-Bit Lock with 3 Millimeter Insert
  • Bottom Plate - Consists of Three or Four (D greater than 600) Pieces
  • Mounting Plate - Double Folded and Adjustable in Depth by Steps of 25 Millimeter, with the MPD02 Accessory
  • Earthing/Grounding - All Panels are Earthed/Grounded Through their Fittings and Equipped with a Separate Earthing Stud
  • Mounting Requirements - Standard Delivery Ready for Combined Installation
  • Sides of the Group of Combined Enclosures Must be Closed with Side Panels SPM
  • The Risk for Component Failure and with that Unnecessary Downtime, is Eliminated as Water and Dust are Prevented from Entering the Enclosure
Qty Unit price
Ea
1 $1,973.00

Slqt
1 $1,973.00

Stpk
1 $1,973.00

Unit
1 $1,973.00
