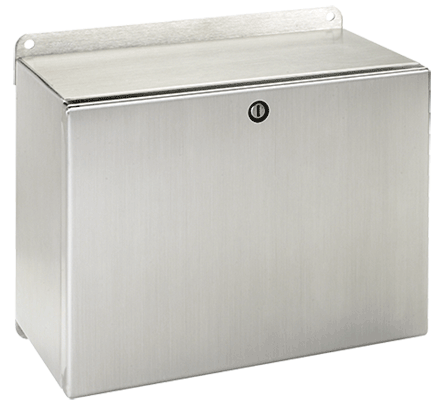

nVent HOFFMAN INLINE™ LWC233116SS A54S Landscape Enclosure, 230 mm L x 310 mm W x 155 mm D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN INLINE™ LWC233116SS A54S Landscape Enclosure, 230 mm L x 310 mm W x 155 mm D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN INLINE™ LWC233116SS A54S Landscape Enclosure, 230 mm L x 310 mm W x 155 mm D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN INLINE™ LWC233116SS A54S Landscape Enclosure, 230 mm L x 310 mm W x 155 mm D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel
Share Share Print Print
nVent

nVent HOFFMAN INLINE™ LWC233116SS A54S Landscape Enclosure, 230 mm L x 310 mm W x 155 mm D, NEMA 4X/IP66 NEMA Rating, 304 Stainless Steel

Short Description

When applications require mounting electrical components the full width of the enclosure, the landscape orientation of this aesthetic INLINE™ enclosure makes this possible. The full width mounting brackets can be drilled anywhere along their length, providing maximum mounting flexibility.

nVent HOFFMAN INLINE™ Landscape Enclosure, Series: A54S, 230 mm Length, 310 mm Width, 155 mm Depth, NEMA 4X/IP66, Hinged Window Cover, Lock: Quarter Turn Latch, Wall Mount, 304 Stainless Steel, Brushed
MFG #: LWC233116SS

EECO #: HOLWC233116SS

Brand: nVent HOFFMAN
UPC #: 783510110437
Attributes
Features
Documents
Product Information
Attributes
Finish
Brushed
Length
230
UNSPSC
39121324
Material
304 Stainless Steel
Application
For applications that require mounting electrical components the full width of the enclosure
Mounting Type
Wall
Depth
155
Width
310
Series
A54S
Cover Type
Hinged Window
Features
  • Seams continuously welded and ground smooth
  • External formed body flange trough
  • Large perimeter body opening
  • Mounting brackets are spot-welded to top and bottom of enclosure
  • Mounting brackets have predrilled mounting holes, customer specific location holes can be drilled for mounting flexibility
  • Seamless foam in place gasket
  • M6 ground stud with base flange on body, M6 bonding provision with base flange on door
  • Furnished hardware kit includes panel mounting screws and grounding hardware
  • Door opens 180 deg
  • Window door models include 3/16 in (4.8 mm) clear polycarbonate window mounted flush with door surface
