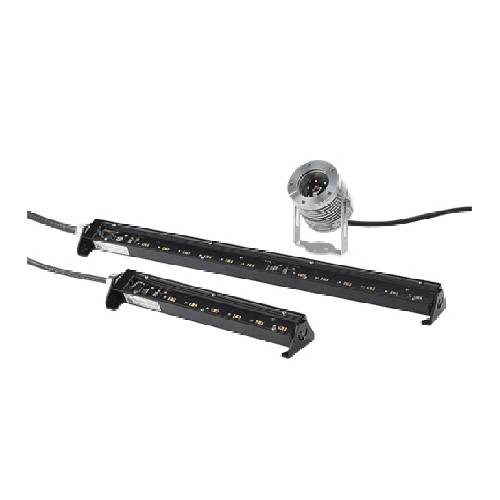

Hoffman LEDHL24V24 HLY Standard Enclosure Light, 24 VDC, (24 in Lamp
Hoffman LEDHL24V24 HLY Standard Enclosure Light, 24 VDC, (24 in Lamp
Hoffman LEDHL24V24 HLY Standard Enclosure Light, 24 VDC, (24 in Lamp
Hoffman LEDHL24V24 HLY Standard Enclosure Light, 24 VDC, (24 in Lamp
Share Share Print Print
nVent

Hoffman LEDHL24V24 HLY Standard Enclosure Light, 24 VDC, (24 in Lamp

Short Description

Hazardous Location LED Strip Lights provide enclosure illumination in hazardous environments. These lights are ideal for remote and darkened enclosure applications in Class 1, Division 2 hazardous areas. With a robust design, these lights have a life span of 100,000 hours and superior lighting performance with easy field angle adjustment brackets. These versatile, light-weight LED lights provide mounting flexibility and are are easy to install in an enclosure.

Hoffman Enclosure Light, Standard, Series: HLY, 24 VDC, 0.66 A, LED Lamp, 24 in Lamp, 25.06 in L x 2.69 in W x 1.69 in H

MFG #: LEDHL24V24

EECO #: HOLEDHL24V24

Brand: nVent HOFFMAN
UPC #: 783510271572
Attributes
Features
Documents
Product Information
Attributes
UNSPSC
39121321
Lamp Type
LED
Application
For hazardous locations, remote and darkened enclosure applications
Voltage Rating
24
Type
Standard
Series
HLY
Includes
3 ft Connect Cable with Flying Leads
Dimensions
25.06 in L x 2.69 in W x 1.69 in H
Amperage Rating
0.66
Features
  • LED technology provides a life span of up to 100000 operating hours
  • Operating temperature of -40 to 140 deg F
  • Direct transfer of heat from PCB to the casing to maximize lifetime and reliability
  • Easy installation with included mechanical assembly kit while maintaining enclosure rating up to UL type 4X
  • Maximum lighting for control panels with 578 to 2351 Lumens and 5000 K color temperature
  • Linear drive circuit with no flicker or high frequency electronic noise
  • Easy field angle adjustment with mounting bracket
  • Wide beam optics with 100 deg angle of illumination
IDW_DOCUMENT_6fd9c4fc72479d8cb85137c143238fe864b95a3232fc96fd37ccbb84e0f67cc8
Hoffman_LEDHL24V24_Installation_Sheet
IDW_DOCUMENT_599e8b16741c7b144a745b8f545d7a4019543c8671698a6f636b82229fb3f3a3
Qty Unit price
Ea
1 $848.00
