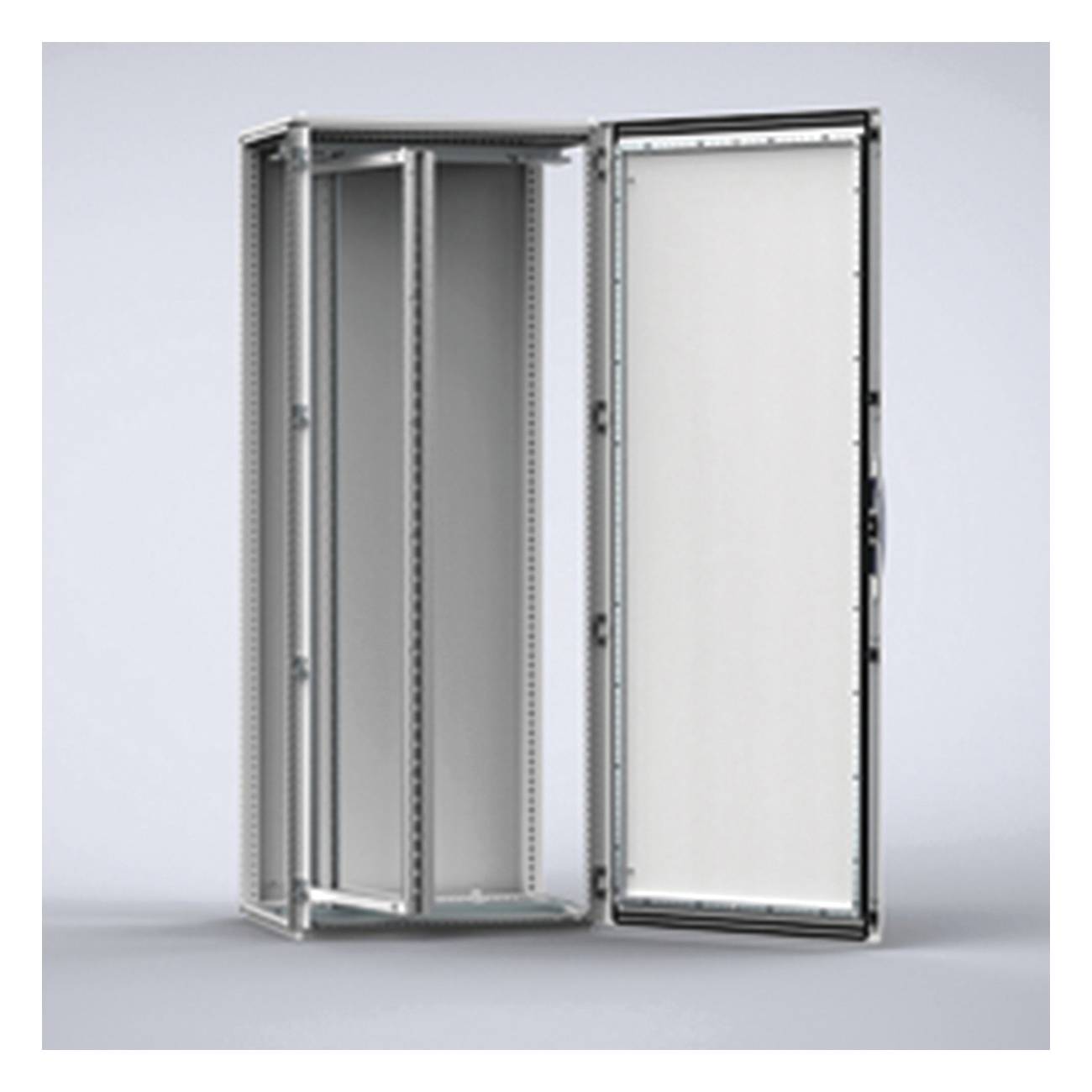

nVent HOFFMAN ESFC366 Full Height Swing Frame With 130 deg Hinge, 65.63 in H x 19.65 in W x 3.15 in D, For Use With 36U 1800 mm H Combinable and Compact Floor Standing Enclosure, 14 ga Mild Steel

Short Description

Full Height Swing Frame for 19 in components allowing left and right hand opening. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the Swing Frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated 19 in vertical profiles for direct earthing of the mounted components. Standard equipped with 130 deg hinges (180 deg hinges not applicable for 600 mm wide enclosures). Can also be mounted on the side of 600 mm deep floor standing enclosures. For steel, combinable enclosures use transversal support bars ESFB in combination with VBD if required. Adjustable in depth by steps of 12.5 mm.

nVent HOFFMAN Swing Frame, Full Height, Series: ESFC, 19.65 in Width, 3.15 in Depth, 65.63 in Height, For Use With: 36U 1800 mm H Combinable and Compact Floor Standing Enclosure, 14 ga Mild Steel, Zinc Plated, Unpainted
MFG #: ESFC366

EECO #: HOESFC366

Brand: nVent HOFFMAN
UPC #: 783510480431
Attributes
Features
Documents
Product Information
Attributes
Color
Unpainted
Finish
Zinc Plated
UNSPSC
39121321
Material
14 ga Mild Steel
Application
Controls and Drives, Factory Automation and Process Control Applications
Type
Full Height
Depth
3.15
Width
19.65
Height
65.63
Series
ESFC
Includes
Full Height Swing Frames; Mounting Components and Instruction Manual
Warranty
1 year
Suitable For Use With
36U 1800 mm H Combinable and Compact Floor Standing Enclosure
Features
  • A swing frame for 19 in equipment that provides additional mounting space for such equipment, as well as rear access to the fitted components and equipment once opened
  • Additional surface for the installation of 19 in equipment, within a hinged frame, the frame can be mounted within enclosures from 600 mm in width and to the desired height
  • The frame allows customers to install equipment and components into floor standing enclosures efficiently by maximizing the installation space available
  • Access can be gained to the front and rear of the equipment installed in the frame, as well as to the components installed behind on the mounting plate, when the frame is opened
  • 1800 N (405), supplied with a self-positioning device
  • Two 3 mm double bit locks
