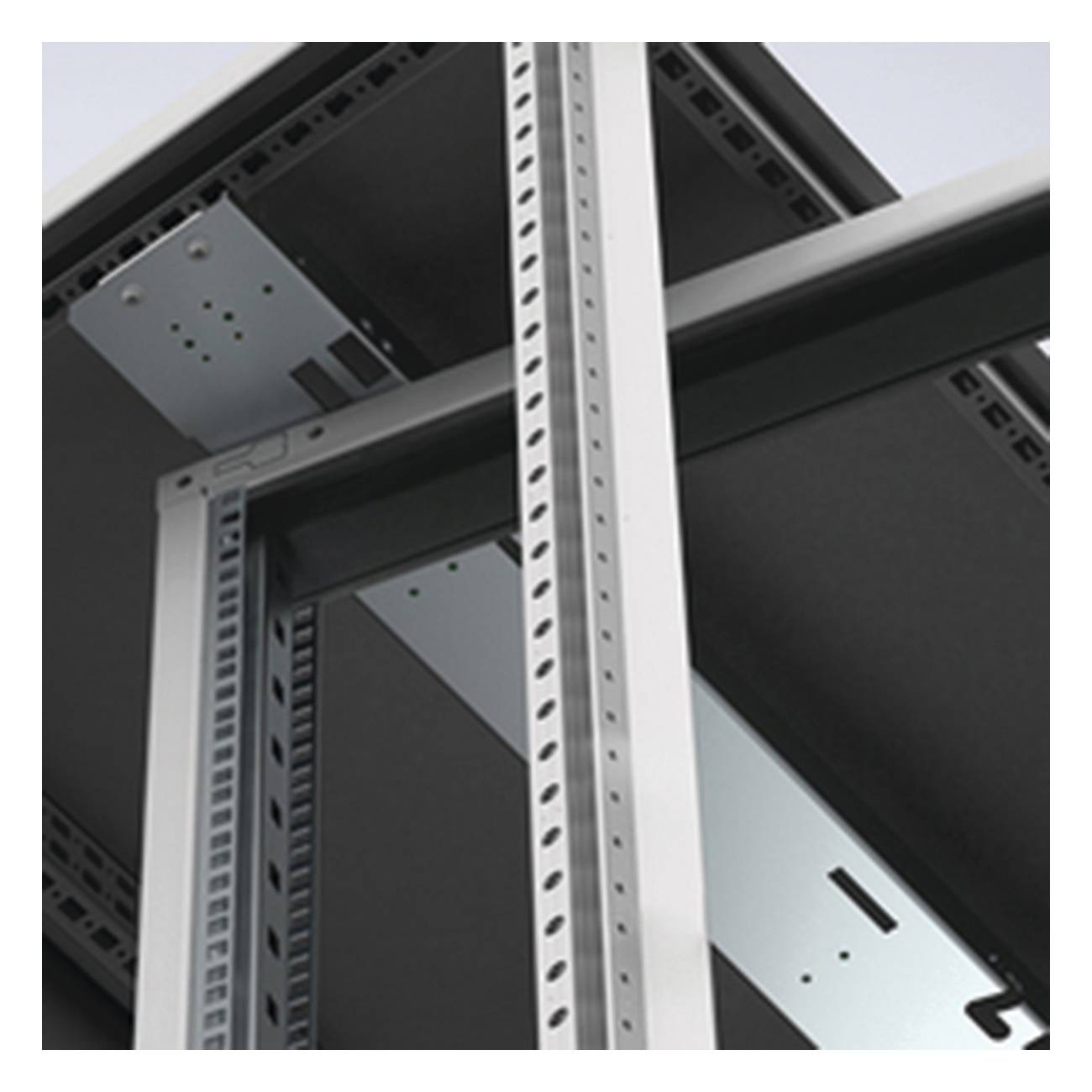

nVent HOFFMAN ESFB10 Swing Frame Transversal Support Bar, For Use With 1000 W IEC Enclosure, 11 ga Mild Steel, Unpainted
Share Share Print Print
nVent

nVent HOFFMAN ESFB10 Swing Frame Transversal Support Bar, For Use With 1000 W IEC Enclosure, 11 ga Mild Steel, Unpainted

Short Description

For full height mounting of swing frames in steel, combinable and compact enclosures. When partial height mounting is required use the ESFB in combination with CLPK or CLPF. The swing frames can be mounted both left and right hand opening. One man installation with integrated safety catch which holds the swing frame in the mounting position (130 deg hinge). Pre-punched holes for mounting a door switch (DSW01) is provided in the top swing frame support with 600 mm W and with ESFS or ESFM swing frames.

nVent HOFFMAN Support Bar, Swing Frame Transversal, Series: ESF, For Use With: 1000 W IEC Enclosure, 11 ga Mild Steel, Zinc Plated, Unpainted, 37.8 in W x 4.04 in D x 2.4 in H Dimensions
MFG #: ESFB10

EECO #: HOESFB10

Brand: nVent HOFFMAN
UPC #: 783510480349
Attributes
Features
Documents
Product Information
Attributes
Color
Unpainted
Finish
Zinc Plated
UNSPSC
39121302
Material
11 ga Mild Steel
Application
Controls and Drives, Factory Automation and Process Control
Type
Swing Frame Transversal
Series
ESF
Includes
Mounting Component and Instruction Manual
Warranty
1 year
Dimensions
37.8 in W x 4.04 in D x 2.4 in H
Suitable For Use With
1000 W IEC Enclosure
Features
  • The support bars allow for partial or full height swing frame mounting and also allows for the mounting of additional accessories
  • Zinc plated transversal support bars used in the top and the bottom of floor standing enclosures in width, in order to mount 19 in swing frames
  • The support bars are fixed to the enclosures frame in width, allowing for full or partial height swing frame mounting, that is adjustable in depth of increments of 25 mm
  • The support bars are secured to the enclosures frame ensuring for a strong fixation, even in 1000 mm wide enclosures, in addition they allow for the mounting of additional accessories such as a swing frame door stop, SFD, or a door switch, D
  • Click-in profiles, CLPK are required to mount partial height swing frames
  • Support bars (ESFB) 600 mm wide can also be mounted directly into a 1200 mm wide enclosure by means of a VBD, support bars (ESFB) 800 mm wide can also be mounted directly in 1600 mm wide enclosures
