6 x 6 x 6, Hoffman D666IS Junction Box, NEMA 12, IP55, Steel, 16 Gauge, Unflanged, ,1-Door
Share Share Print Print
nVent

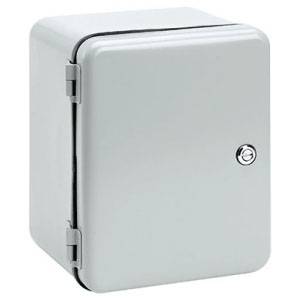

6 x 6 x 6, Hoffman D666IS Junction Box, NEMA 12, IP55, Steel, 16 Gauge, Unflanged, ,1-Door

Short Description

6" x 6" x 6", NEMA 12, IP55, 16 Gauge ANSI 61 Gray Polyester Powder Painted Mild Steel, 1-Door, Unflanged, Junction Box with Lift-Off Hinged and 1/4 Turn Latch

Junction Box; Type 1-Door; Height 6 Inch; Width 6 Inch; Depth 6 Inch; Material Mild Steel; Material Specification 16 Gauge; Finish Polyester Powder Painted; Color ANSI 61 Gray; Enclosure NEMA 12, IP55; Cover Type Lift-Off Hinged, Oil Resistant Gasketed, 1/4 Turn Latch; Service Type Indoor; Approval UL 508A, CUL, CSA C22.2; RoHS/Reach Compliant; Back Panel A6P6, A6P6G; Applicable Standard IEC 60529

MFG #: D666IS

EECO #: HOD666IS

Brand: Hoffman
UPC #: 783510604509
Attributes
Features
Documents
Product Information
Attributes
Color
ANSI 61 Gray
Finish
Polyester Powder Painted
UNSPSC
39121332
Approval
UL 508A, CUL, CSA C22.2
Material
Mild Steel
Nema Rating
NEMA 12, IP55
Material Specification
16 Gauge
Depth
6 Inch
Height
6 Inch
Cover Type
Lift-Off Hinged, Oil Resistant Gasketed, 1/4 Turn Latch
Features
  • Removable Door with Unique Lift-Off Hinge
  • Oil Tight Quarter-Turn Slotted Latches
  • Oil-Resistant Gasket
  • Bonding Provision on Door
  • RoHS/Reach Compliant
nVent_Hoffman_00001_INST
nVent_Hoffman_00080_34_CAT
nVent_Hoffman_00189_1_2_SPEC
