nVent HOFFMAN CLPK400 Click-In Universal Mounting Profile, 2.91 in H x 13.9 in W x 1.02 in D, For Use With 400 mm W 2000 N Floor Standing Enclosure, 16 ga Mild Steel
Share Share Print Print
nVent

nVent HOFFMAN CLPK400 Click-In Universal Mounting Profile, 2.91 in H x 13.9 in W x 1.02 in D, For Use With 400 mm W 2000 N Floor Standing Enclosure, 16 ga Mild Steel

Short Description

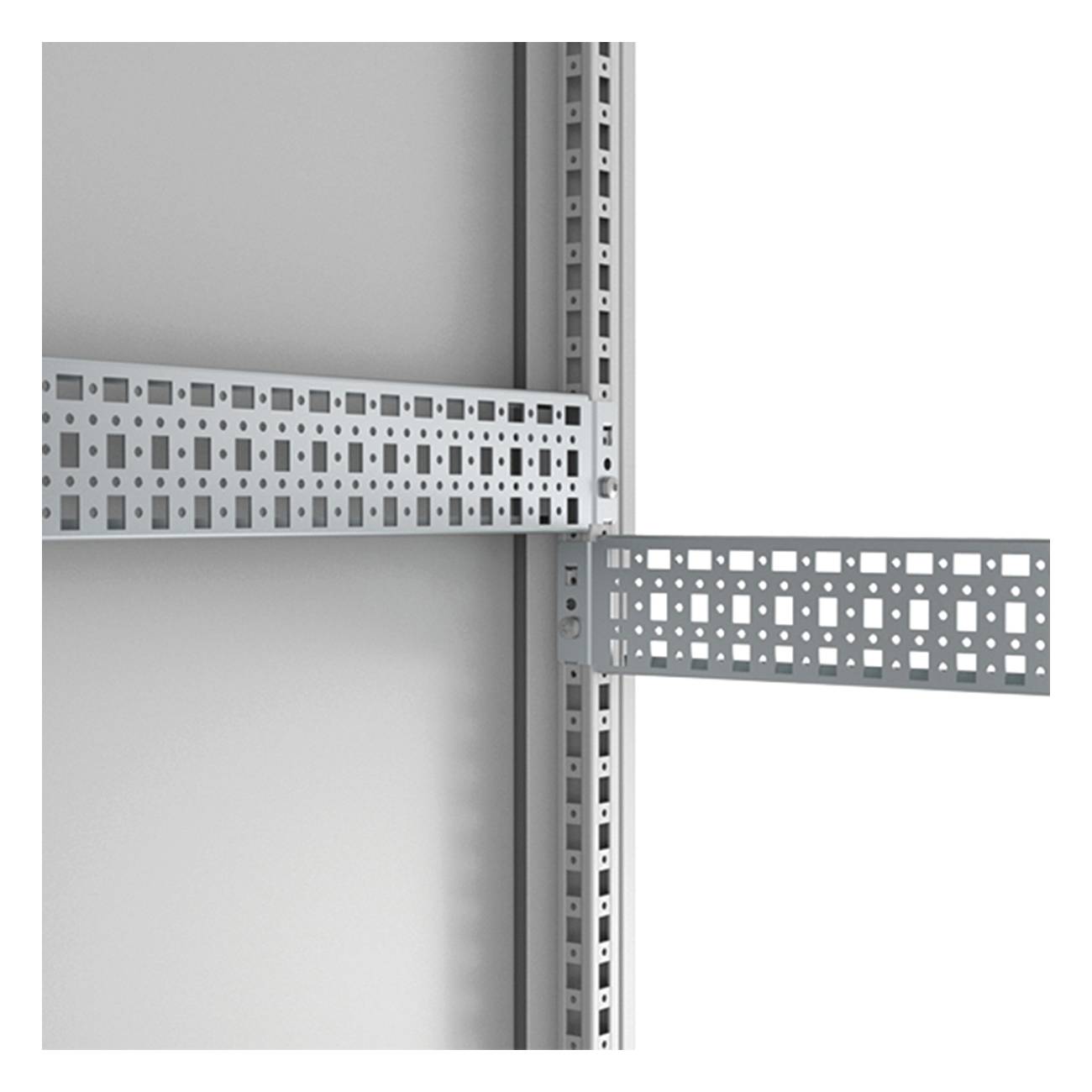

Universal profile for both depth and width fitting on the 25 mm DIN hole pattern of the enclosures frame or in combination with the CLPF and VB profiles. The 75 mm wide profile is equipped with three rows of holes of which one is turned 90 deg. This makes it possible to mount the CLPF profiles in both directions. The CLPK can be secured by the use of self-tapping screws.

nVent HOFFMAN Mounting Profile, Click-In Universal, Series: CLPK, 13.9 in Width, 1.02 in Depth, 2.91 in Height, For Use With: 400 mm W 2000 N Floor Standing Enclosure, 16 ga Mild Steel, Zinc Plated, Unpainted
MFG #: CLPK400

EECO #: HOCLPK400

Brand: nVent HOFFMAN
UPC #: 783510459888
Attributes
Features
Documents
Product Information
Attributes
Color
Unpainted
Finish
Zinc Plated
UNSPSC
39121321
Material
16 ga Mild Steel
Application
Controls and Drives, Factory Automation and Process Control Applications
Type
Click-In Universal
Depth
1.02
Width
13.9
Height
2.91
Series
CLPK
Includes
Mounting Components and Instruction Manual
Warranty
1 year
Suitable For Use With
400 mm W 2000 N Floor Standing Enclosure
Features
  • Additional accessories and electrical equipment can be mounted quickly and easily exactly where needed by using these click-in mounting profiles
  • Click-in mounting profiles can be installed using the interior hole pattern of a floor standing enclosure
  • Click-in mounting profiles can be fixed in all directions extending the enclosures interior profiles to support enclosure accessories and electrical components
  • The profiles do not require additional brackets as they are fixed directly to the enclosures frame
  • Accessories and electrical components can be installed exactly where required creating the best enclosure solution possible, the direct fixation reduces the mounting time required
