nVent HOFFMAN CLPF2000 Snap-Line Mounting Profile, 1.57 in H x 75.77 in W x 0.98 in D, For Use With 2000 mm Floor Standing Enclosure, 16 ga Mild Steel
Share Share Print Print
nVent

nVent HOFFMAN CLPF2000 Snap-Line Mounting Profile, 1.57 in H x 75.77 in W x 0.98 in D, For Use With 2000 mm Floor Standing Enclosure, 16 ga Mild Steel

Short Description

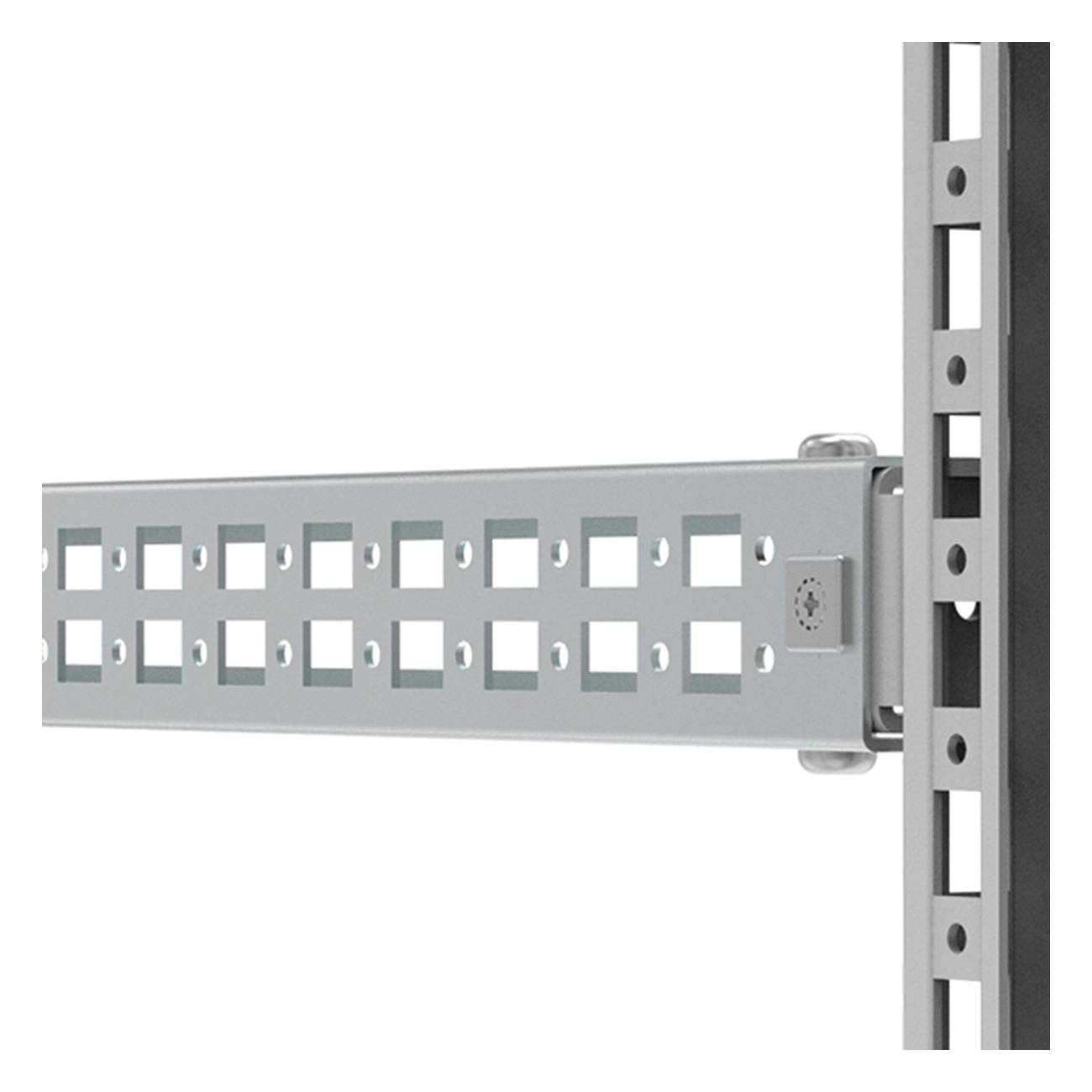

The CLPF profile system is a 40 mm wide and 25 mm high profile, which can be mounted in all directions on the enclosures frame. It can also be used in combination with the CLPK and the VB profiles. By turning the profile it can be used as a standard CP20/40 profile in combination with GLM 40/6 sliding nut, to mount installation material which needs adjusting in depth. The profiles, when mounted onto the enclosures frame are flush with the enclosures profiles. Two rows of hole patterns for cage nut fixing and self-tapping screws are provided. For 90 mm wide profiles two profiles can be mounted next to each other.

nVent HOFFMAN Mounting Profile, Snap-Line, Series: CLPF, 75.77 in Width, 0.98 in Depth, 1.57 in Height, For Use With: 2000 mm Floor Standing Enclosure, 16 ga Mild Steel, Zinc Plated, Unpainted
MFG #: CLPF2000

EECO #: HOCLPF2000

Brand: nVent HOFFMAN
UPC #: 783510459550
Attributes
Features
Documents
Product Information
Attributes
Color
Unpainted
Finish
Zinc Plated
UNSPSC
39121321
Material
16 ga Mild Steel
Application
Controls and Drives, Factory Automation and Process Control Applications
Type
Snap-Line
Depth
0.98
Width
75.77
Height
1.57
Series
CLPF
Includes
Mounting Components and Instruction Manual
Warranty
1 year
Suitable For Use With
2000 mm Floor Standing Enclosure
Features
  • Mounting profiles can be installed using the interior hole pattern of a floor standing enclosure
  • Mounting profiles can be fixed in all directions extending the enclosures interior profiles to support enclosure accessories and electrical components
  • Customers can install accessories and electrical components exactly where they desire, creating the best enclosure solution possible
