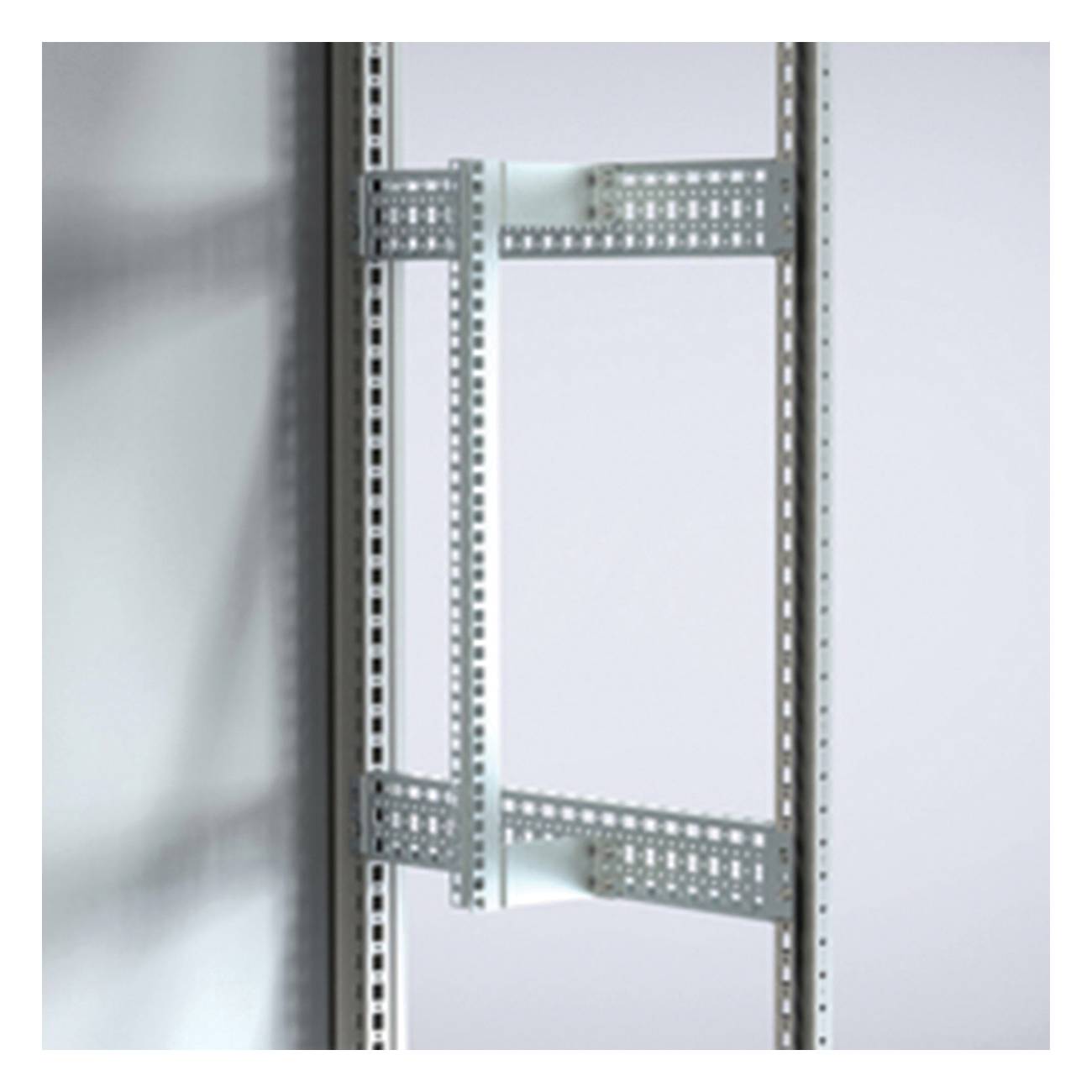

nVent HOFFMAN CIPP18 Partial Height Vertical Mounting Profile, 62.99 in H x 1.77 in W x 1.14 in D, For Use With 18U Floor Standing Enclosure, 14 ga Mild Steel
Share Share Print Print
nVent

nVent HOFFMAN CIPP18 Partial Height Vertical Mounting Profile, 62.99 in H x 1.77 in W x 1.14 in D, For Use With 18U Floor Standing Enclosure, 14 ga Mild Steel

Short Description

Partial height 19-inch vertical profiles to achieve 482.6 mm (19-inch) mounting requirements on all sides. Adjustable in depth in steps of 25 mm using the CLPK click-in profiles.

nVent HOFFMAN Mounting Profile, Partial Height Vertical, Series: CIPP, 1.77 in Width, 1.14 in Depth, 62.99 in Height, For Use With: 18U Floor Standing Enclosure, 14 ga Mild Steel, Zinc Plated, Unpainted
MFG #: CIPP18

EECO #: HOCIPP18

Brand: nVent HOFFMAN
UPC #: 783510458959
Attributes
Features
Documents
Product Information
Attributes
Color
Unpainted
Finish
Zinc Plated
UNSPSC
39121334
Material
14 ga Mild Steel
Application
Controls and Drives, Factory Automation and Process Control Applications
Type
Partial Height Vertical
Depth
1.14
Width
1.77
Height
62.99
Series
CIPP
Warranty
1 year
Suitable For Use With
18U Floor Standing Enclosure
Features
  • These partial profiles, that can be adjustable in height and depth, allow for the installation of 19 in equipment, while customers maintain access to the components installed on the mounting plate within the enclosure
  • Partial height zinc plated steel profiles with front and side hole patterns that are spaced 482.6 mm apart for floor standing enclosures
  • The profiles provide a quick and easy solution in achieving 19 in spacing for only a section of floor standing enclosures
  • As the partial profiles are mounted in the depth of the enclosure either by using click-in profiles, CLPK or mounting profiles, CLPF, the 19 in profiles can be adjusted in height, the partial height profiles allow customers to maintain access
  • Either 19 in brackets, CIC or width reducers, CIWR are required
  • To be used with brackets CIC in 800 mm wide enclosures
  • Partial height 19 in vertical profiles to achieve 482.6 mm mounting requirements on all sides
  • Adjustable in depth in steps of 25 mm by using the CLPK click-in profiles
nVent_HOFFMAN_CIPP06_Manual
nVent_HOFFMAN_CIPP06_Specification_Sheet
nVent_HOFFMAN_EHTC2125G_Warranty
