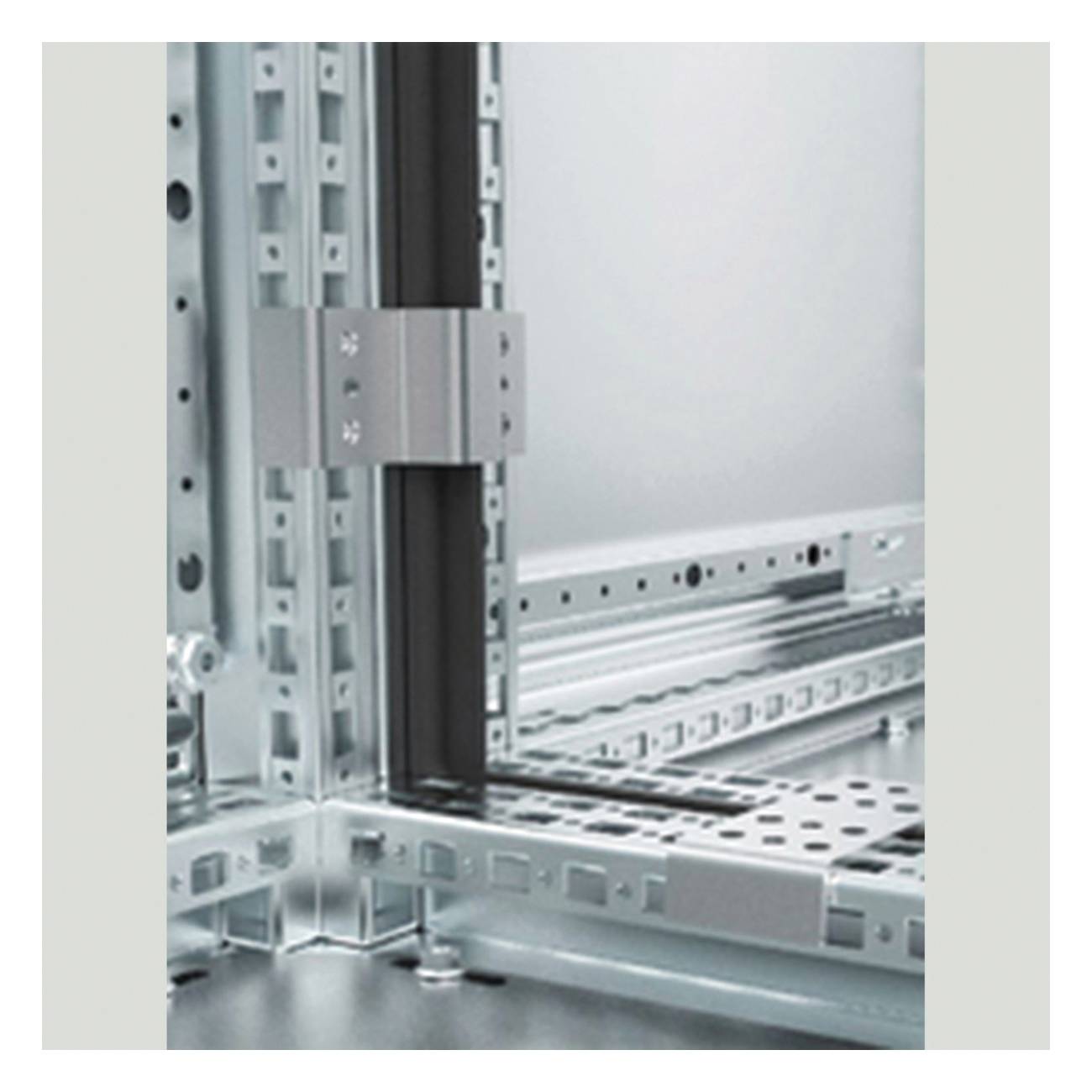

nVent HOFFMAN CCI08IP66 Internal Baying Kit, For Use With IEC Enclosure, 11 ga Mild Steel, Unpainted
Share Share Print Print
nVent

nVent HOFFMAN CCI08IP66 Internal Baying Kit, For Use With IEC Enclosure, 11 ga Mild Steel, Unpainted

Short Description

Baying brackets provide a rigid reinforcement of the enclosure assembly. The correct spacing between the enclosures is assured. Tools are not required for installation.

nVent HOFFMAN Baying Kit, Internal, Series: CCI, For Use With: IEC Enclosure, 11 ga Mild Steel, Zinc Plated, Unpainted, 3.74 in W x 4.02 in D x 2.52 in H Dimensions
MFG #: CCI08IP66

EECO #: HOCCI08IP66

Brand: nVent HOFFMAN
UPC #: 783510456757
Attributes
Features
Documents
Product Information
Attributes
Color
Unpainted
Finish
Zinc Plated
UNSPSC
39121302
Material
11 ga Mild Steel
Application
Controls and Drives, Factory Automation and Process Control
Type
Internal
Series
CCI
Includes
Internal Baying Bracket, Mounting Component and Instruction Manual
Warranty
1 year
Dimensions
3.74 in W x 4.02 in D x 2.52 in H
Suitable For Use With
IEC Enclosure
Features
  • Baying brackets provide a rigid reinforcement of the enclosure assembly
  • The correct spacing between the enclosures is assured
  • These baying brackets provide a rigid reinforcement of the enclosure assembly
  • A baying kit including snap-lines, mounted on the interior of the profiles, to allow for side-to-side baying of combinable floor standing enclosures
  • Tool-free assembly without the need to remove the door and rear panel
  • Reduction of assembly time
  • These brackets should not be used in combination with a separation plate or mounting plate if mounted on the side of the enclosure, the external baying kit should be used under these circumstances
  • Tools are not required for installation
  • The correct spacing between the enclosures is assured to fit perfectly with the combining kit BK-IP66
  • The brackets are manufactured from 316L stainless steel
