nVent HOFFMAN CCE06 External Baying Kit, For Use With IEC Enclosure, 11 ga Mild Steel, Unpainted
Share Share Print Print
nVent

nVent HOFFMAN CCE06 External Baying Kit, For Use With IEC Enclosure, 11 ga Mild Steel, Unpainted

Short Description

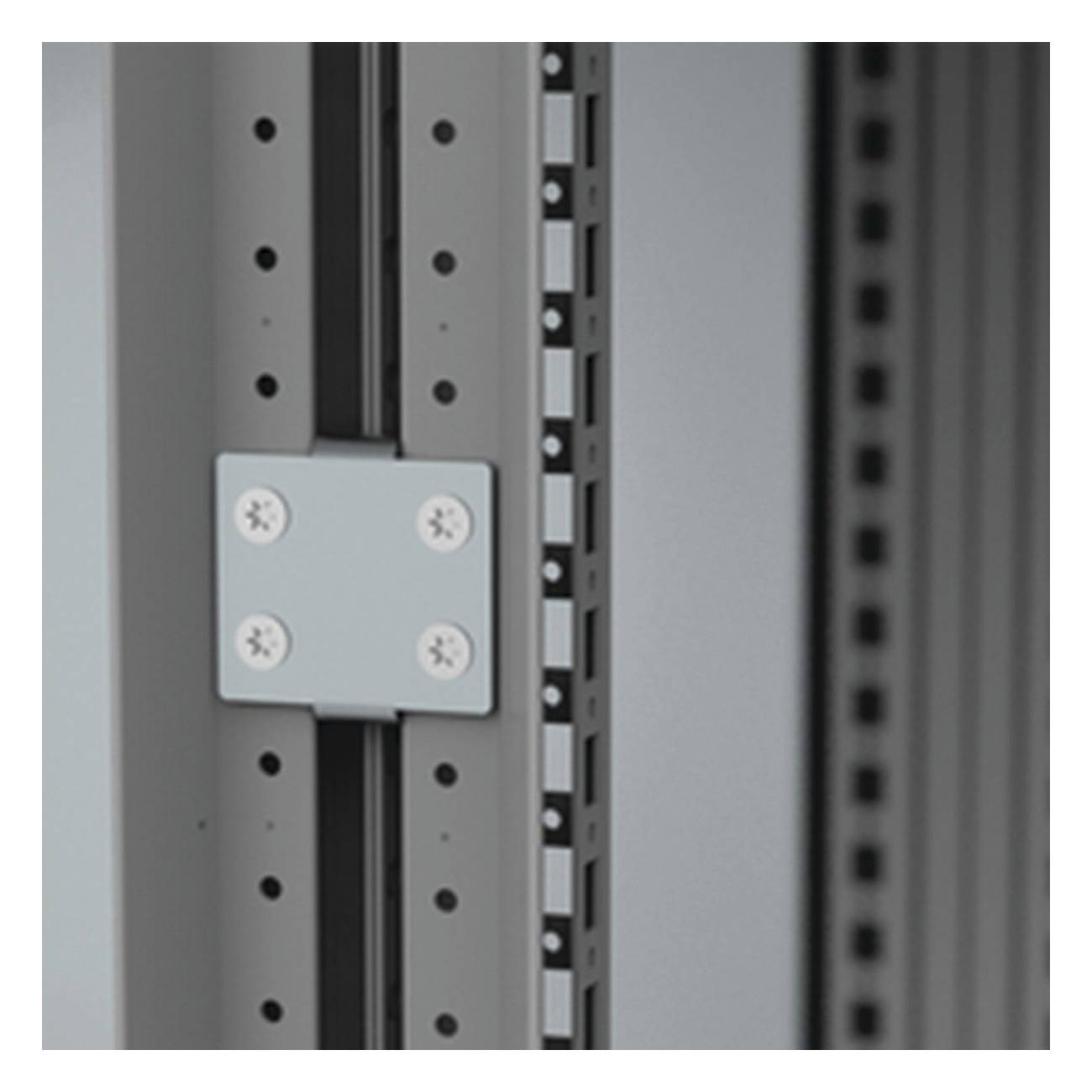

Brackets mounted on the outside hole pattern of the frame ensuring a strong and three dimensional alignment of the mild steel bayed enclosures with an auto spacer function. This method of baying enclosures also has the advantage of creating a direct earthing connection between the enclosure frames.

nVent HOFFMAN Baying Kit, External, Series: CCE, For Use With: IEC Enclosure, 11 ga Mild Steel, Zinc Plated, Unpainted, 2.24 in W x 0.79 in D x 2.24 in H Dimensions
MFG #: CCE06

EECO #: HOCCE06

Brand: nVent HOFFMAN
UPC #: 783510456238
Attributes
Features
Documents
Product Information
Attributes
Color
Unpainted
Finish
Zinc Plated
UNSPSC
39121302
Material
11 ga Mild Steel
Application
Controls and Drives, Factory Automation and Process Control
Type
External
Series
CCE
Includes
Wall Fixing Bracket, Mounting Component and Instruction Manual
Warranty
1 year
Dimensions
2.24 in W x 0.79 in D x 2.24 in H
Suitable For Use With
IEC Enclosure
Features
  • Enclosures can be bayed easily, resulting in proper alignment, without consuming space inside the enclosure
  • A baying kit, mounted on the exterior corners of the profiles, to allow for side-to-side baying of mild steel combinable floor standing enclosures
  • The brackets do not consume space inside the enclosure and aligns the enclosure in height
  • These brackets allow for mounting any other accessory without conflicting space and ensures proper alignment in height
  • A negative of these brackets is that the rear panel and door should be removed before mounting, to avoid this, an internal baying kit is available
  • These brackets should not be used in combination with the small partial doors
