nVent HOFFMAN CCB02 Heavy Duty Carrier Bar, For Use With IEC Enclosure, 11 ga Mild Steel, Unpainted
Share Share Print Print
nVent

nVent HOFFMAN CCB02 Heavy Duty Carrier Bar, For Use With IEC Enclosure, 11 ga Mild Steel, Unpainted

Short Description

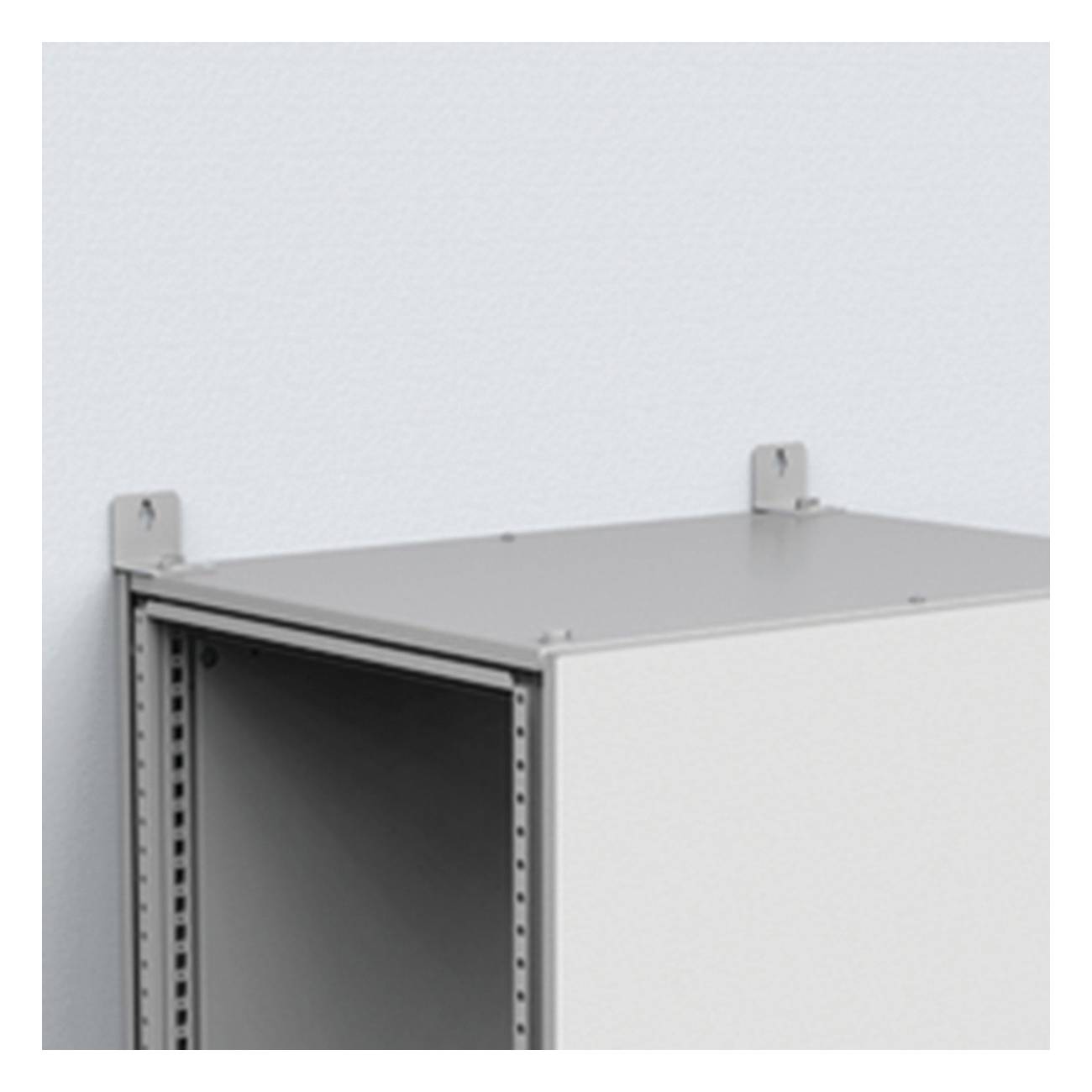

To fix the enclosure to the wall by using M12 screws on the top of the enclosure. Prevents the enclosure from tipping over e.g. on board ships. Compatible with combinable and compact mild steel floor standing enclosure ranges.

nVent HOFFMAN Carrier Bar, Heavy Duty, Series: CCB, For Use With: IEC Enclosure, 11 ga Mild Steel, Zinc Plated, Unpainted, 2.6 in W x 2.68 in D x 2.48 in H Dimensions
MFG #: CCB02

EECO #: HOCCB02

Brand: nVent HOFFMAN
UPC #: 783510456177
Attributes
Features
Documents
Product Information
Attributes
Color
Unpainted
Finish
Zinc Plated
UNSPSC
39121302
Material
11 ga Mild Steel
Application
Controls and Drives, Factory Automation and Process Control
Type
Heavy Duty
Series
CCB
Warranty
1 year
Dimensions
2.6 in W x 2.68 in D x 2.48 in H
Suitable For Use With
IEC Enclosure
Features
  • These brackets allow for fixing the enclosure to a vertical surface, in situations where it is top heavy, or when floor fixation is not adequate to prevent it from falling over
  • External zinc plated wall mounting brackets for floor standing enclosures
  • The wall mounting brackets provide an additional fixation method to a vertical surface
  • Floor standing enclosures can be easily supported in situations when the enclosure is unstable due to being top heavy and when the floor fixation method is not enough
nVent_HOFFMAN_CCB02_Manual
nVent_HOFFMAN_CCB02_Specification_Sheet
nVent_HOFFMAN_EHTC2125G_Warranty
