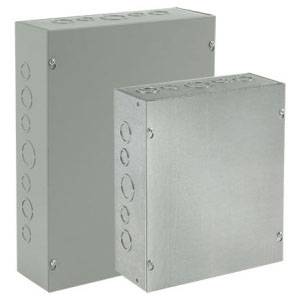

6 x 6 x 3, Hoffman ASG6X6X3 Electrical Enclosure, NEMA 1, IP30, Steel, 16 Gauge, Unflanged, ,1-Door
Share Share Print Print
nVent

6 x 6 x 3, Hoffman ASG6X6X3 Electrical Enclosure, NEMA 1, IP30, Steel, 16 Gauge, Unflanged, ,1-Door

Short Description

6" x 6" x 3", 6-Knockouts, NEMA 1, IP30, 16 Gauge ANSI 61 Gray Galvanized Steel, Flush Mount, 1-Door, Unflanged, Electrical Enclosure with Flat and Screw-On

Electrical Enclosure; Type Unflanged; Height 6 Inch; Width 6 Inch; Depth 3 Inch; Material Steel; Material Specification 16 Gauge; Finish Galvanized; Color ANSI 61 Gray; Enclosure NEMA 1, IP30; Mounting Flush Mount; Cover Type Flat, Screw-On; Knockout Location (3) Sides, (3) Ends; Number of Knockouts 6; Knockout Size (2) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Sides, (2) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Ends; Approval UL 50/50E, CUL, CSA C22.2; RoHS/Reach Compliant; Number of Cover Screws 2; Applicable Standard IEC 60529; Application Commercial, Industrial

MFG #: ASG6X6X3

EECO #: HOASG6X6X3

Brand: Hoffman
UPC #: 783510416096
Attributes
Features
Documents
Product Information
Attributes
Color
ANSI 61 Gray
Finish
Galvanized
UNSPSC
39121324
Approval
UL 50/50E, CUL, CSA C22.2
Material
Steel
Nema Rating
NEMA 1, IP30
Knockout Size
(2) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Sides, (2) (1/2 to 3/4 Inch), (1) (3/4 to 1 Inch) Concentric Knockout Ends
Material Specification
16 Gauge
Depth
3 Inch
Height
6 Inch
Cover Type
Flat, Screw-On
Knockout Location
(3) Sides, (3) Ends
Features
  • Unique Keyhole Screw Slots in the Cover
  • Flat, Removable Cover Fastened with Plated Steel Screw
  • Provision for Grounding
  • Mounting Hole on Back of Box
  • RoHS/Reach Compliant
