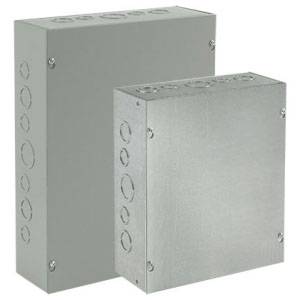

8 x 6 x 6, Hoffman ASE8X6X6NK Electrical Enclosure, NEMA 1, IP30, Steel, 16 Gauge, Unflanged, ,1-Door

Short Description

8" x 6" x 6", NEMA 1, IP30, 16 Gauge ANSI 61 Gray Polyester Powder Painted Steel, Flush Mount, 1-Door, Unflanged, Electrical Enclosure with Flat and Screw-On

Electrical Enclosure; Type Unflanged; Height 8 Inch; Width 6 Inch; Depth 6 Inch; Material Steel; Material Specification 16 Gauge; Finish Polyester Powder Painted; Color ANSI 61 Gray; Enclosure NEMA 1, IP30; Mounting Flush Mount; Cover Type Flat, Screw-On; Approval UL 50/50E, CUL, CSA C22.2; RoHS/Reach Compliant; Number of Cover Screws 2; Applicable Standard IEC 60529; Application Commercial, Industrial

MFG #: ASE8X6X6NK

EECO #: HOASE8X6X6NK

Brand: Hoffman
UPC #: 783510494391
Attributes
Features
Documents
Product Information
Attributes
Color
ANSI 61 Gray
Finish
Polyester Powder Painted
UNSPSC
39121324
Approval
UL 50/50E, CUL, CSA C22.2
Material
Steel
Nema Rating
NEMA 1, IP30
Material Specification
16 Gauge
Depth
6 Inch
Height
8 Inch
Cover Type
Flat, Screw-On
Features
  • Unique Keyhole Screw Slots in the Cover
  • Flat, Removable Cover Fastened with Plated Steel Screw
  • Provision for Grounding
  • Mounting Hole on Back of Box
  • RoHS/Reach Compliant
nVent_Hoffman_00080_752_754_755_CAT
nVent_Hoffman_00168_1_3_SPEC
nVent_Hoffman_00982_1_4_CAD
