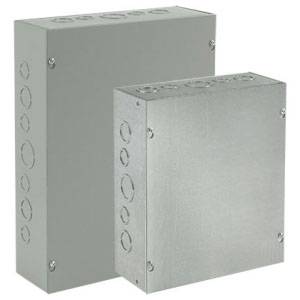

36 x 36 x 8, Hoffman ASE36X36X8NK Electrical Enclosure, NEMA 1, IP30, Steel, 12 Gauge, Unflanged, ,1-Door
Share Share Print Print
nVent

36 x 36 x 8, Hoffman ASE36X36X8NK Electrical Enclosure, NEMA 1, IP30, Steel, 12 Gauge, Unflanged, ,1-Door

Short Description

36" x 36" x 8", NEMA 1, IP30, 12 Gauge ANSI 61 Gray Polyester Powder Painted Steel, Flush Mount, 1-Door, Unflanged, Electrical Enclosure with Flat and Screw-On

Electrical Enclosure; Type Unflanged; Height 36 Inch; Width 36 Inch; Depth 8 Inch; Material Steel; Material Specification 12 Gauge; Finish Polyester Powder Painted; Color ANSI 61 Gray; Enclosure NEMA 1, IP30; Mounting Flush Mount; Cover Type Flat, Screw-On; Approval UL 50/50E, CUL, CSA C22.2; RoHS/Reach Compliant; Number of Cover Screws 8; Applicable Standard IEC 60529; Application Commercial, Industrial

MFG #: ASE36X36X8NK

EECO #: HOASE36X36X8NK

Brand: Hoffman
UPC #: 783510497392
Attributes
Features
Documents
Product Information
Attributes
Color
ANSI 61 Gray
Finish
Polyester Powder Painted
UNSPSC
39121324
Approval
UL 50/50E, CUL, CSA C22.2
Material
Steel
Nema Rating
NEMA 1, IP30
Material Specification
12 Gauge
Depth
8 Inch
Height
36 Inch
Cover Type
Flat, Screw-On
Features
  • Unique Keyhole Screw Slots in the Cover
  • Flat, Removable Cover Fastened with Plated Steel Screw
  • Provision for Grounding
  • Mounting Hole on Back of Box
  • RoHS/Reach Compliant
nVent_Hoffman_00080_752_755_CAT
nVent_Hoffman_00168_1_4_SPEC
nVent_Hoffman_00974_1_4_CAD
