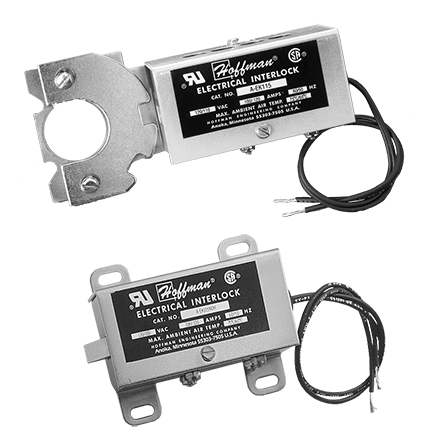

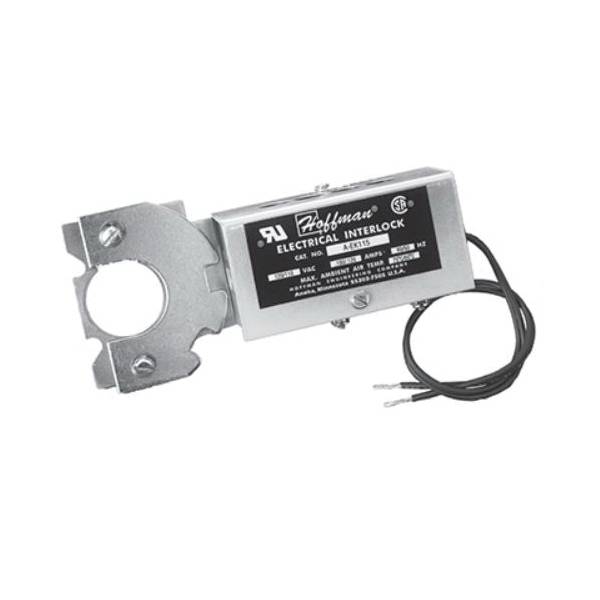

Hoffman AEK230 A80 AEK Style Electrical Interlock, For Use With Hoffman NEMA 12 Door Latching Mechanism Enclosures, 240 VAC, 60 Hz, 0.05/0.32A, Steel

Short Description

Provide positive internal safety lockout on electrical enclosures while the equipment is energized. Use catalog numbers AEK115, AEK230 and AEK460 are used with standard HOFFMAN door latching mechanisms. When energized, these interlocks prevent the door handle from being turned to open the door. Fit either clockwise or counter clockwise handles in the following enclosures, All two-door Type 4 and 12 enclosures, All Type 4X with 3-point latch enclosures, Free-standing Type 12 enclosures, All one-door Type 12 enclosures with latch kits installed.

Hoffman Electrical Interlock, AEK Style, Series: A80, For Use With: Hoffman NEMA 12 Door Latching Mechanism Enclosures, 240 VAC, 60 Hz, 0.05/0.32A, Steel, Zinc Plated, 6.19 in W x 1.81 in D
MFG #: AEK230

EECO #: HOAEK230

Brand: nVent HOFFMAN
UPC #: 783510268107
Attributes
Features
Documents
Product Information
Attributes
Finish
Zinc Plated
UNSPSC
39121321
Material
Steel
Application
For providing positive internal safety lockout on electrical enclosures while the equipment is energized
Type
AEK Style
Series
A80
Includes
Solenoid Assembly, Strike Plate/Bracket and Instructions
Dimensions
6.19 in W x 1.81 in D
Specifications
240 VAC, 60 Hz, 0.05/0.32A
Suitable For Use With
Hoffman NEMA 12 Door Latching Mechanism Enclosures
Features
  • Rugged steel construction and plated finish
  • Solenoids are rated for continuous duty and will stand up under heavy industrial use
  • Door handles and latching mechanisms are not included
