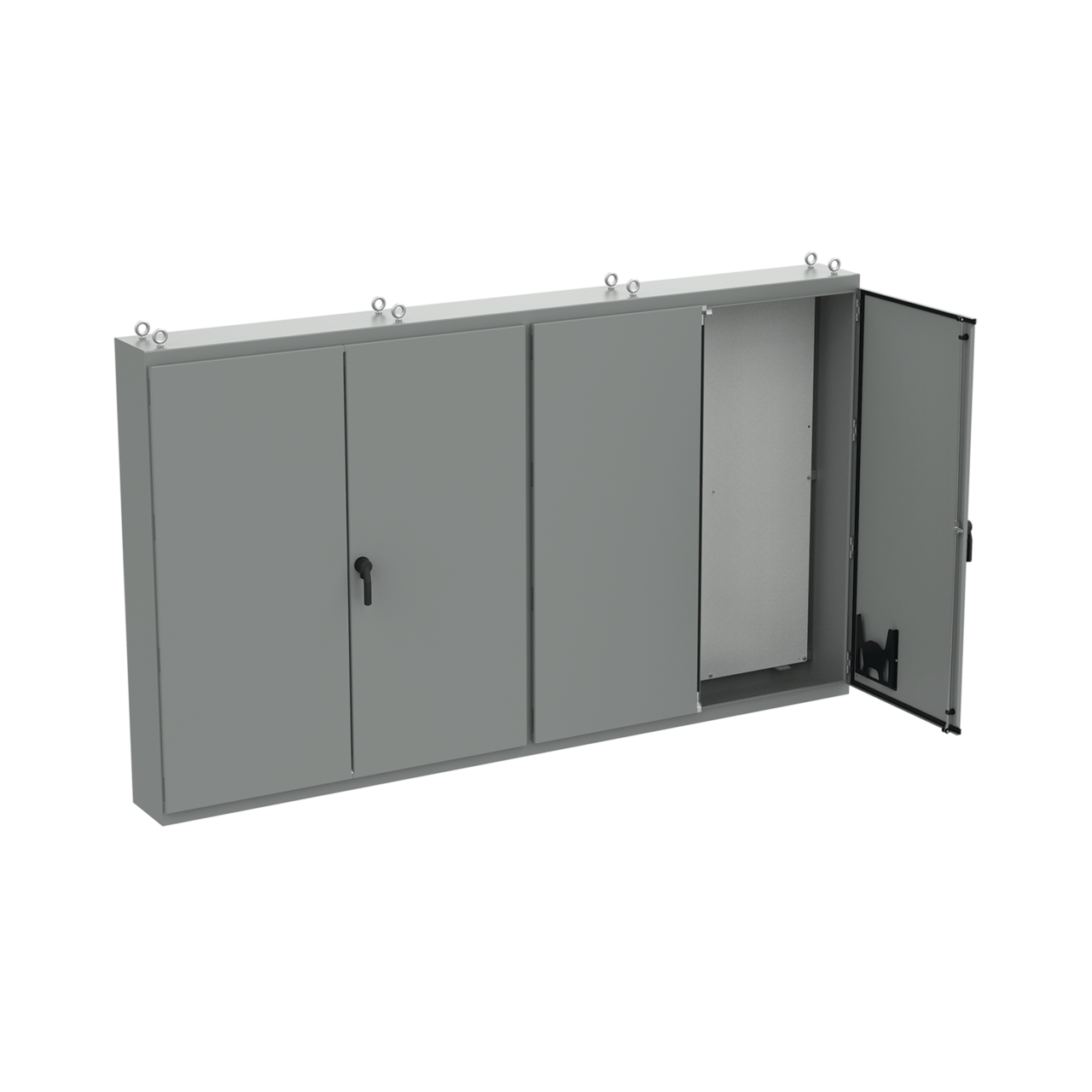

nVent HOFFMAN A86M4E20G A27 4-Door Enclosure, 86.12 in L x 149.19 in W x 20.12 in D, NEMA 12/IP55 NEMA Rating, Steel

Short Description

Enclosures are available with three, four or five doors for housing larger control systems in industrial environments.

nVent HOFFMAN Enclosure, 4-Door, Series: A27, 86.12 in Length, 149.19 in Width, 20.12 in Depth, NEMA 12/IP55, Hinged Cover, 70 in W Large x 78 in H Panel, Lock: 3-Point Latch/Padlock Handle, Freestanding Mount, Steel, Polyester Powder Painted, Gray
MFG #: A86M4E20G

EECO #: HOA86M4E20G

Brand: nVent HOFFMAN
UPC #: 783510389390
Attributes
Features
Documents
Product Information
Attributes
Color
Gray
Finish
Polyester Powder Painted
Length
86.12
UNSPSC
39121324
Material
Steel
Application
For housing larger control systems in industrial environments
Mounting Type
Freestanding
Type
4-Door
Depth
20.12
Width
149.19
Series
A27
Cover Type
Hinged
Panel Size
70 in W Large x 78 in H
Features
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Heavy steel back stiffeners maintain flatness and increase rigidity
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Overlapping, gasketed openings on 2-door center posts
  • At 2-door openings, gasketed overlapping doors eliminate need for center posts
  • Three-point latches operated by padlocking handle
  • Concealed, easy to remove hinges
  • Mechanical interlock standard on each enclosure with right hand door serving as master door, doors can be closed in any order
  • Large data pocket is high impact thermoplastic
  • Oil-resistant door gasket
  • Panel mounting studs
  • Bonding provision on door
  • Provisions for mounting fluorescent lights
  • 0.121 in steel
