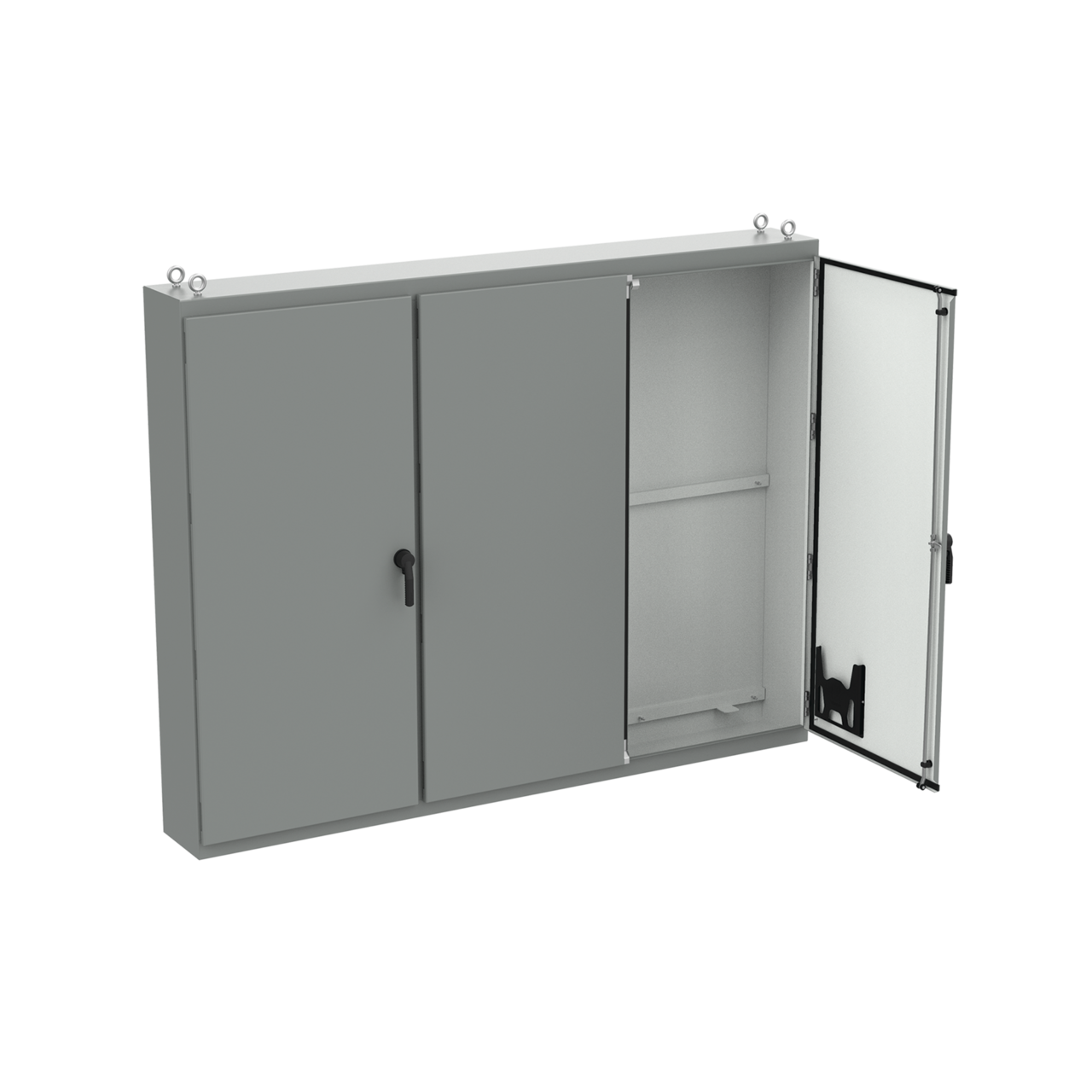

nVent HOFFMAN A86M3ELP A27 3-Door Enclosure, 86.12 in L x 112 in W x 14.12 in D, NEMA 12/IP55 NEMA Rating, Steel

Short Description

Enclosures are available with three, four or five doors for housing larger control systems in industrial environments.

nVent HOFFMAN Enclosure, 3-Door, Series: A27, 86.12 in Length, 112 in Width, 14.12 in Depth, NEMA 12/IP55, Hinged Cover, Lock: 3-Point Latch/Padlock Handle, Freestanding Mount, Steel, Polyester Powder Painted, White
MFG #: A86M3ELP

EECO #: HOA86M3ELP

Brand: nVent HOFFMAN
UPC #: 783510166816
Attributes
Features
Documents
Product Information
Attributes
Color
White
Finish
Polyester Powder Painted
Length
86.12
UNSPSC
39121324
Material
Steel
Application
For housing larger control systems in industrial environments
Mounting Type
Freestanding
Type
3-Door
Depth
14.12
Width
112
Series
A27
Warranty
1 Year
Cover Type
Hinged
Features
  • Seams continuously welded and ground smooth, no holes or knockouts
  • Heavy steel back stiffeners maintain flatness and increase rigidity
  • Heavy duty lifting eyes anchor into reinforced top on larger models
  • Overlapping, gasketed openings on 2-door center posts
  • At two door openings, gasketed overlapping doors eliminate need for center posts
  • Three-point latches operated by padlocking handle
  • Concealed, easy to remove hinges
  • Mechanical interlock standard on each enclosure with right hand door serving as master door, doors can be closed in any order
  • Large data pocket is high impact thermoplastic
  • Oil-resistant door gasket
  • Panel mounting studs
  • Bonding provision on doors
  • Provisions for mounting fluorescent lights
  • 0.121 in steel
